LY211L-TBMFS3 (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905) ; (9905- )LY212..IV ; (9905- )LY211,YY211..ST

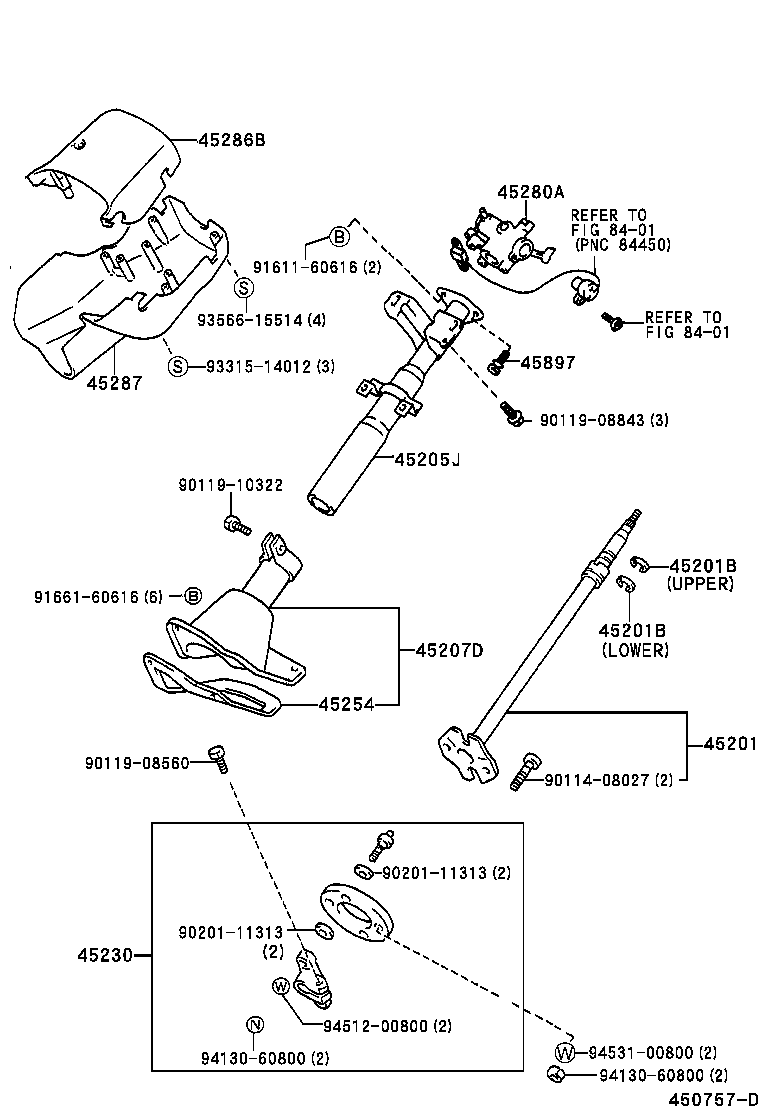

Click highlighted areas on diagram

diagram 45201 45201B 45201B 45205J 45207D 45230 45254 45280A 45286B 45287 45897 8401 8401 9011408027 9011908560 9011908843 9011910322 9020111313 9020111313 9161160616 9166160616 9331514012 9356615514 9413060800 9413060800 9451200800 9453100800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-26080

LY21#,YY211

 1
45201-26080

LY212..IV;LY211,YY211..ST

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

LY21#,YY211

T=1.20,LOWER

 1
90520-17042

LY21#,YY211

T=1.20,UPPER

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17269

LY21#,YY211

T=1.20,LOWER

 1
90520-17042

LY21#,YY211

T=1.20,UPPER

 1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-25122

LY212..IV;LY211,YY211..ST

 1
45205-25122

LY21#,YY211

 1
45207D - COVER SUB-ASSY, MAIN SHAFT JOINT
45207-25032

LY21#,YY211..LHD

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-25022

LY21#,YY211

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36100

LY21#,YY211..LHD

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45307-36210

LY212..IV;LY211,YY211..ST

 1
45307-36210

LY21#,YY211

 1
45286B - COVER, STEERING COLUMN, UPR
45286-37050B0

LY21#,YY211..LHD

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-37050B0

LY21#,YY211..LHD

BLUISH GRAY,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12030

LY212..IV;LY211,YY211..ST

 1
45897-12030

LY21#,YY211

 1
Common parts
90114-08027
90119-08560
90119-08843
90119-10322
90201-11313
91611-60616
91661-60616
93315-14012
93566-15514
94130-60800
94512-00800
94531-00800
Linked diagrams
8401
