LY211L-TBMFS3 (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L

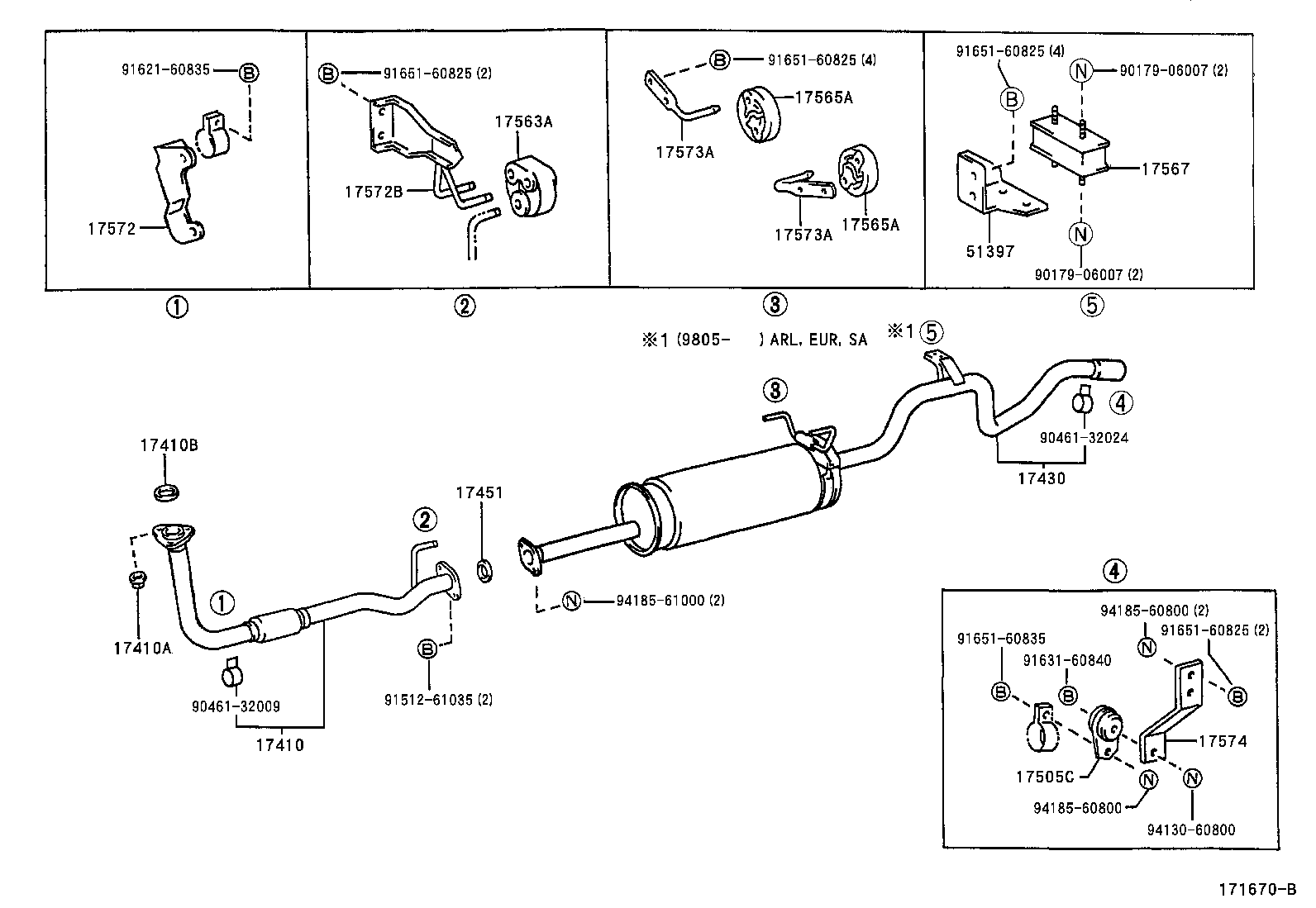

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17451 17505C 17563A 17565A 17565A 17567 17572 17572B 17573A 17573A 17574 51397 9017906007 9017906007 9046132009 9046132024 9151261035 9162160835 9163160840 9165160825 9165160825 9165160825 9165160825 9165160835 9413060800 9418560800 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-5B220

3L..LY211..GEN

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L,5L,3Y..LY21#,YY211

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

3L,5L..LY21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B750

3L..LY211..GEN

 1
17430-5B751

3L..LY211..GEN

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

3L,5L..LY21#

 2
17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-08009

3L,5L,3Y..LY21#,YY211

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-54030

3L,5L..LY21#;3Y..YY211..ST

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y..LY21#,YY211

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y..LY21#,YY211

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54460

3L,5L..LY21#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54220

3L,5L..LY21#;3Y..YY211..ST

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

3L,5L,3Y..LY21#,YY211

 2
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

3L,5L,3Y..LY21#,YY211

 2
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-54060

3L,5L,3Y..LY21#,YY211

 1
Common parts
90179-06007
90461-32009
90461-32024
91512-61035
91621-60835
91631-60840
91651-60825
91651-60835
94130-60800
94185-60800
94185-61000
