LY211L-TBMFS3 (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L

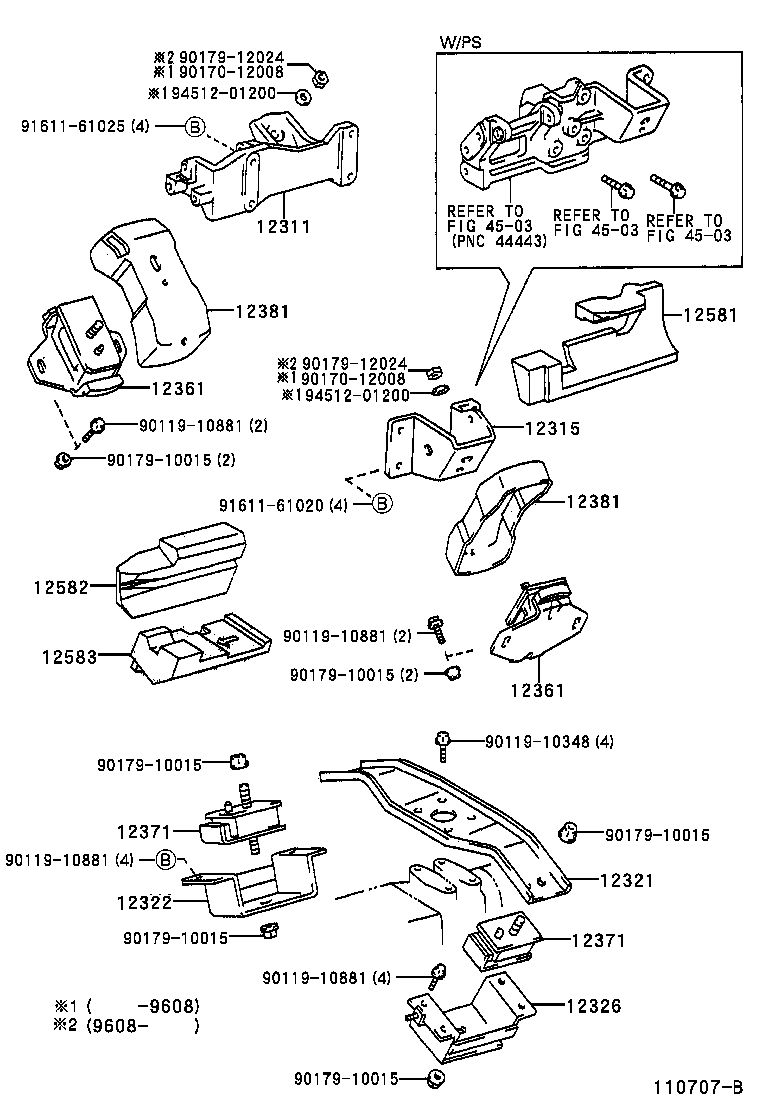

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12326 12361 12361 12371 12371 12381 12381 12581 12582 12583 4503 4503 4503 9011910348 9011910881 9011910881 9011910881 9011910881 9017012008 9017012008 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017912024 9017912024 9161161020 9161161025 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L,5L..LY21#

 1
12311-54260

3L,5L..LY21#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

3L..LY211..ARL,GEN

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

3L,5L..LY21#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

3L,5L..LY21#

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-71010

3L,5L..LY21#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY21#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

3L,5L..LY21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54040

3L,5L..LY21#

 2
Common parts
90119-10348
90119-10881
90170-12008
90179-10015
90179-12024
91611-61020
91611-61025
94512-01200
Linked diagrams
4503
