LY211L-PSMDS (1995)
Toyota Dyna 150

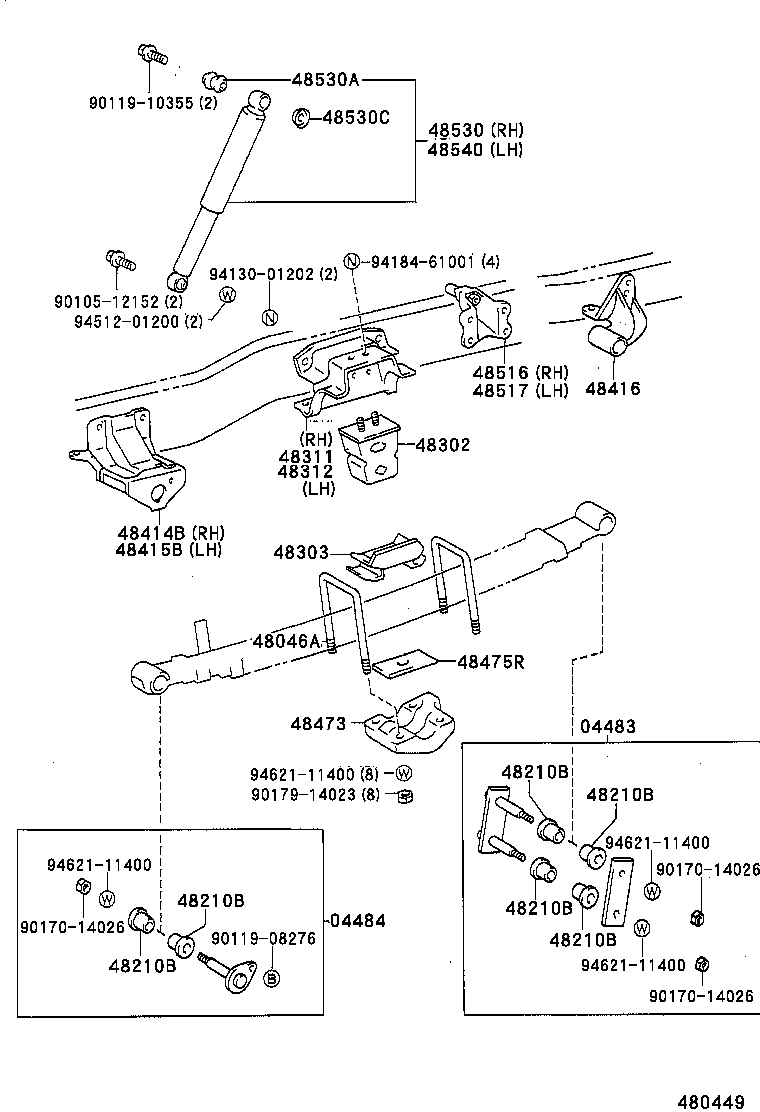

ILLUST NO. 1 OF 2(9505-9607)ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25011 |
LY21#,YY211 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-25011 |
LY21#,YY211 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14035 |
LY211,YY211..ST L=180 |
4 | ||
| 90117-14035 |
LY212..T2;LY211,YY211..ST L=180 |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25090 |
LY21#,YY211..ST |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25040 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
2 | ||
| 48311 - BRACKET, HOLLOW SPRING | ||||
| 48311-25040 |
LY21#,YY211..ST |
1 | ||
| 48312 - BRACKET, HOLLOW SPRING, NO.2 | ||||
| 48312-25020 |
LY21#,YY211..ST |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-25100 |
LY21#,YY211..ST |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-25030 |
LY21#,YY211..ST |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48417-25040 |
LY21#,YY211..ST LH |
1 | ||
| 48416-25040 |
LY21#,YY211..ST RH |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25130 |
LY21#,YY211..ST |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-25060 |
LY21#,YY211..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-25060 |
LY21#,YY211..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80452 |
LY211,YY211..ST |
1 | ||
| 48531-80550 |
LY21#,YY211..ST MARK 48531-25070 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY21#,YY211..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY21#,YY211 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80452 |
LY211,YY211..ST |
1 | ||
| 48531-80550 |
LY21#,YY211..ST MARK 48531-25070 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 94130-01202 | ||||
| 94184-61001 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

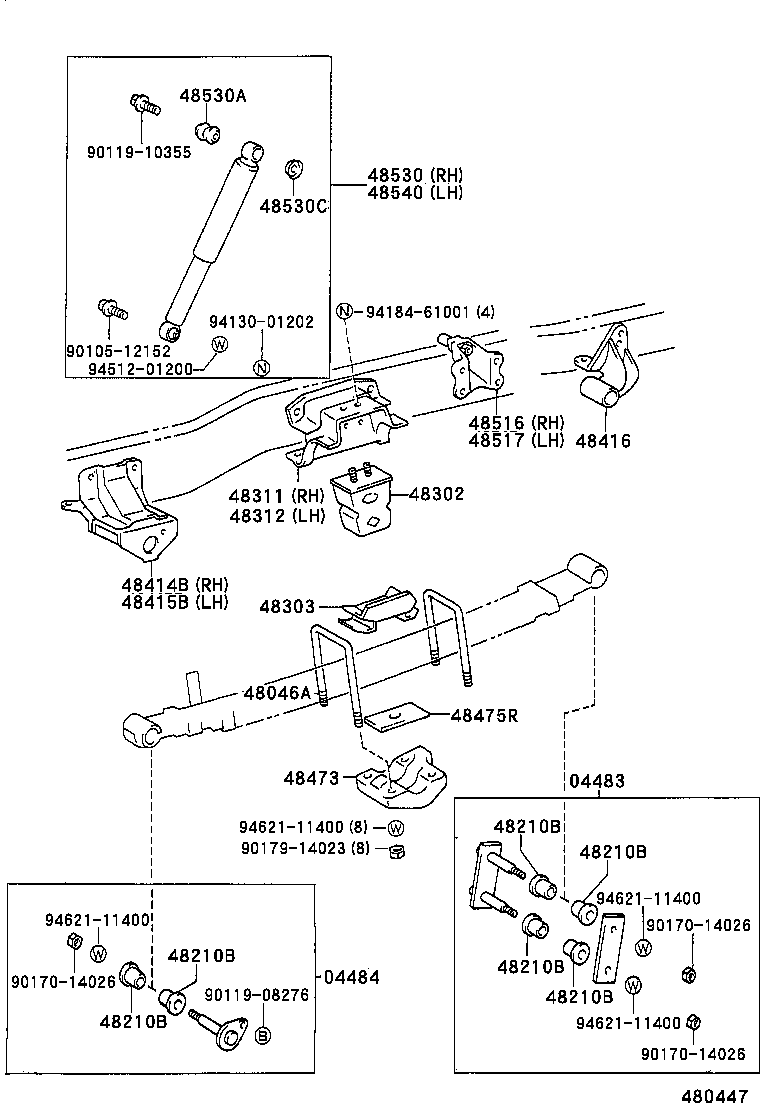

ILLUST NO. 1 OF 2(9607- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25011 |
LY21#,YY211 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-25011 |
LY21#,YY211 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14035 |
LY211,YY211..ST L=180 |
4 | ||
| 90117-14035 |
LY212..T2;LY211,YY211..ST L=180 |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY21#,YY211 |
12 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25090 |
LY21#,YY211..ST |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25040 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
2 | ||
| 48311 - BRACKET, HOLLOW SPRING | ||||
| 48311-25040 |
LY21#,YY211..ST |
1 | ||
| 48312 - BRACKET, HOLLOW SPRING, NO.2 | ||||
| 48312-25020 |
LY21#,YY211..ST |
1 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-25100 |
LY21#,YY211..ST |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-25030 |
LY21#,YY211..ST |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48417-25040 |
LY21#,YY211..ST LH |
1 | ||
| 48416-25040 |
LY21#,YY211..ST RH |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25130 |
LY21#,YY211..ST |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY21#..ST..EUR;LY21#,YY211..ARL,GEN,SA |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-25060 |
LY21#,YY211..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-25060 |
LY21#,YY211..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80452 |
LY211,YY211..ST |
1 | ||
| 48531-80550 |
LY21#,YY211..ST MARK 48531-25070 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY21#,YY211..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY21#,YY211 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80452 |
LY211,YY211..ST |
1 | ||
| 48531-80550 |
LY21#,YY211..ST MARK 48531-25070 |
1 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 94130-01202 | ||||
| 94184-61001 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

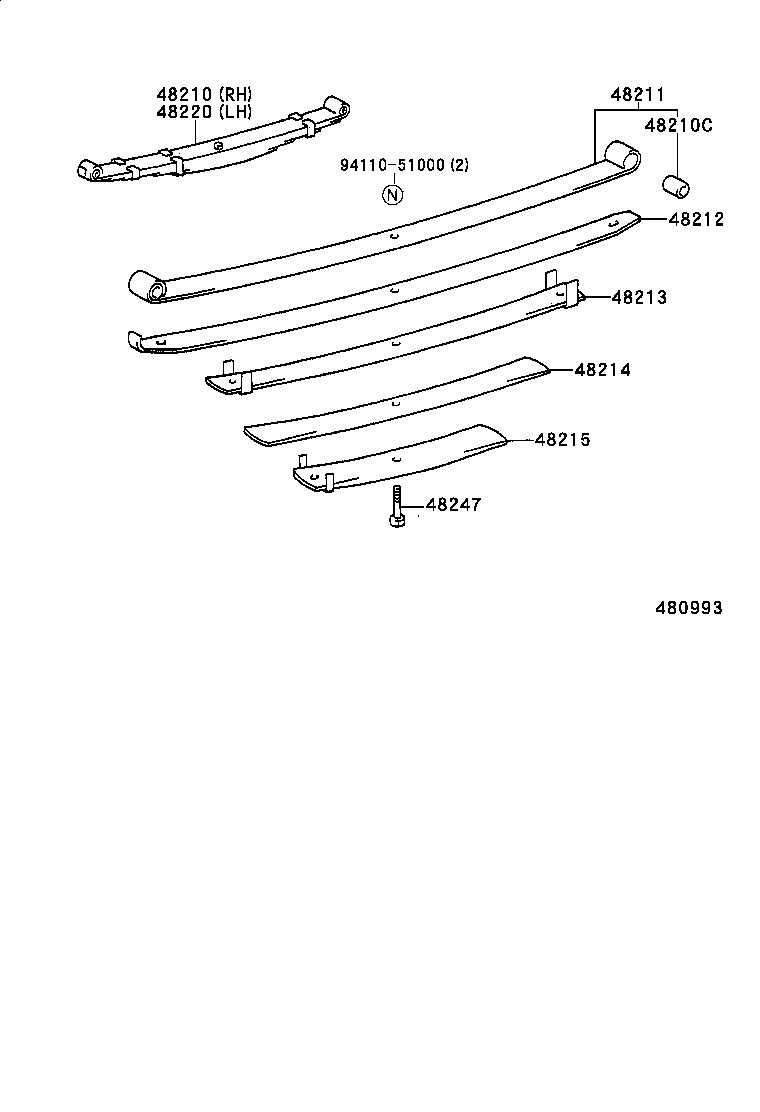

ILLUST NO. 2 OF 2(9505- )ST
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25780 |
LY21#,YY211..ST 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY21#,YY211 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25780 |
LY21#,YY211..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25780 |
LY21#,YY211..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25780 |
LY21#,YY211..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25750 |
LY21#,YY211..ST |
4 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-25750 |
LY21#,YY211..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25780 |
LY21#,YY211..ST 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36140 |
LY21#,YY211..ST |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
