YY100L-TBMBS (1995)

Toyota Dyna 100

Production May 1995 - May 1999
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )ARL,GEN

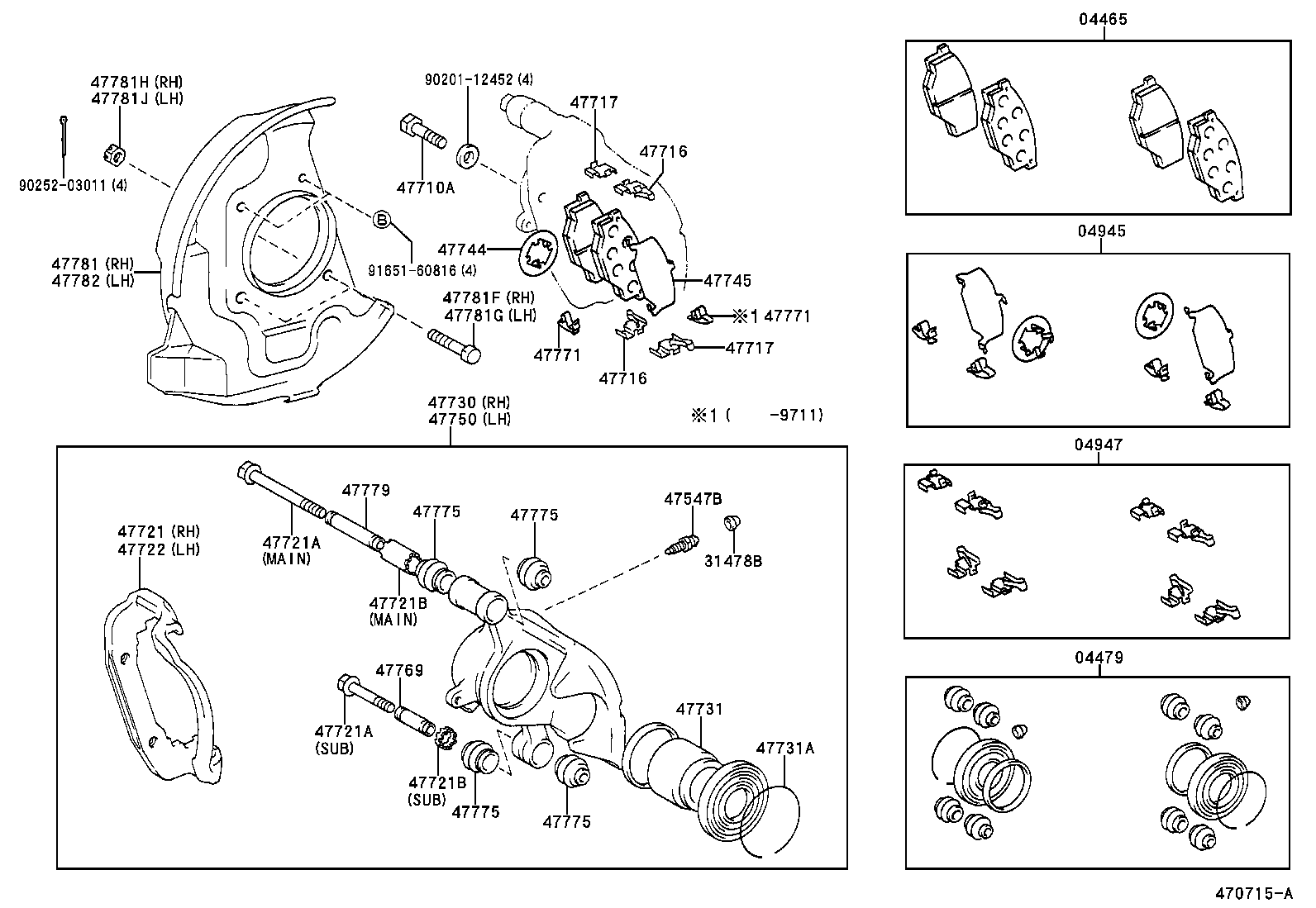

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47744 47745 47750 47769 47771 47771 47775 47775 47775 47775 47779 47781 47781F 47781G 47781H 47781J 47782 9020112452 9025203011 9165160816
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-26020

LY100,YY100..ARL,GEN

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-40010

LY100,YY100

 1
04479-35050

LY100,YY100

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-26030

LY100,YY100..ARL,GEN

 1
04945-26031

LY100,YY100..ARL,GEN

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-26010

LY100,YY100..ARL,GEN

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LY100,YY100

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

LY100,YY100

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12132

LY100,YY100

*12-1.25P-31X20

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LY100,YY100

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-26040

LY100,YY100

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LY100,YY100

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-26010

LY100,YY100

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-26050

LY100,YY100

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LY100,YY100

*10-1.25PX95.5-30,MAIN PIN SIDE

 2
90119-10014

LY100,YY100

*10-1.25PX65.5-30,SUB PIN SIDE

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10249

LY100,YY100

*10-1.25PX95.5-30,MAIN PIN SIDE

 2
90119-10014

LY100,YY100

*10-1.25PX65.5-30,SUB PIN SIDE

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16005

LY100,YY100

MAIN PIN SIDE

 2
90387-16004

LY100,YY100

SUB PIN SIDE

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16005

LY100,YY100

MAIN PIN SIDE

 2
90387-16004

LY100,YY100

SUB PIN SIDE

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-26050

LY100,YY100

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-26080

LY100,YY100

 1
47731 - PISTON, FRONT DISC BRAKE
47731-40010

LY100,YY100

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-70001

LY100,YY100

 2
90520-86005

LY100,YY100

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-26040

LY100,YY100..ARL,GEN

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-26020

LY100,YY100..ARL,GEN

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-26080

LY100,YY100

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LY100,YY100

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26011

LY100,YY100..ARL,GEN

 2
47771-26011

LY100,YY100..ARL,GEN

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-26011

LY100,YY100..ARL,GEN

 2
47771-26011

LY100,YY100..ARL,GEN

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY100,YY100

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY100,YY100

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY100,YY100

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY100,YY100

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LY100,YY100

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-26040

LY100,YY100

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90102-12005

LY100,YY100

 2
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90102-12005

LY100,YY100

 2
47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90171-12011

LY100,YY100

 2
90171-12004

LY100,YY100

 2
47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90171-12004

LY100,YY100

 2
90171-12011

LY100,YY100

 2
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-26040

LY100,YY100

 1
Common parts
90201-12452
90252-03011
91651-60816
