YY100L-TBMBS (1995)

Toyota Dyna 100

Production May 1995 - May 1999
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )2Y

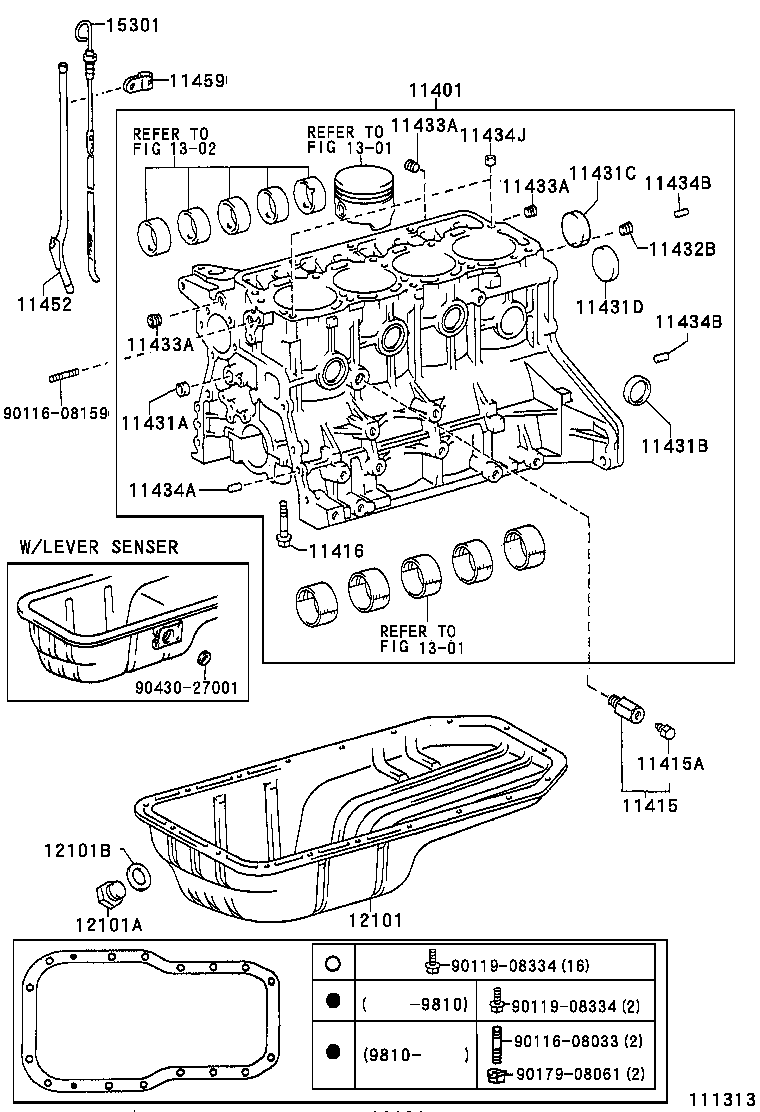

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431C 11431D 11432B 11433A 11433A 11433A 11434A 11434B 11434B 11434J 11452 11459 12101 12101A 12101B 1301 1301 1302 15301 9011608033 9011608159 9011908334 9011908334 9017908061 9043027001
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79066

2Y..YY100

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

2Y..YY100

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

2Y..YY100

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02032

2Y..YY100

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-01800

2Y..YY100

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43500

2Y..YY100

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-45000

2Y..YY100

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-45000

2Y..YY100

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-53011

2Y..YY100

 1
11433A - PLUG, STRAIGHT, NO.1
90344-51005

2Y..YY100

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

2Y..YY100

 3
11433A - PLUG, STRAIGHT, NO.1
90344-51005

2Y..YY100

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

2Y..YY100

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2Y..YY100

L=22,OD=10

 2
90250-08120

2Y..YY100

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2Y..YY100

L=22,OD=10

 2
90250-08120

2Y..YY100

L=18,OD=8

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016

2Y..YY100

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-71020

2Y..YY100

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-71011

2Y..YY100

 1
12101 - PAN SUB-ASSY, OIL
12101-71031

2Y..YY100

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2Y..YY100

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2Y..YY100

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-71020

2Y..YY100

 1
Common parts
90116-08033
90116-08159
90119-08334
90179-08061
90430-27001
Linked diagrams
1301
1302
