YY100L-TBMBS (1995)

Toyota Dyna 100

Production May 1995 - May 1999
Engine 2Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

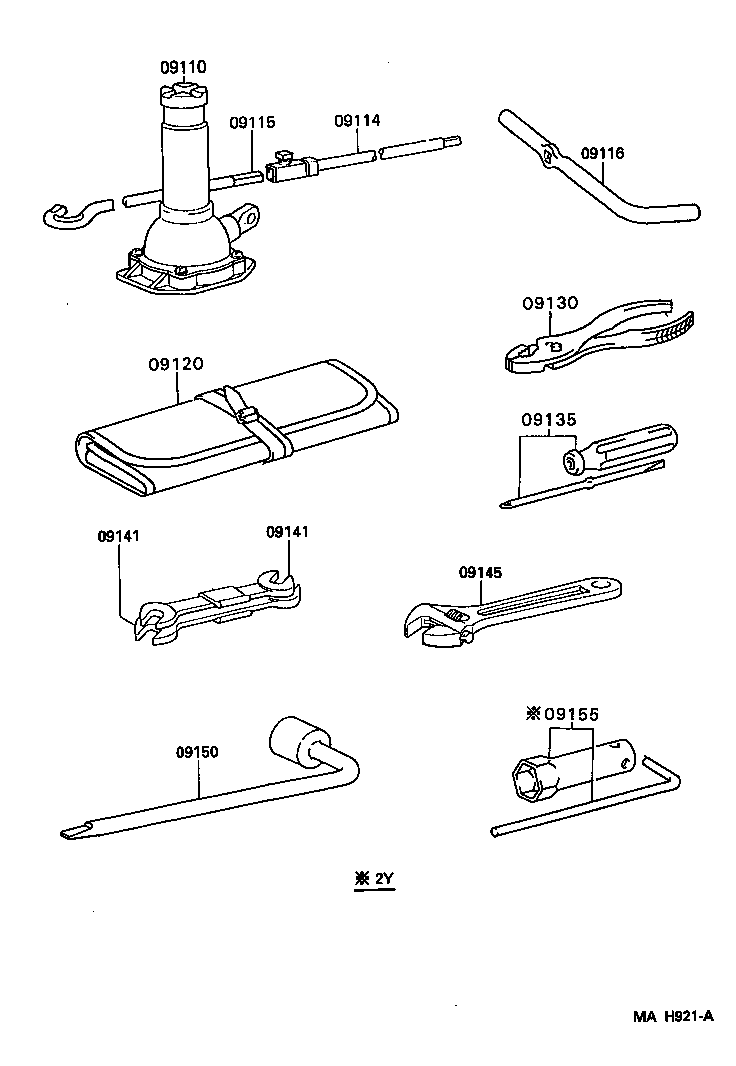

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09141 09141 09145 09150 09155
Part # Description Qty Price
09110 - JACK ASSY
09110-25100

LY100,YY100..EUR,GEN

 1
09111-25082

LY100,YY100

 1
09110-25101

LY100,YY100

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-28010

LY100,YY100

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-35070

LY100,YY100

 1
09116 - LEVER, JACK HANDLE
09116-35041

LY100,YY100

 1
09120 - BAG, TOOL
09120-26021

LY100,YY100

 1
09130 - PLIERS
99913-11500

LY100,YY100

 1
09135 - DRIVER, SCREW
99915-10700

LY100,YY100

 1
09141 - SPANNER
99914-11214

LY100,YY100

12 X 14

 1
99914-10810

LY100,YY100

8 X 10

 1
09141 - SPANNER
99914-11214

LY100,YY100

12 X 14

 1
99914-10810

LY100,YY100

8 X 10

 1
09145 - WRENCH, MONKEY
99911-11200

LY100,YY100

 1
09150 - WRENCH, HUB NUT BOX
09150-26030

LY100,YY100

 1
09155 - WRENCH, SPARK PLUG
09155-41010

YY100

 1
