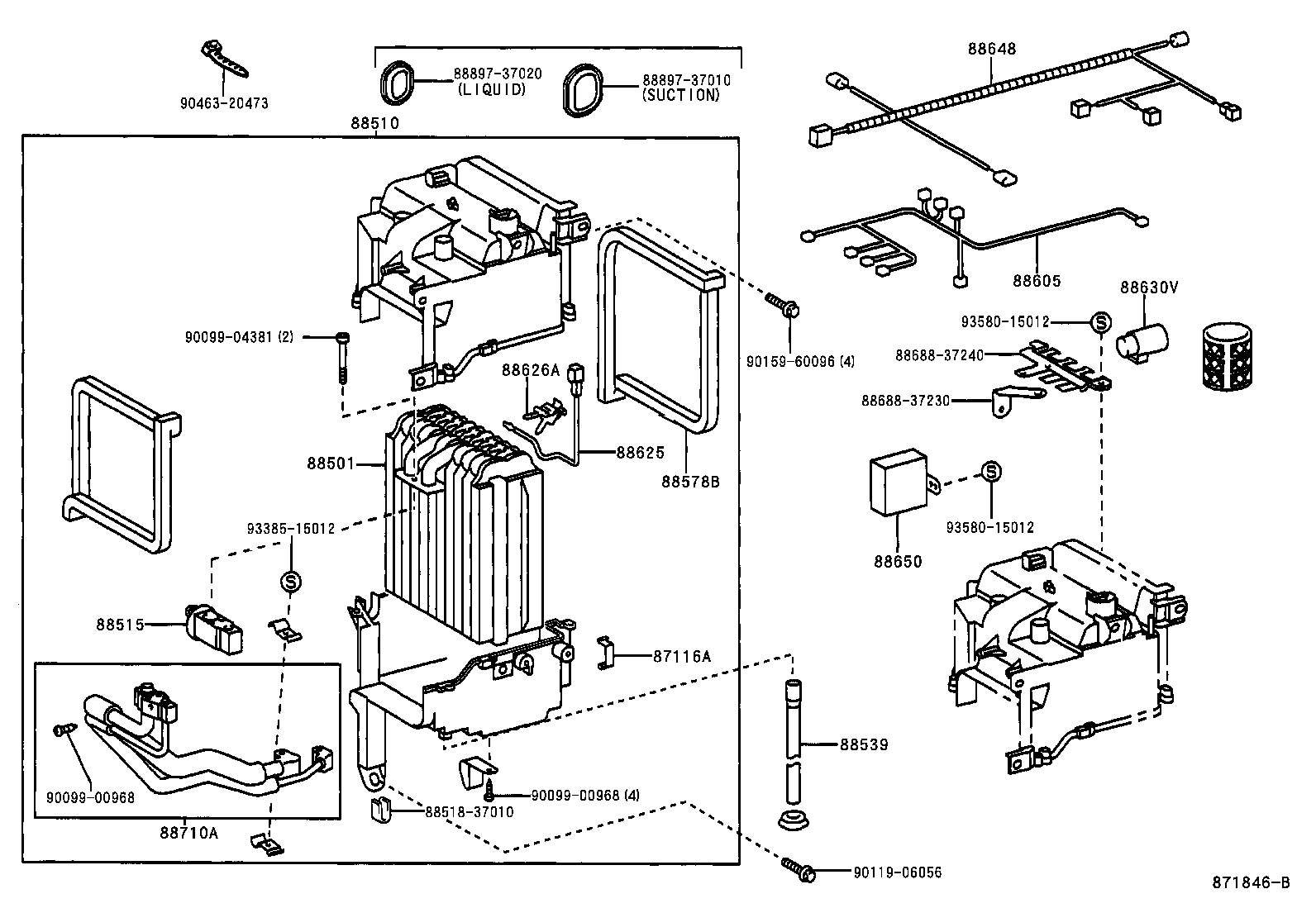

Toyota Dyna 100 LY100 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LY100,YY100..RHD..IV	08/1997 - 05/1999	3
87116-14010	LY100..RHD..IV	05/1999 - 12/2999	3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35021	LY100..RHD..IV	05/1999 - 12/2999	1
88501-37050	LY100..RHD..IV	08/1997 - 05/1999	1
88510 - UNIT ASSY, COOLER
88510-37051	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
88510-25060	LY100..RHD..IV	05/1999 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-20100	LY100..RHD..IV	05/1999 - 12/2999	1
88515-20100	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37020	LY100..RHD..IV	05/1999 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
88578-20470	LY100..RHD..IV	05/1999 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-37090	LY100..RHD..IV	08/1997 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-3A020	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
88625-3A020	LY100..RHD..IV	05/1999 - 12/2999	1
88626A - HOLDER, THERMISTOR
88626-28010	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
88626-28010	LY100..RHD..IV	05/1999 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37010	LY100..RHD..IV	08/1997 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-25160	LY100..RHD..IV	05/1999 - 12/2999	1
88710-37190	LY100,YY100..RHD..IV	08/1997 - 05/1999	1
Common parts
88518-37010
88688-37230
88688-37240
88897-37010
88897-37020
90099-00968
90099-04381
90119-06056
90159-60096
90463-20473
93385-15012
93580-15012

LY100R-TBMBS3 (1995)
