LY100R-TBMBS3 (1995)

Toyota Dyna 100

Production May 1995 - Jul 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

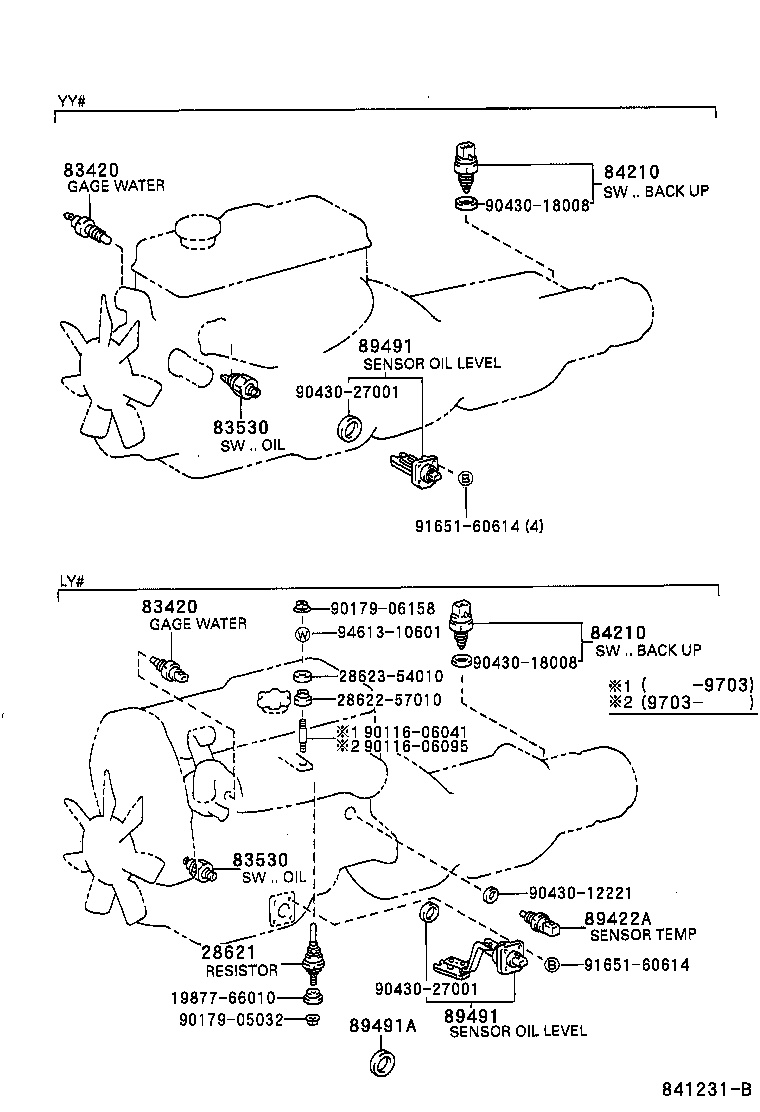

ILLUST NO. 1 OF 7(9505- )

Click highlighted areas on diagram

E/G, T/M, T/F

diagram 1987766010 28621 2862257010 2862354010 83420 83420 83530 83530 84210 84210 89422A 89491 89491 89491A 9011606041 9011606095 9017905032 9017906158 9043012221 9043018008 9043018008 9043027001 9043027001 9165160614 9165160614 9461310601
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

YY100;LY100..RHD;LY100..LHD..EUR

NIPPONDENSO

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16040

YY100;LY100..RHD;LY100..LHD..EUR

NIPPONDENSO

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030

LY100

 1
83530-30060

LY100

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60030

LY100

 1
83530-30060

LY100

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

LY100,YY100

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040

LY100,YY100

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-25020

LY100

 1
89491-26100

LY100..RHD..IV

MALAYSIA SPEC

 1
89491-25021

LY100

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-25020

LY100

 1
89491-26100

LY100..RHD..IV

MALAYSIA SPEC

 1
89491-25021

LY100

 1
89491A - GASKET, ENGINE OIL LEVEL SENSOR
89493-60010

LY100

 1
Common parts
19877-66010
28622-57010
28623-54010
90116-06041
90116-06095
90179-05032
90179-06158
90430-12221
90430-18008
90430-27001
91651-60614
94613-10601

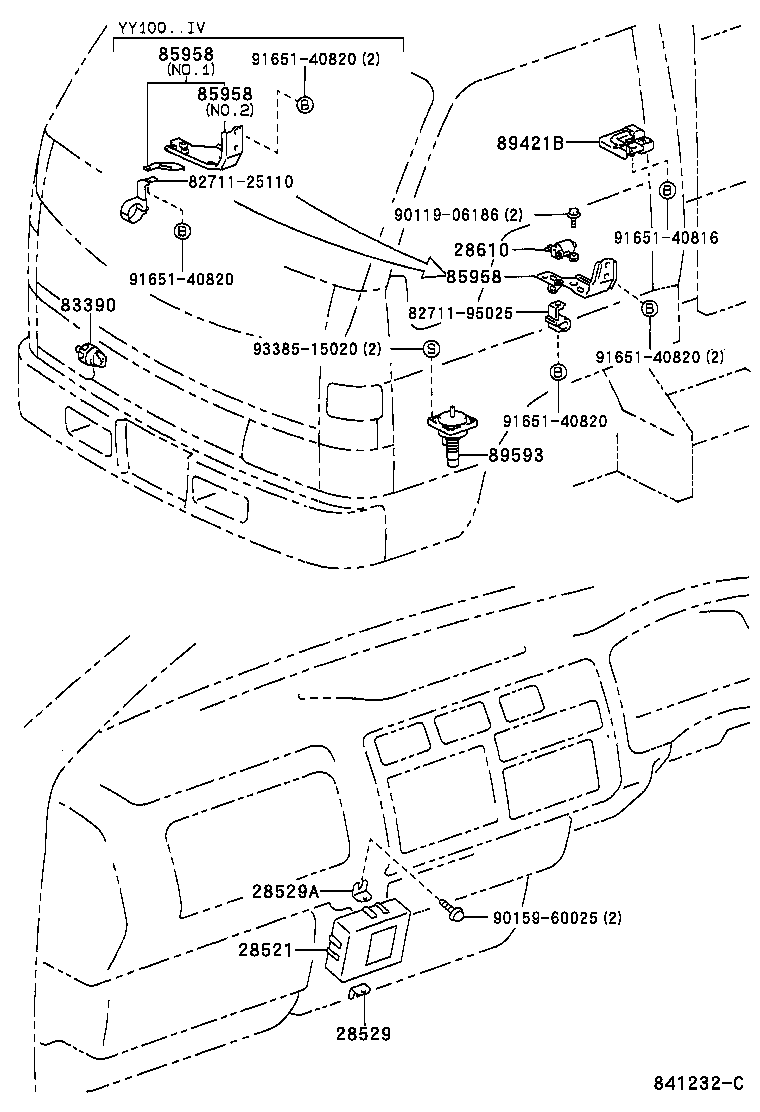

ILLUST NO. 2 OF 7(9505- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28521 28529 28529A 28610 8271125110 8271195025 83390 85958 85958 85958 89421B 89593 9011906186 9015960025 9165140816 9165140820 9165140820 9165140820 9165140820 9338515020
Part # Description Qty Price
28521 - TIMER, PREHEATING
28521-54470

2L..LY100..GEN

 1
28529 - BRACKET, PREHEATING TIMER, NO.1
28529-56030

2L..LY100..GEN

W(FR HEATER)

 1
28529-56040

2L..LY100..GEN

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-12340

LY100

 1
85958 - BRACKET, MAIN RELAY
85958-25030

LY100,YY100..ARL,GEN

 1
85958-25030

LY100,YY100..T3

 1
85958-25060

LY100..T3

 1
85958 - BRACKET, MAIN RELAY
85958-25030

LY100,YY100..ARL,GEN

 1
85958-25060

LY100..T3

 1
85958-25030

LY100,YY100..T3

 1
85958 - BRACKET, MAIN RELAY
85958-25030

LY100,YY100..ARL,GEN

 1
85958-25030

LY100,YY100..T3

 1
85958-25060

LY100..T3

 1
89593 - SENSOR, AIR CLEANER WARNING
89593-26010

LY100..GEN

 1
Common parts
82711-25110
82711-95025
90119-06186
90159-60025
91651-40816
91651-40820
93385-15020

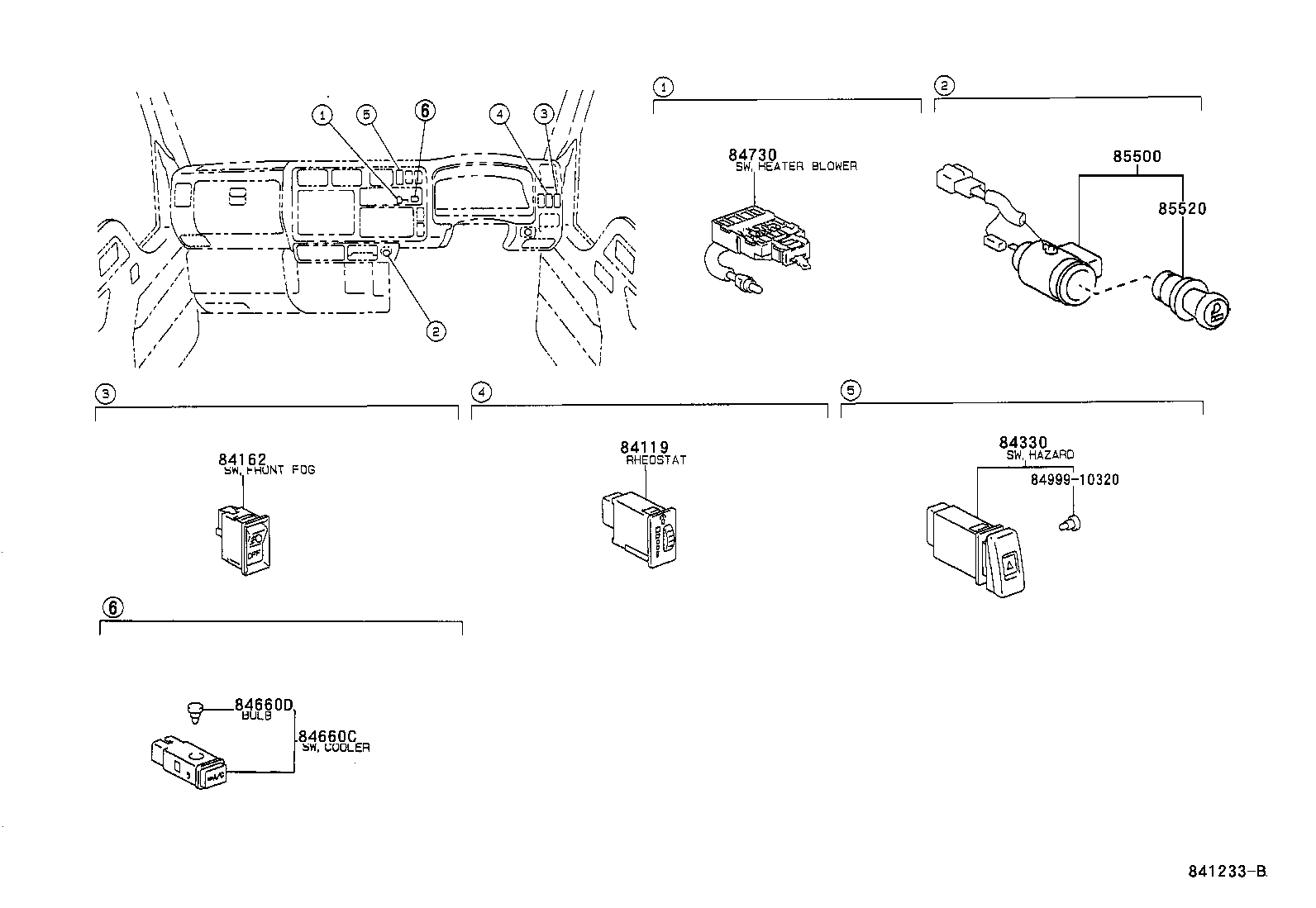

ILLUST NO. 3 OF 7(9505- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCH

diagram 84119 84162 84330 84660C 84660D 84730 8499910320 85500 85520
Part # Description Qty Price
84162 - SWITCH, FRONT FOG LAMP
84160-95400

LY100,YY100..GEN

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-37050

LY100,YY100

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-42010

LY100,YY100..RHD

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-25010

LY100,YY100

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-17020

LY100,YY100

 1
Common parts
84999-10320

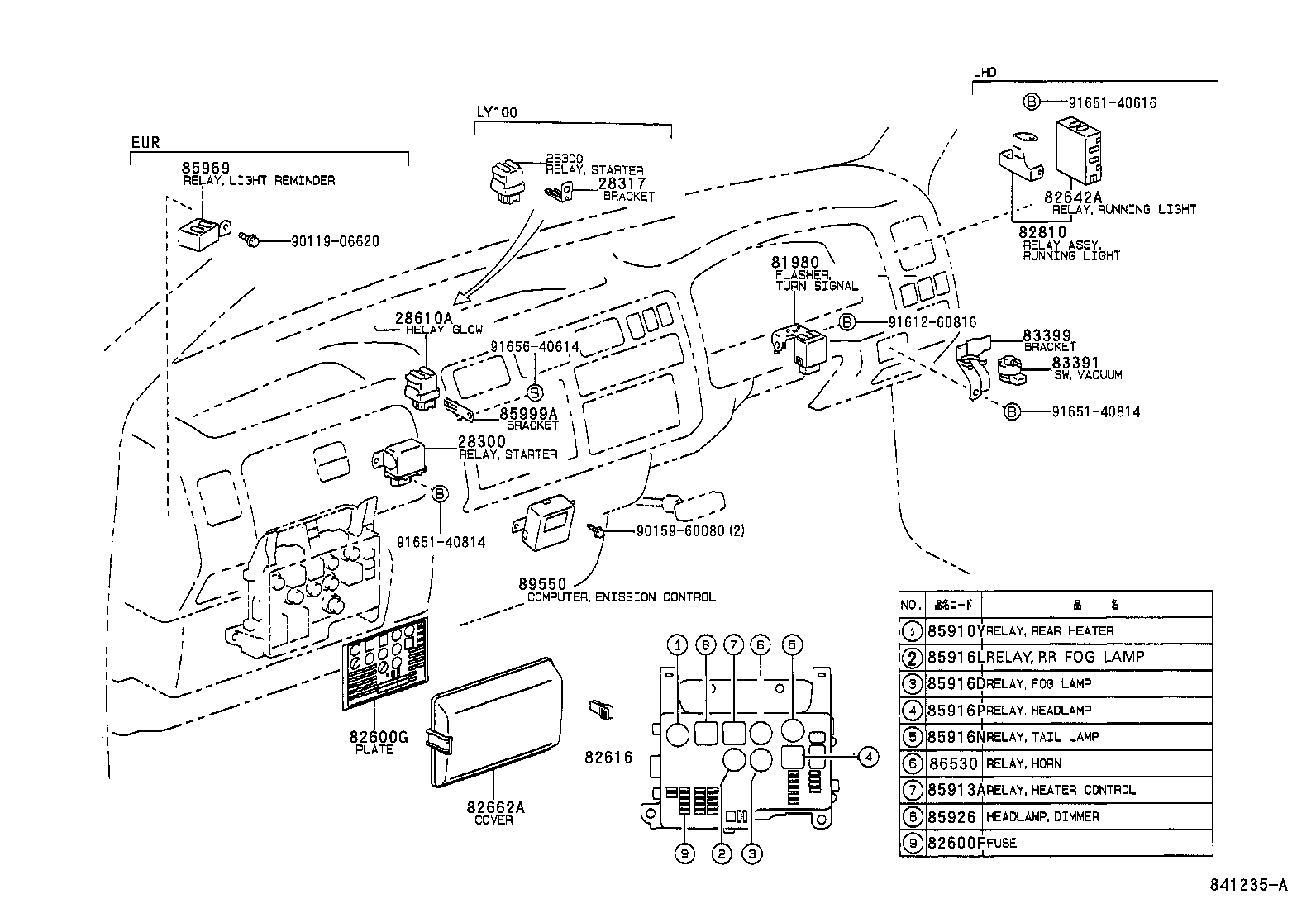

ILLUST NO. 4 OF 7(9505-9805) ; (9805-9905)ARL,GEN

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

diagram 28300 28317 28610A 81980 82600F 82600G 82616 82642A 82662A 82810 83391 83399 85910Y 85913A 85916D 85916L 85916N 85916P 85926 85969 85999A 86530 89550 9011906620 9015960080 9161260816 9165140616 9165140814 9165140814 9165640614
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-54110

2L..LY100

 1
28300-46010

2L..LY100

 1
28300-54110

2L..LY100..GEN

 1
28317 - BRACKET, STARTER RELAY
28317-54020

2L..LY100

 1
28317-54020

2L..LY100..GEN

 1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-64110

2L..LY100

 1
28610-64110

2L..LY100..GEN

 1
28610-54360

2L..LY100

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37041

LY100,YY100

 1
81980-25090

LY100,YY100

 1
82600F - FUSE, FUSE BLOCK
90982-09010

LY100,YY100

15A,MINI FUSE,BLUE

 1
90982-09008

LY100,YY100

7.5A,MINI FUSE,BRN

 1
90982-09013

LY100,YY100

30A,MINI FUSE,GRN

 1
90982-09011

LY100,YY100

20A,MINI FUSE,YELLOW

 1
90982-09009

LY100,YY100

10A,MINI FUSE,RED

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-25020

LY100,YY100

 1
82683-25110

LY100..GEN

 1
82683-25021

LY100,YY100

 1
82683-25070

LY100,YY100

 1
82683-25070

LY100,YY100..ARL,GEN

 1
82616 - PULLER, FUSE
82616-20010

LY100,YY100

 1
82616-20010

YY100;LY100..RHD;LY100..LHD..IV

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37010B0

LY100,YY100

BLUISH GRAY,TRIM1#

 1
85913A - RELAY, HEATER CONTROL
90987-04002

LY100,YY100

 1
85916D - RELAY, FOG LAMP
90987-02004

LY100,YY100..GEN

 1
85916N - RELAY, TAIL LAMP
90987-02004

LY100,YY100

 1
85916P - RELAY, HEADLAMP
90987-02006

LY100,YY100

 1
85999A - BRACKET, RELAY, NO.2
85999-25030

LY100

 1
85999-25030

LY100..GEN

 1
Common parts
90119-06620
90159-60080
91612-60816
91651-40616
91651-40814
91656-40614

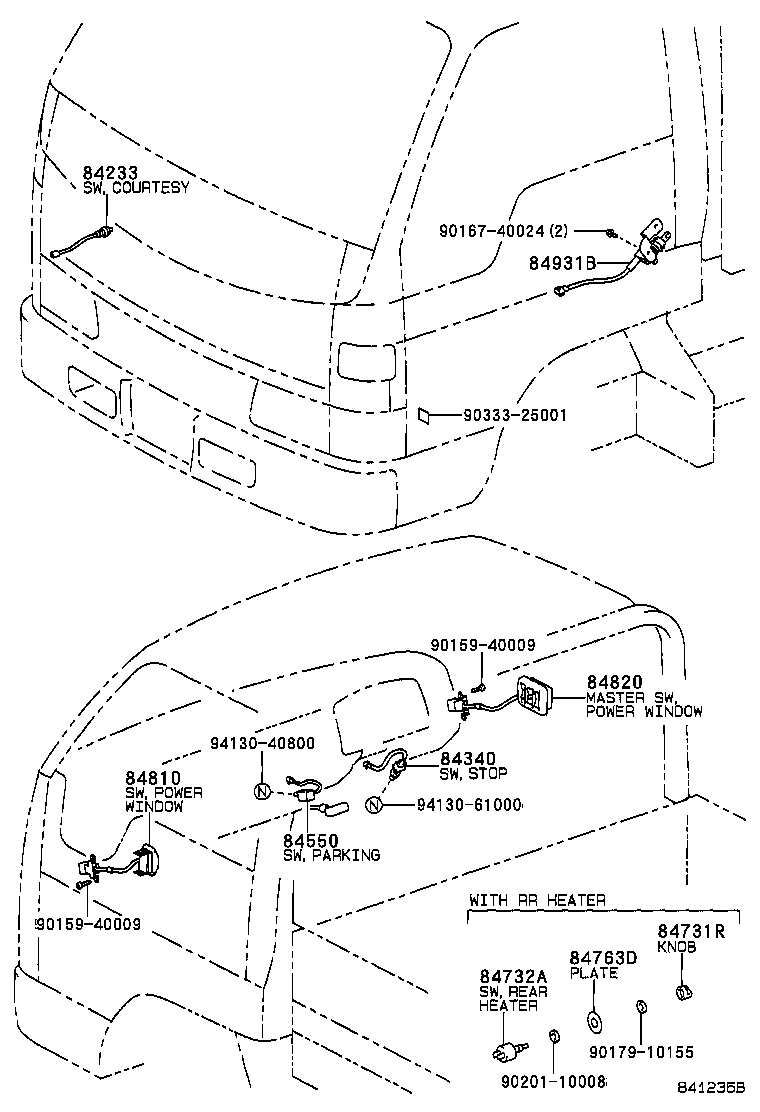

ILLUST NO. 6 OF 7(9505- )

Click highlighted areas on diagram

DOOR, ROOF & FLOOR

diagram 84233 84340 84550 84731R 84732A 84763D 84810 84820 84931B 9015940009 9015940009 9016740024 9017910155 9020110008 9033325001 9413040800 9413061000
Part # Description Qty Price
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-28020

LY100,YY100

 1
84340 - SWITCH ASSY, STOP LAMP
84340-36070

LY100,YY100

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-50010

LY100,YY100..IV

 1
Common parts
90159-40009
90167-40024
90179-10155
90201-10008
90333-25001
94130-40800
94130-61000

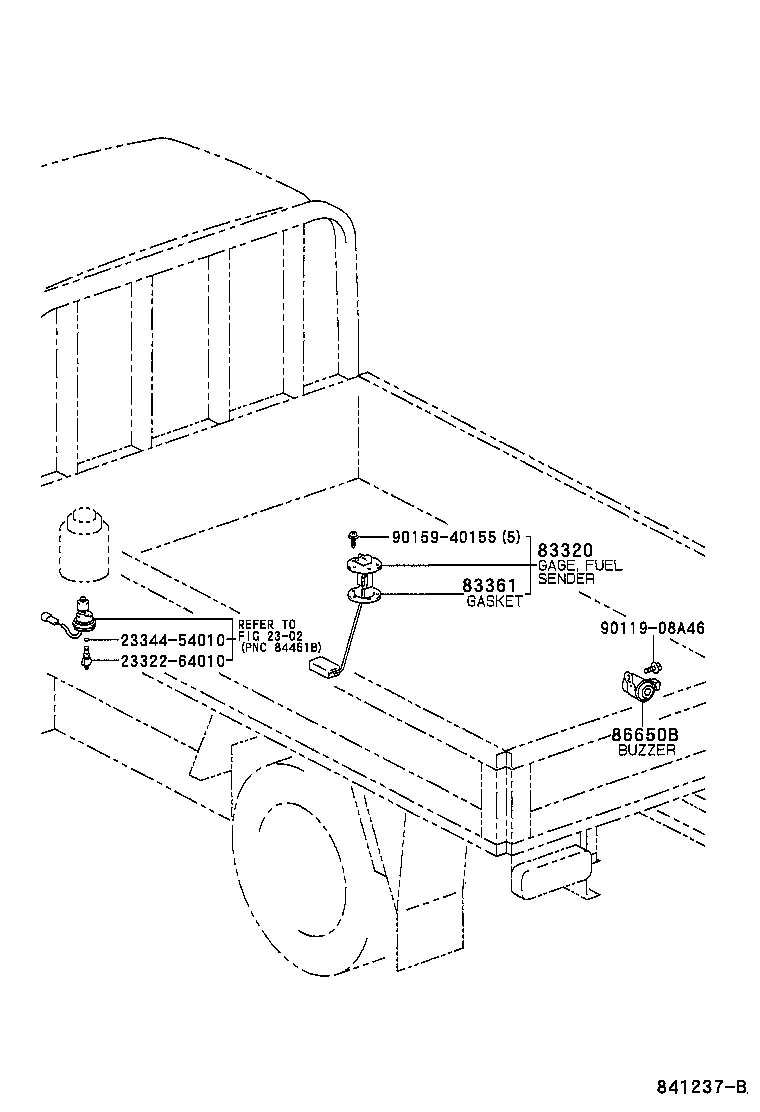

ILLUST NO. 7 OF 7(9505- )

Click highlighted areas on diagram

REAR BODY

diagram 2332264010 2334454010 83320 83361 86650B 9011908A46 9015940155
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80316

LY100,YY100

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LY100,YY100

 1
86650B - BUZZER ASSY, REVERSE WARNING
86650-95A08

LY100,YY100

 1
Common parts
23322-64010
23344-54010
90119-08A46
90159-40155

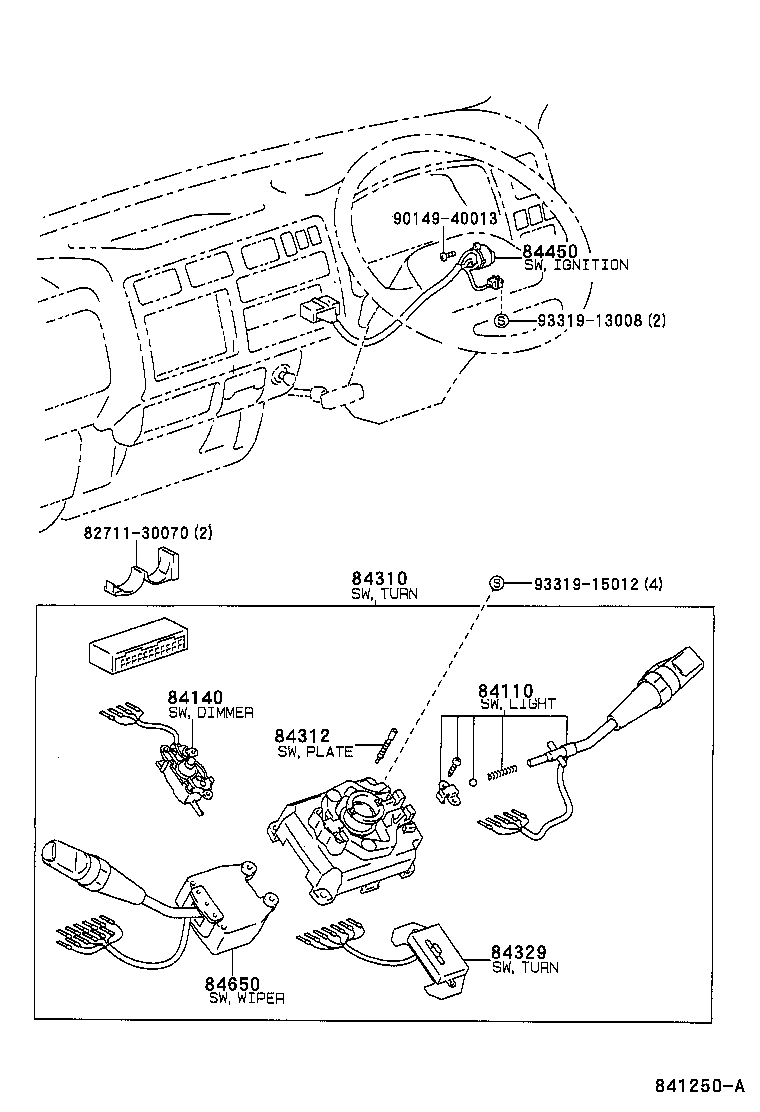

ILLUST NO. 5 OF 7(9505- )

Click highlighted areas on diagram

COMBINATION SWITCH

diagram 8271130070 84110 84140 84310 84312 84329 84450 84650 9014940013 9331913008 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80189

LY100,YY100..RHD..(ARL,GEN)

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-25050

LY100,YY100..RHD..(ARL,GEN)

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-25200

LY100,YY100..RHD..(ARL,GEN)

 1
84310-25170

LY100,YY100..RHD..(ARL,GEN)

W(INTERMITTENT WIPER)

 1
84312 - PLATE, HORN CONTACT
84312-20011

LY100,YY100

 1
84329 - SWITCH, TURN SIGNAL
84329-25020

LY100,YY100..RHD..(ARL,GEN)

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84510-37030

LY100..GEN

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-25090

LY100,YY100..RHD..(ARL,GEN)

 1
84652-25070

LY100,YY100..RHD..(ARL,GEN)

W(INTERMITTENT WIPER)

 1
Common parts
82711-30070
90149-40013
93319-13008
93319-15012

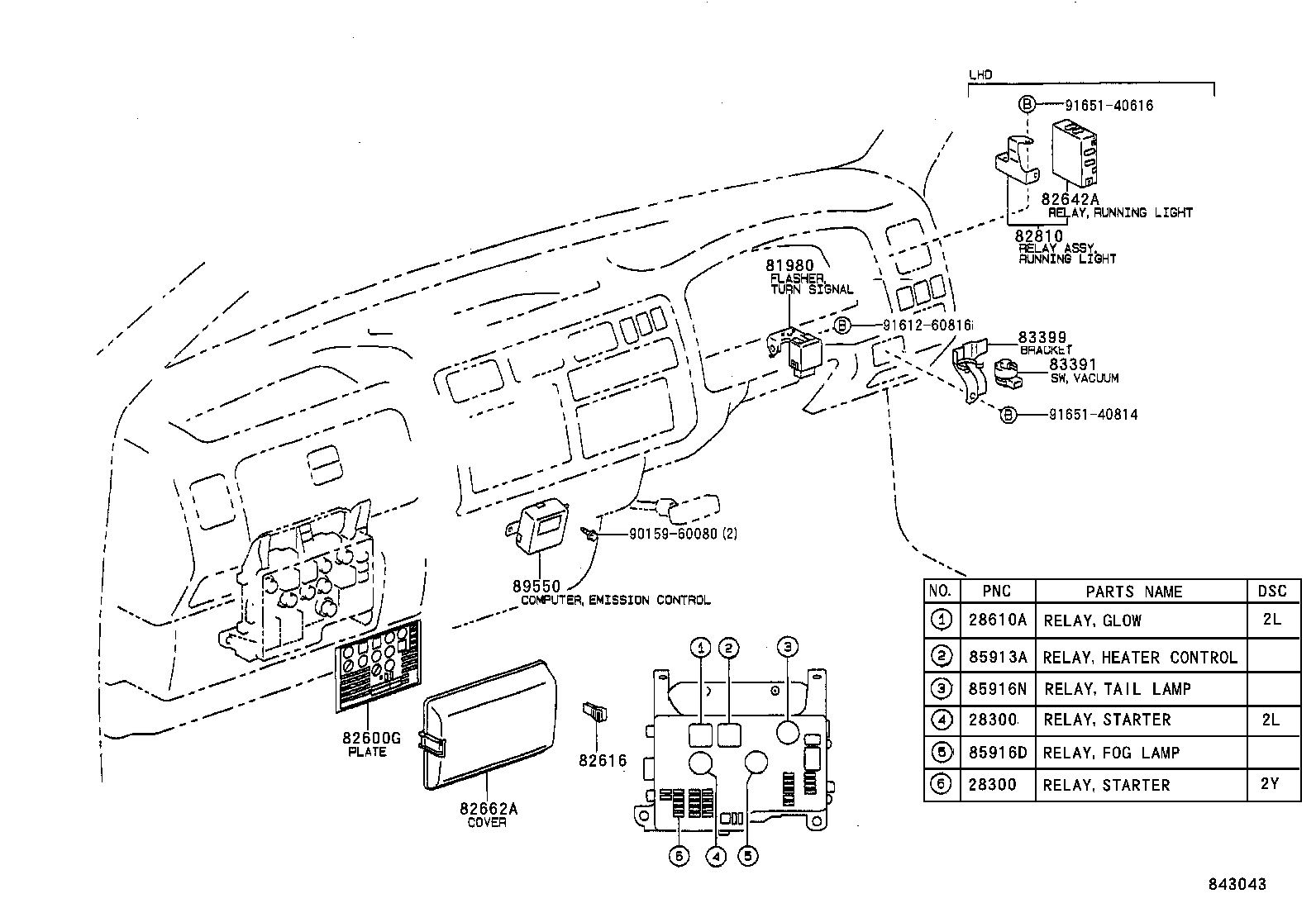

ILLUST NO. 4 OF 7(9905- )ARL,GEN

Click highlighted areas on diagram

INSTRUMENT PANEL & COWL

diagram 28300 28300 28610A 81980 82600G 82616 82642A 82662A 82810 83391 83399 85913A 85916D 85916N 89550 9015960080 9161260816 9165140616 9165140814
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-54110

2L..LY100

 1
28300-46010

2L..LY100

 1
28300-54110

2L..LY100..GEN

 1
28300 - RELAY ASSY, STARTER
28300-54110

2L..LY100

 1
28300-46010

2L..LY100

 1
28300-54110

2L..LY100..GEN

 1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-64110

2L..LY100

 1
28610-64110

2L..LY100..GEN

 1
28610-54360

2L..LY100

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37041

LY100,YY100

 1
81980-25090

LY100,YY100

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-25020

LY100,YY100

 1
82683-25110

LY100..GEN

 1
82683-25021

LY100,YY100

 1
82683-25070

LY100,YY100

 1
82683-25070

LY100,YY100..ARL,GEN

 1
82616 - PULLER, FUSE
82616-20010

LY100,YY100

 1
82616-20010

YY100;LY100..RHD;LY100..LHD..IV

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-37010B0

LY100,YY100

BLUISH GRAY,TRIM1#

 1
85913A - RELAY, HEATER CONTROL
90987-04002

LY100,YY100

 1
85916D - RELAY, FOG LAMP
90987-02004

LY100,YY100..GEN

 1
85916N - RELAY, TAIL LAMP
90987-02004

LY100,YY100

 1
Common parts
90159-60080
91612-60816
91651-40616
91651-40814
