LY100L-PSMASW3 (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

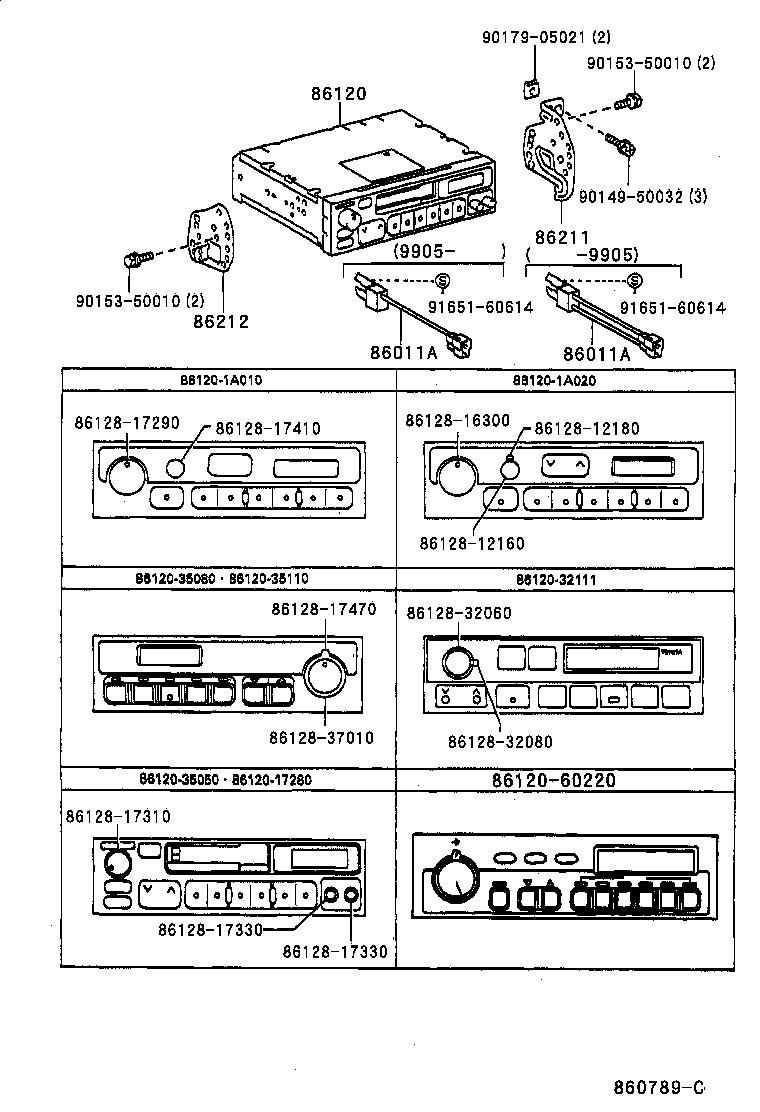

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 86011A 86011A 86120 8612812160 8612812180 8612816300 8612817290 8612817310 8612817330 8612817330 8612817410 8612817470 8612832060 8612832080 8612837010 86211 86212 9014950032 9015350010 9015350010 9017905021 9165160614 9165160614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

LY100..LHD..EUR;LY100,YY100..RHD

 1
90980-04046

LY100

 2
86011A - CONDENSER, RADIO SETTING
90980-04040

LY100..LHD..EUR;LY100,YY100..RHD

 1
90980-04046

LY100

 2
86120 - RECEIVER ASSY, RADIO
86120-35080

LY100,YY100

MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP)

 1
86120-35110

LY100,YY100..EUR,GEN

MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP)

 1
86120-32111

LY100..EUR

FUJITSU TEN,AM/FM ETR CASSETTE (AM=9KHZ STEP)

 1
86120-60220

LY100..EUR

FUJITSU TEN,ID=13302,MW/UKW/LW

 1
86211 - BRACKET, RADIO, NO.1
86211-37040

LY100,YY100..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-37020

LY100,YY100

 1
Common parts
86128-12160
86128-12180
86128-16300
86128-17290
86128-17310
86128-17330
86128-17410
86128-17470
86128-32060
86128-32080
86128-37010
90149-50032
90153-50010
90179-05021
91651-60614

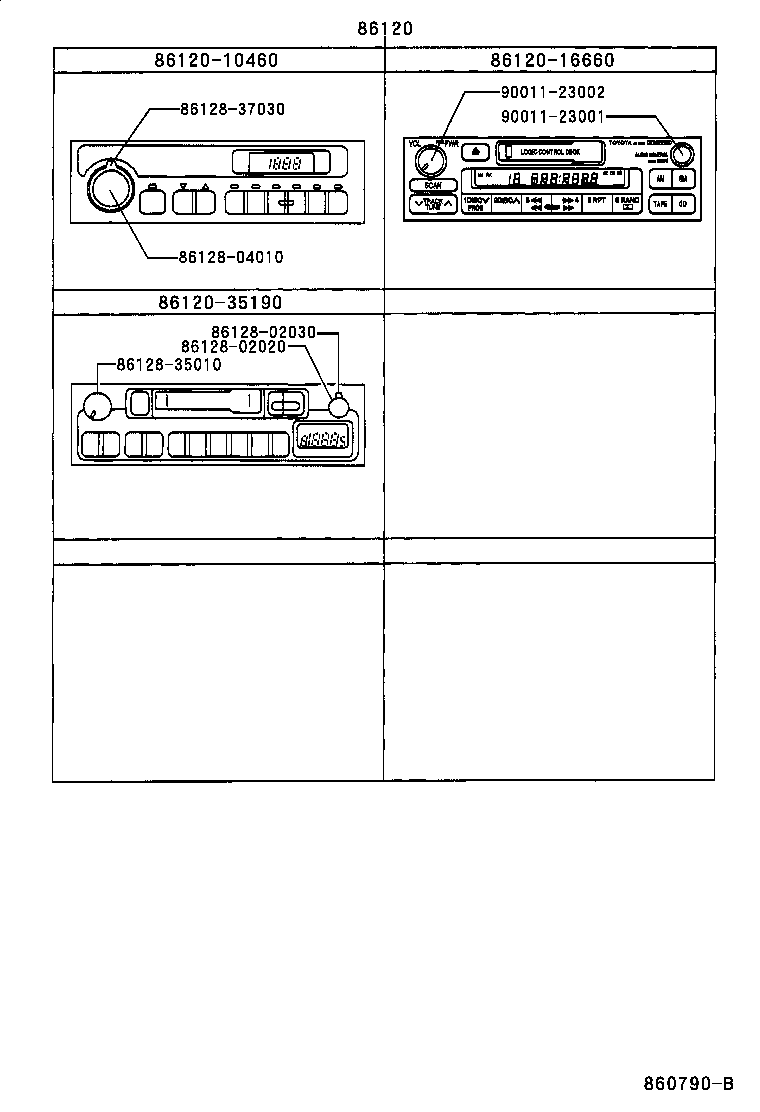

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 86120 8612802020 8612802030 8612804010 8612835010 8612837030 9001123001 9001123002
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-35080

LY100,YY100

MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP)

 1
86120-35110

LY100,YY100..EUR,GEN

MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP)

 1
86120-32111

LY100..EUR

FUJITSU TEN,AM/FM ETR CASSETTE (AM=9KHZ STEP)

 1
86120-60220

LY100..EUR

FUJITSU TEN,ID=13302,MW/UKW/LW

 1
Common parts
86128-02020
86128-02030
86128-04010
86128-35010
86128-37030
90011-23001
90011-23002
