LY100L-PSMASW3 (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

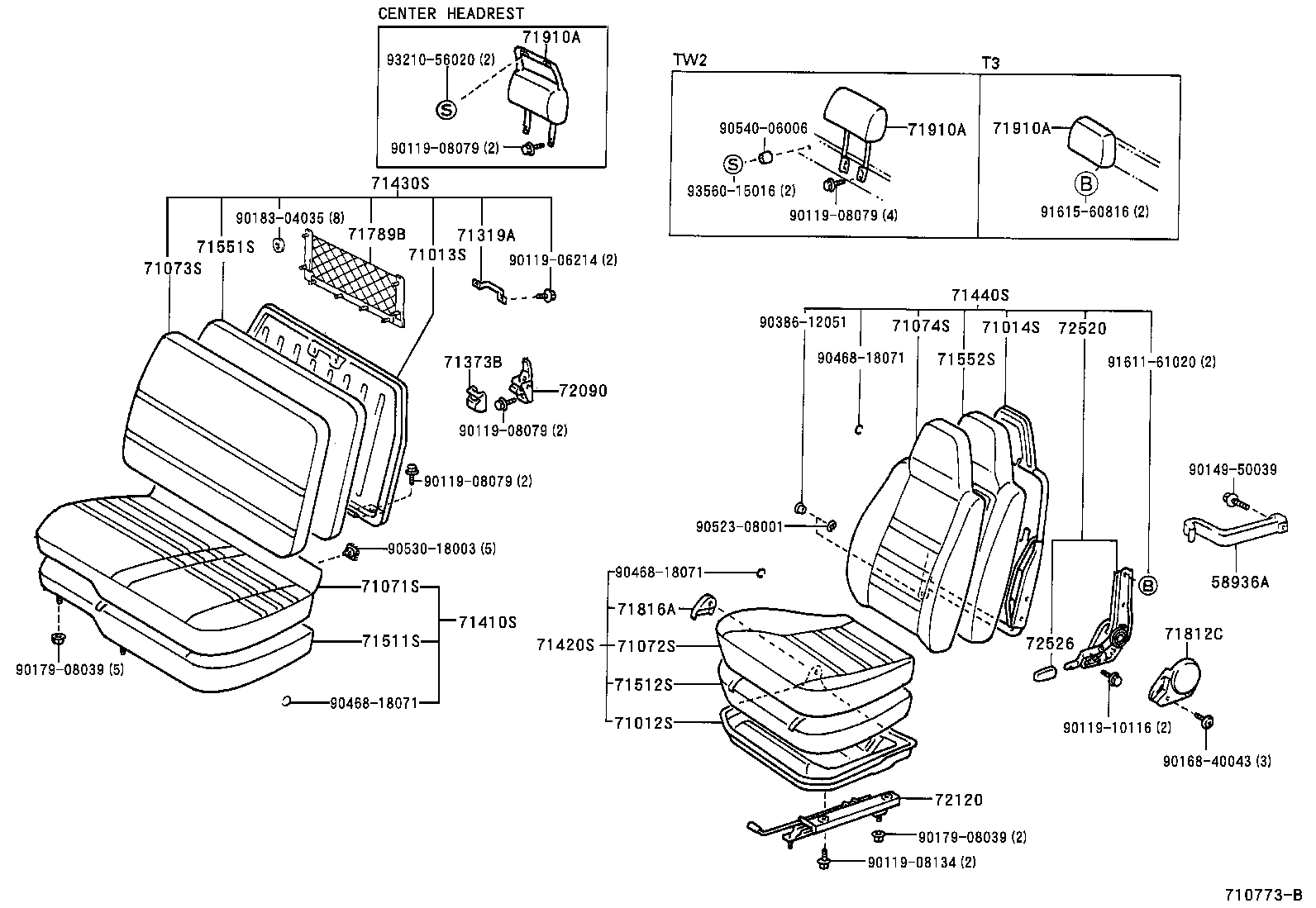

ILLUST NO. 1 OF 2(9505- )LHD

Click highlighted areas on diagram

diagram 58936A 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71789B 71812C 71816A 71910A 71910A 71910A 72090 72120 72520 72526 9011906214 9011908079 9011908079 9011908079 9011908079 9011908134 9011910116 9014950039 9016840043 9017908039 9017908039 9018304035 9038612051 9046818071 9046818071 9046818071 9052308001 9053018003 9054006006 9161161020 9161560816 9321056020 9356015016
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-95700B0

LY100,YY100..LHD

GRAY,TRIM1#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95412

LY100,YY100..LHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-9541601

LY100,YY100..LHD

BLACK,TRIM1#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-25020

LY100..LHD..EUR

 1
71014-95422

LY100,YY100..LHD

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37320B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37390B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074-37550B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71074-37550B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-25090B1

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71074-37470B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LY100,YY100

 1
71319-95404

LY100..TW2;LY100,YY100..ARL,GEN

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-95400B0

LY100,YY100

GRAY,TRIM1#

 1
71373-95400B0

LY100..TW2;LY100,YY100..ARL,GEN

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37370B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37390B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37410B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71430-25090B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-25090B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71440-37530B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LY100,YY100..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-37050

LY100..LHD..EUR

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LY100,YY100..LHD

 1
71552-95403

LY100..TW2;LY100,YY100..LHD..GEN

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37020

LY100,YY100..LHD

 1
71552-25020

LY100..LHD..EUR

 1
71789B - POCKET, FRONT SEAT BACK BOARD
71789-22010B1

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0

LY100,YY100..LHD

GRAY,TRIM1#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J00B0

LY100,YY100..LHD

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-26020B1

LY100..TW2

GRAY,TRIM1#

 1
71910-25010B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-26020B1

LY100..TW2

GRAY,TRIM1#

 1
71910-25010B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-26020B1

LY100..TW2

GRAY,TRIM1#

 1
71910-25010B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-95400B0

LY100..TW2;LY100,YY100..ARL,GEN

GRAY,TRIM1#

 1
72090-95400B0

LY100,YY100

GRAY,TRIM1#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37010

LY100,YY100..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37010B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06214
90119-08079
90119-08134
90119-10116
90149-50039
90168-40043
90179-08039
90183-04035
90386-12051
90468-18071
90523-08001
90530-18003
90540-06006
91611-61020
91615-60816
93210-56020
93560-15016

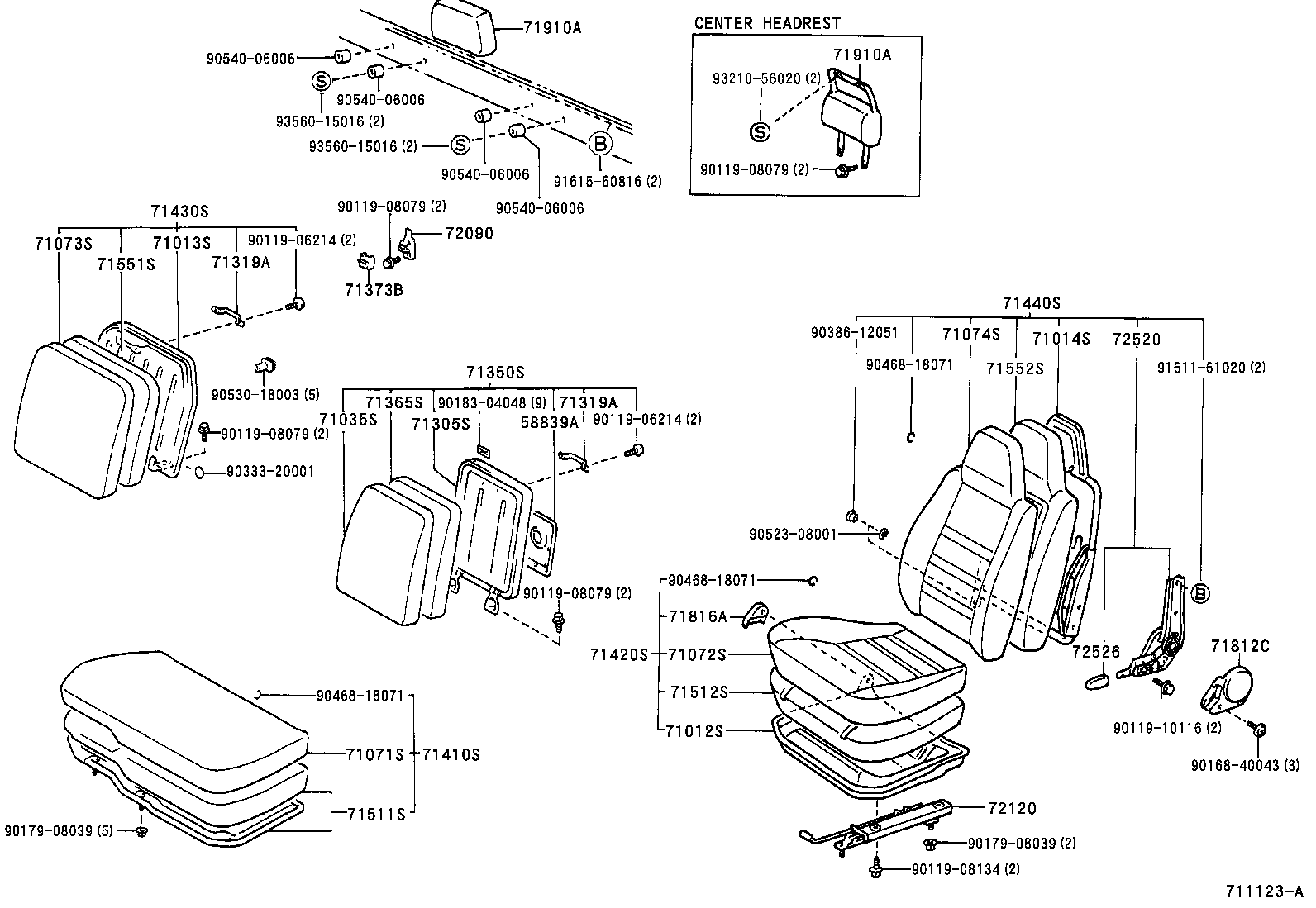

ILLUST NO. 1 OF 2(9805- )LY100..LHD

Click highlighted areas on diagram

diagram 58839A 71012S 71013S 71014S 71035S 71071S 71072S 71073S 71074S 71305S 71319A 71319A 71350S 71365S 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71812C 71816A 71910A 71910A 72090 72120 72520 72526 9011906214 9011906214 9011908079 9011908079 9011908079 9011908079 9011908134 9011910116 9016840043 9017908039 9017908039 9018304048 9033320001 9038612051 9046818071 9046818071 9046818071 9052308001 9053018003 9054006006 9054006006 9054006006 9054006006 9161161020 9161560816 9321056020 9356015016 9356015016
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95412

LY100,YY100..LHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-9541601

LY100,YY100..LHD

BLACK,TRIM1#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-25020

LY100..LHD..EUR

 1
71014-95422

LY100,YY100..LHD

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37320B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37390B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074-37550B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71074-37550B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-25090B1

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71074-37470B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LY100,YY100

 1
71319-95404

LY100..TW2;LY100,YY100..ARL,GEN

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LY100,YY100

 1
71319-95404

LY100..TW2;LY100,YY100..ARL,GEN

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-95400B0

LY100,YY100

GRAY,TRIM1#

 1
71373-95400B0

LY100..TW2;LY100,YY100..ARL,GEN

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37370B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37390B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37410B0

LY100..LHD..EUR

BLUISH GRAY,TRIM1#

 1
71430-25090B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-25090B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71440-37530B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LY100,YY100..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-37050

LY100..LHD..EUR

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

LY100,YY100..LHD

 1
71552-95403

LY100..TW2;LY100,YY100..LHD..GEN

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37020

LY100,YY100..LHD

 1
71552-25020

LY100..LHD..EUR

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0

LY100,YY100..LHD

GRAY,TRIM1#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J00B0

LY100,YY100..LHD

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-26020B1

LY100..TW2

GRAY,TRIM1#

 1
71910-25010B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-26020B1

LY100..TW2

GRAY,TRIM1#

 1
71910-25010B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-95400B0

LY100..TW2;LY100,YY100..ARL,GEN

GRAY,TRIM1#

 1
72090-95400B0

LY100,YY100

GRAY,TRIM1#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37010

LY100,YY100..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37010B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0

LY100,YY100..LHD

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06214
90119-08079
90119-08134
90119-10116
90168-40043
90179-08039
90183-04048
90333-20001
90386-12051
90468-18071
90523-08001
90530-18003
90540-06006
91611-61020
91615-60816
93210-56020
93560-15016

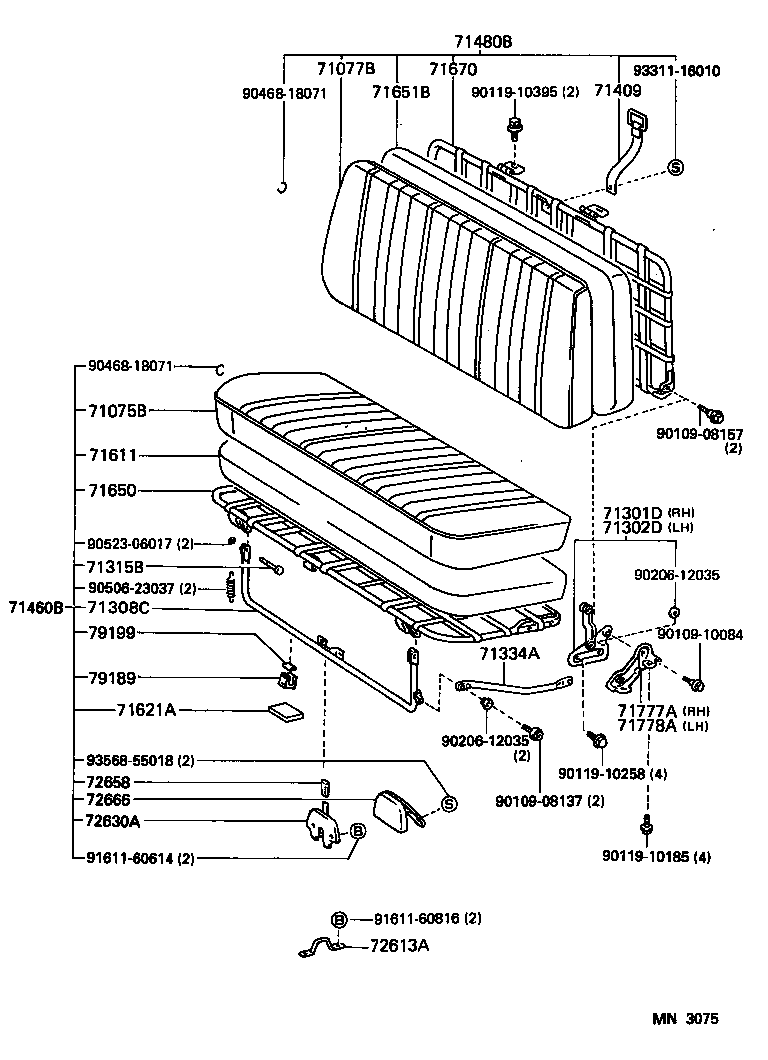

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71308C 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 72613A 72630A 72658 72666 79189 79199 9010908137 9010908157 9010910084 9011910185 9011910258 9011910395 9020612035 9020612035 9046818071 9046818071 9050623037 9052306017 9161160614 9161160816 9331116010 9356855018
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37100B3

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37080B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71301D - HINGE SUB-ASSY, REAR SEAT, RH
71301-95401

LY100..TW2

 1
71302D - HINGE SUB-ASSY, REAR SEAT, LH
71302-95401

LY100..TW2

 1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-95401

LY100..TW2

 1
71315B - PIN, REAR SEAT HINGE
71315-95011

LY100..TW2

 2
71334A - STOPPER, REAR SEAT LEG
71334-95400

LY100..TW2

 1
71409 - STOPPER SUB-ASSY, REAR SEAT BACK
71409-95A31

LY100..TW2

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37120B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-37080B0

LY100..TW2

BLUISH GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-37010

LY100..TW2

 1
71611-95401

LY100..TW2

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701

LY100..TW2

 6
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-95404

LY100..TW2

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-95400

LY100..TW2

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-95402

LY100..TW2

 1
71777A - PLATE, REAR SIDE SEAT HINGE, LOWER RH
71777-95400

LY100..TW2

 1
71778A - PLATE, REAR SIDE SEAT HINGE, LOWER LH
71778-95400

LY100..TW2

 1
72613A - STRIKER, FRONT SEAT LOCK
72613-95400

LY100..TW2

 1
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-95400

LY100..TW2

 1
72658 - KNOB, REAR SEAT HANDLE
72658-95701C0

LY100..TW2

BLACK,TRIM1#

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72666-95400

LY100..TW2

 1
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

LY100..TW2

 2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

LY100..TW2

 2
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10258
90119-10395
90206-12035
90468-18071
90506-23037
90523-06017
91611-60614
91611-60816
93311-16010
93568-55018
