LY100L-PSMASW3 (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

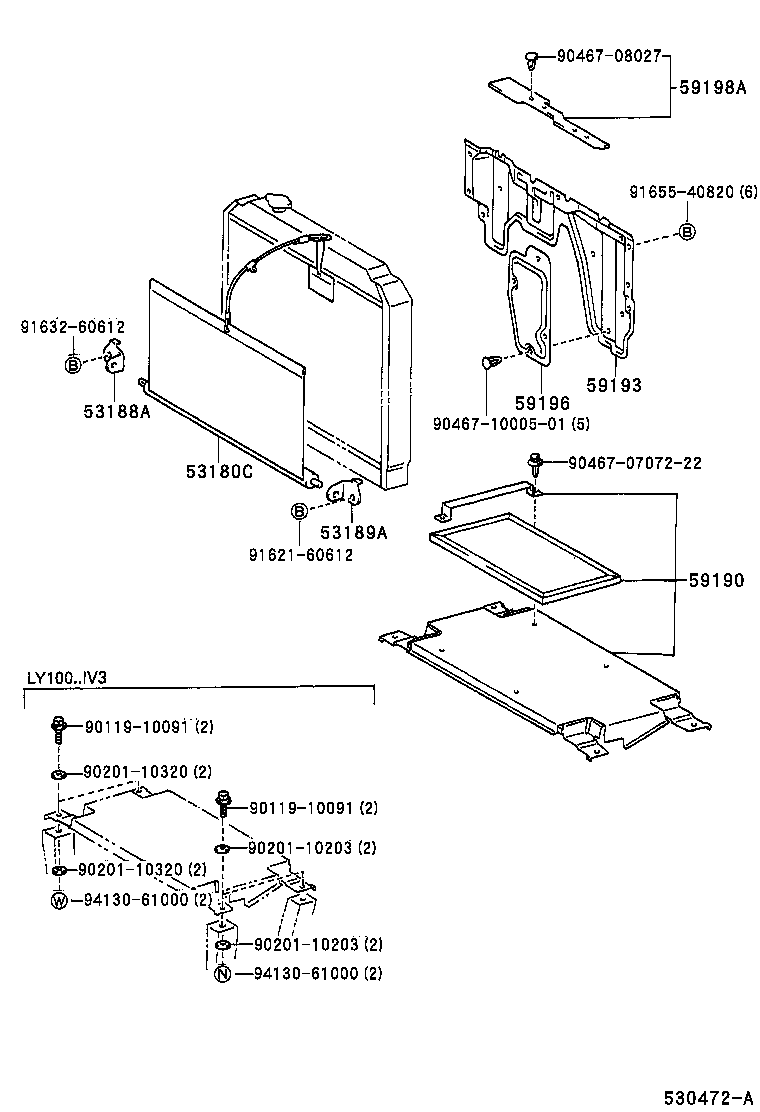

Click highlighted areas on diagram

diagram 53180C 53188A 53189A 59190 59193 59196 59198A 9011910091 9011910091 9020110203 9020110203 9020110320 9020110320 904670707222 9046708027 904671000501 9162160612 9163260612 9165540820 9413061000 9413061000
Part # Description Qty Price
53180C - SHUTTER ASSY, RADIATOR
53180-25020

LY100

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-37010

LY100

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-37010

LY100

 1
Common parts
90119-10091
90201-10203
90201-10320
90467-0707222
90467-08027
90467-1000501
91621-60612
91632-60612
91655-40820
94130-61000
