LY100L-PSMASW (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

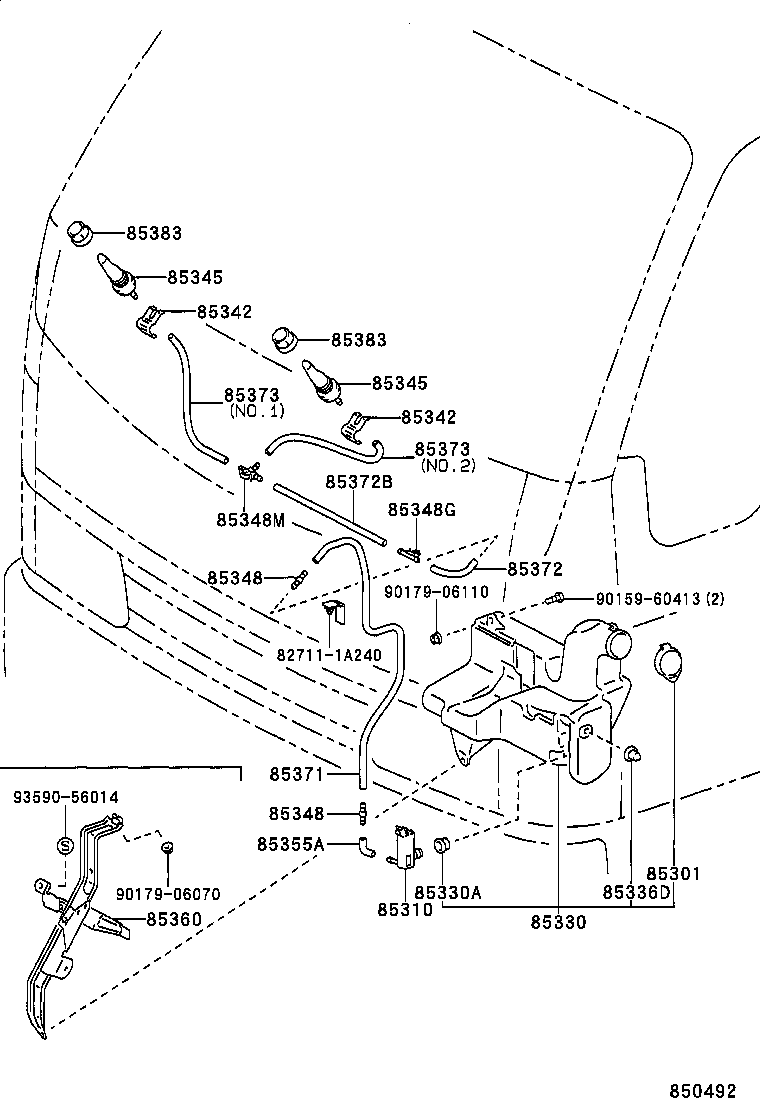

Click highlighted areas on diagram

diagram 827111A240 85301 85310 85330 85330A 85336D 85342 85342 85345 85345 85348 85348 85348G 85348M 85355A 85360 85371 85372 85372B 85373 85373 85383 85383 9015960413 9017906070 9017906110 9359056014
Part # Description Qty Price
85301 - INLET SUB-ASSY, WASHER
85301-17010

LY100,YY100

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

LY100,YY100

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-37040

LY100,YY100..LHD

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

LY100,YY100

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-20340

LY100,YY100

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

LY100,YY100

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

LY100,YY100

 2
85345 - NOZZLE, WINDSHIELD WASHER
85381-37020

LY100,YY100

 2
85345 - NOZZLE, WINDSHIELD WASHER
85381-37020

LY100,YY100

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

LY100,YY100

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

LY100,YY100

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85375-20800

LY100,YY100

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85378-33030

LY100,YY100

 1
85355A - JOINT, WINDSHIELD WASHER ELBOW
85355-14481

LY100,YY100

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85360-37020

LY100,YY100..LHD

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

LY100,YY100

*H,L=760

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-59135

LY100,YY100

L=130

 1
90446-06013

LY100,YY100

*H,L=130

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

LY100,YY100..LHD

*H,L=440

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LY100,YY100..LHD

*H,L=340,NO.2

 1
90099-33080

LY100,YY100..LHD

*H,L=410,NO.1

 1
90099-33299

LY100,YY100

*H,L=410,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LY100,YY100..LHD

*H,L=340,NO.2

 1
90099-33080

LY100,YY100..LHD

*H,L=410,NO.1

 1
90099-33299

LY100,YY100

*H,L=410,NO.1,NO.2

 1
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

LY100,YY100

 2
85383 - HOLDER, FRONT WASHER NOZZLE
85383-37010

LY100,YY100

 2
Common parts
82711-1A240
90159-60413
90179-06070
90179-06110
93590-56014
