LY100L-PSMASW (1995)
Toyota Dyna 100
Production
May 1995
-
Aug 2001
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )EUR

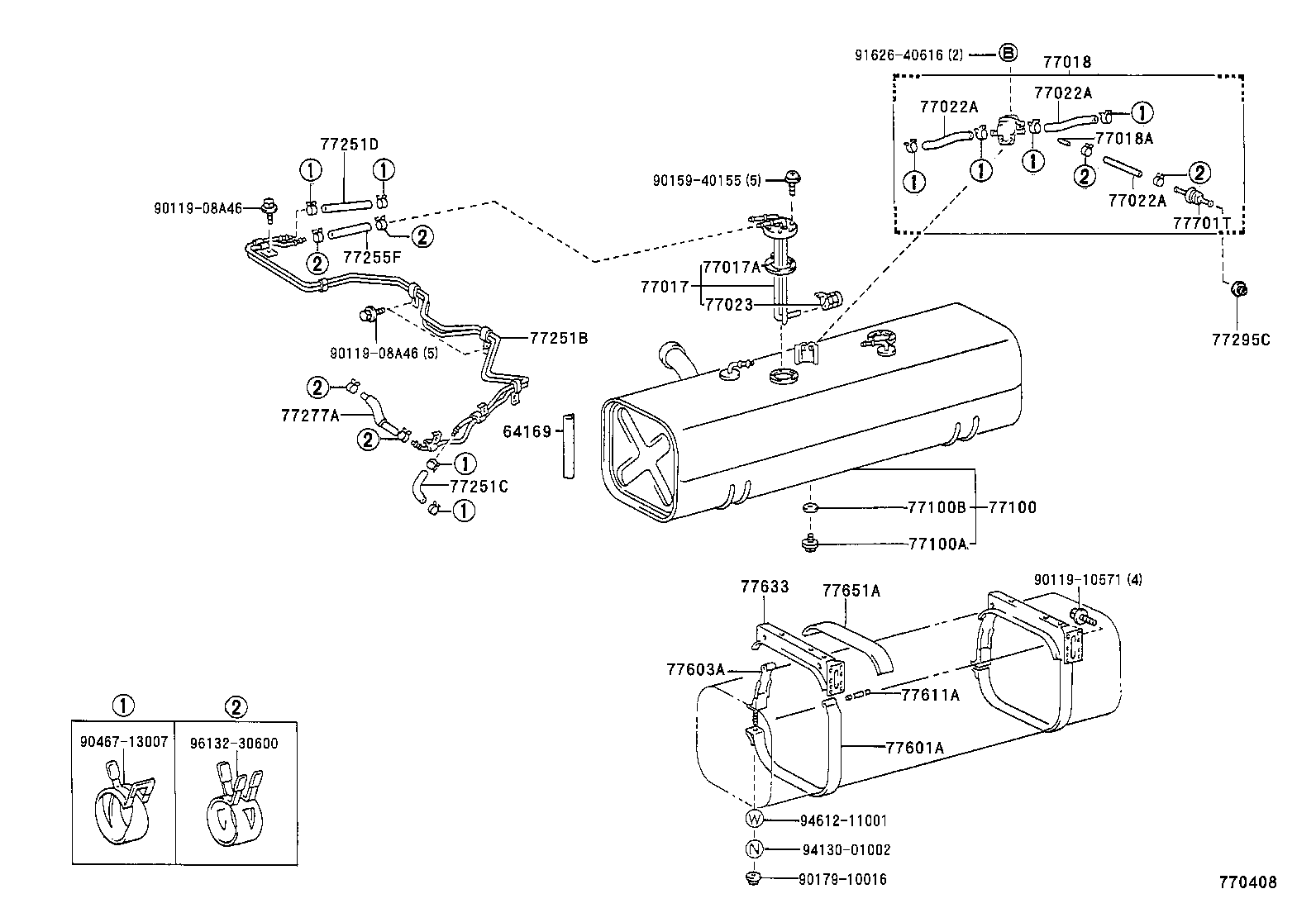

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64169 - PROTECTOR, FUEL INLET | ||||
| 64169-95A01 |
LY100..TW2 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26121 |
LY100 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY100,YY100 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26140 |
LY100..EUR |
1 | ||
| 77018A - ORIFICE, FUEL VAPOUR | ||||
| 90977-02001 |
LY100,YY100..EUR,GEN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
LY100..EUR *H,L=300 |
1 | ||
| 95333-08020 |
LY100,YY100 *H,L=160,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
LY100..EUR *H,L=300 |
1 | ||
| 95333-08020 |
LY100,YY100 *H,L=160,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
LY100..EUR *H,L=300 |
1 | ||
| 95333-08020 |
LY100,YY100 *H,L=160,ID=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LY100 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26420 |
LY100..EUR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LY100,YY100 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LY100,YY100 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-26070 |
LY100..TW2 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08030 |
LY100..TW2 *H,L=240,ID=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LY100 *H,L=150,ID=7.6 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY100 *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12109 |
LY100..RHD;LY100..LHD..EUR L=310 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
LY100..EUR |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LY100,YY100 |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LY100,YY100 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY100,YY100 |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
LY100,YY100 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LY100,YY100 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LY100..EUR |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10571 | ||||
| 90159-40155 | ||||
| 90179-10016 | ||||
| 90467-13007 | ||||
| 91626-40616 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
