LY100L-PSMASW (1995)

Toyota Dyna 100

Production May 1995 - Aug 2001
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

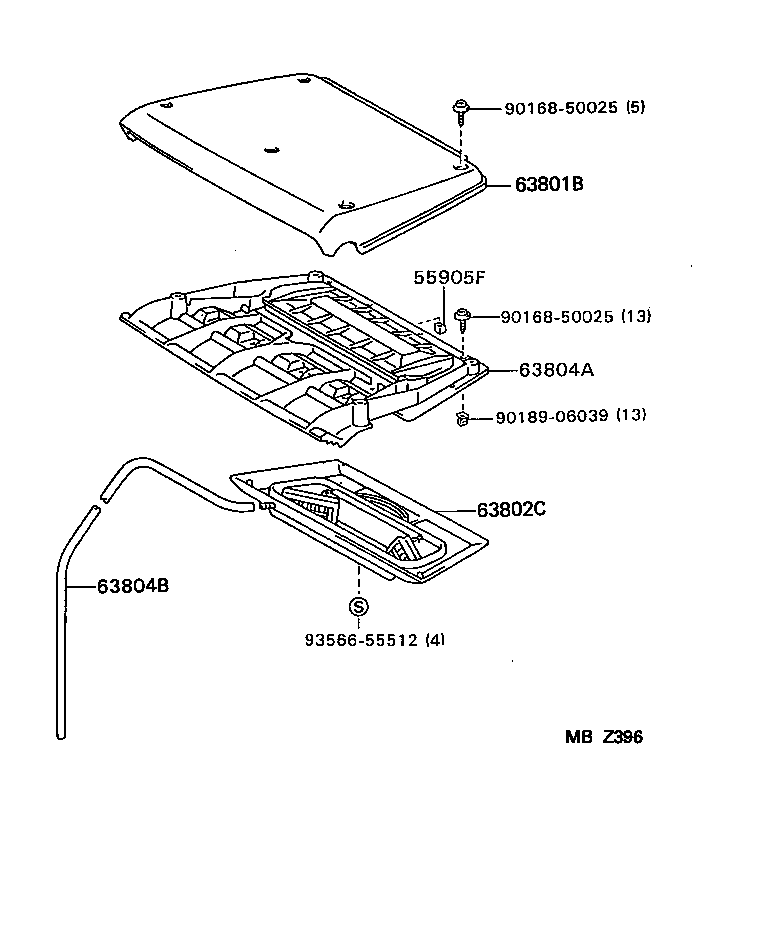

Click highlighted areas on diagram

diagram 55905F 63801B 63802C 63804A 63804B 9016850025 9016850025 9018906039 9356655512
Part # Description Qty Price
55905F - KNOB SUB-ASSY, CONTROL
55905-10110

LY100,YY100

 1
63801B - COVER SUB-ASSY, ROOF VENTILATOR
63801-95401

LY100,YY100

 1
63802C - COVER SUB-ASSY, ROOF VENTILATOR, NO.2
63802-95400B0

LY100;YY100..IV

LT.GRAY,TRIM1#

 1
63802-95400B0

LY100,YY100

LT.GRAY,TRIM1#

 1
63804A - HOUSING SUB-ASSY, ROOF VENTILATOR
63804-95400

LY100,YY100

 1
63804B - HOSE, DRAIN(FOR ROOF VENTILATOR)
88539-95402

LY100,YY100

 1
Common parts
90168-50025
90189-06039
93566-55512
