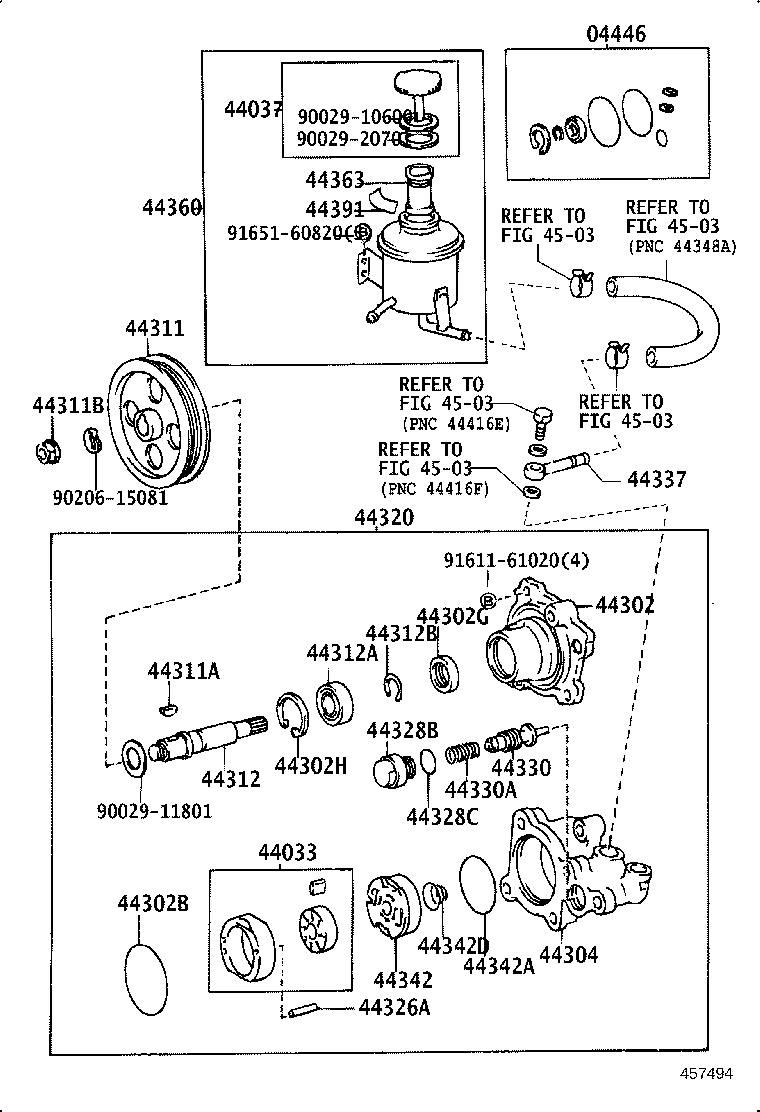

RZU100R-TKMQK3 (1997)
Toyota Dyna200
(9703- )RZU100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36110 |
RZU100 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-36060 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36080 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36170 |
RZU100 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20003 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-36170 |
RZU100 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-36060 |
RZU100 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18001 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90029-07001 |
RZU100 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-36100 |
RZU100 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36004 |
RZU100 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-37030 |
RZU100 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) L=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36100 |
RZU100 NO GROOVE |
1 | ||
| 44330-36080 |
RZU100 TWO GROOVE |
1 | ||
| 44330-36090 |
RZU100 ONE GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-37020 |
RZU100 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-36060 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-37050 |
RZU100 |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-36020 |
BU222,RZU100;BU142..ARL,EUR;BU10#,11#,140,141,21#,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 90029-11801 | ||||
| 90029-20701 | ||||
| 90206-15081 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 4503 | ||||
