RZU100L-TQMGK3 (1999)

Toyota Dyna200

Production Aug 1999 - Dec 2002
Engine 3RZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )3RZFE..15T

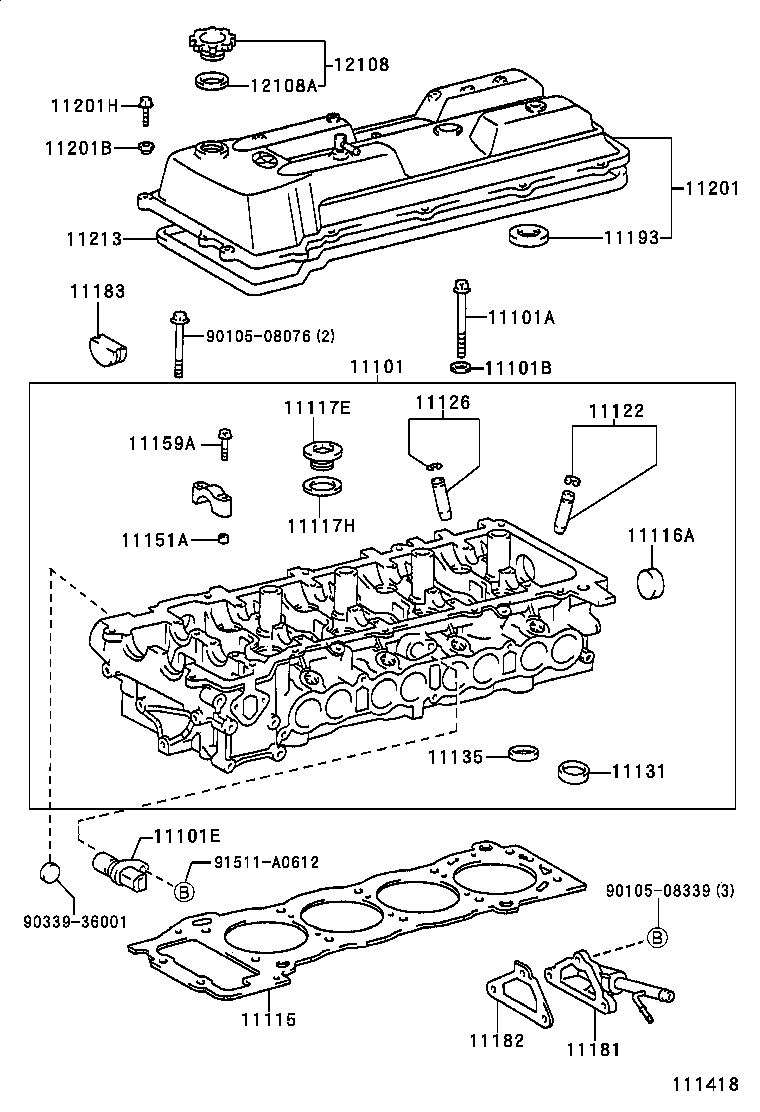

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11101E 11115 11116A 11117E 11117H 11122 11126 11131 11135 11151A 11159A 11181 11182 11183 11193 11201 11201B 11201H 11213 12108 12108A 9010508076 9010508339 9033936001 91511A0612
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-79276

3RZFE..RZU100

 1
11101E - SENSOR, CAM POSITION
90919-05026

3RZFE..RZU100..15T

 1
11135 - SEAT, EXHAUST VALVE
11135-75040

3RZFE..RZU100

STD

 8
11136-75040

3RZFE..RZU100

O/S 0.03

 8
Common parts
90105-08076
90105-08339
90339-36001
91511-A0612
