BU96L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1993
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

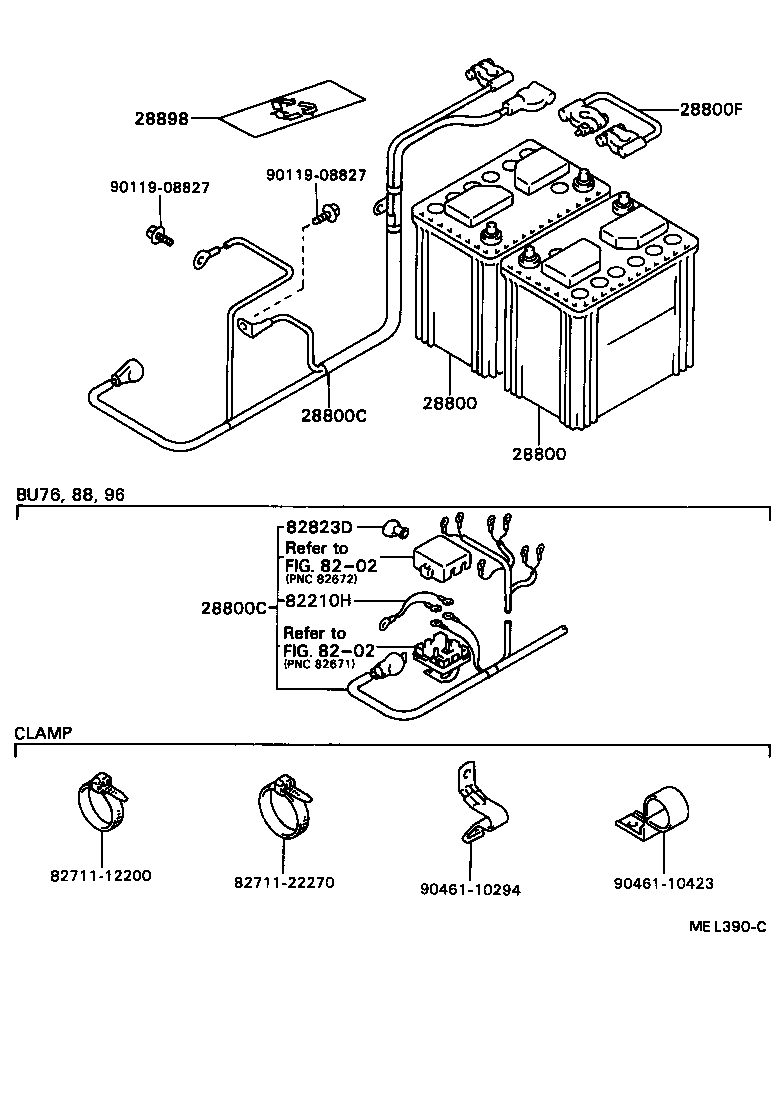

Click highlighted areas on diagram

diagram 28800 28800 28800C 28800C 28800F 28898 8202 8202 82210H 8271112200 8271122270 82823D 9011908827 9011908827 9046110294 9046110423
Part # Description Qty Price
28800 - BATTERY
28800-14010

14B..BU96

55D23R

 2
28800 - BATTERY
28800-14010

14B..BU96

55D23R

 2
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95475

11B,14B..BU76,88,96

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95475

11B,14B..BU76,88,96

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03006

11B,14B,3B..BU7#,88,9#

 1
82210H - FUSIBLE LINK
90982-08255

BU76,88,96

FL2 BLUE & FL3 WHITE

 1
82823D - CAP, TERMINAL
82823-95401

BU76,88,96

 1
Common parts
82711-12200
82711-22270
90119-08827
90461-10294
90461-10423
Linked diagrams
8202
