BU96L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1993
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110C 42110D 42110E 42181 9011910283 9411051000 9451201000
Part # Description Qty Price
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-36060

BU96

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-10060

BU8#,9#

S=19 & 12,L=46

 2
90116-10059

BU8#,9#

S=19 & 12,L=57

 2
42110 - HOUSING ASSY, REAR AXLE
42110-36750

BU96

 1
42110-36751

BU96

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

BU7#,8#,9#

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

BU7#,8#,9#

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

BU7#,8#,9#

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

BU7#,8#,9#

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

BU7#,8#,9#

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-36040

BU8#,96

 1
Common parts
90119-10283
94110-51000
94512-01000

ILLUST NO. 1 OF 2(8808- )BU8#,9#

Click highlighted areas on diagram

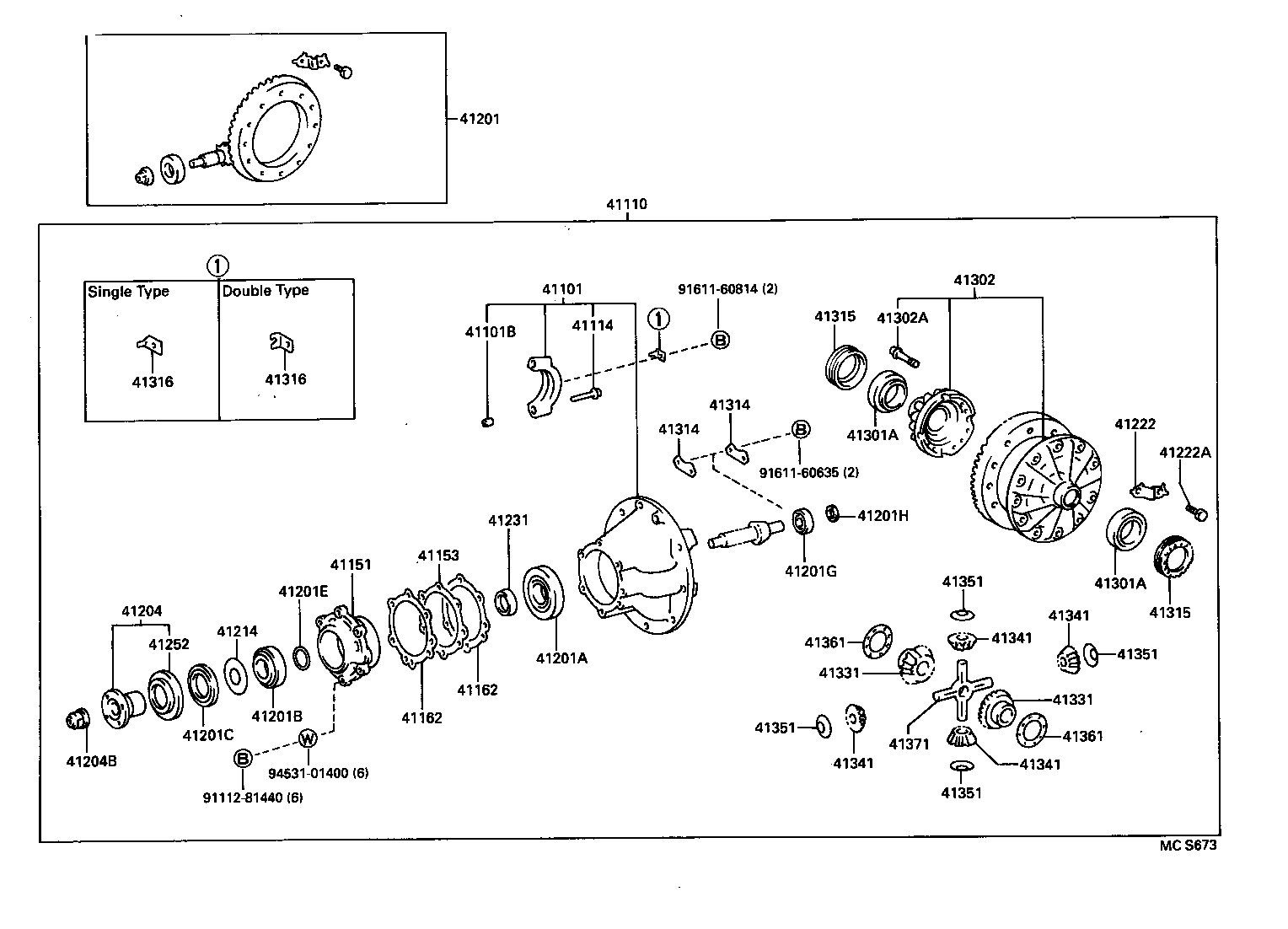

diagram 41101 41101B 41110 41114 41151 41153 41162 41162 41201 41201A 41201B 41201C 41201E 41201G 41201H 41204 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41302A 41314 41314 41315 41315 41316 41316 41331 41331 41341 41341 41341 41341 41351 41351 41351 41351 41361 41361 41371 9111281440 9161160635 9161160814 9453101400
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-36040

BU8#,9#

 1
41101B - PIN, RING (FOR REAR DIFFERENTIAL CARRIER)
90253-22002

BU8#,9#

 4
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-36500

BU84,96

*FGR=39:6=6.500

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-16009

BU8#,9#

 4
41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING
41151-36010

BU8#,9#

 1
41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE
41153-36020

BU8#,9#

T=0.15

 1
41153-36030

BU8#,9#

T=0.25

 1
41153-36040

BU8#,9#

T=0.45

 1
41153-36010

BU8#,9#

T=0.10

 1
41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER
41162-36010

BU8#,9#

 2
41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER
41162-36010

BU8#,9#

 2
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-39495

BU84,96

*FGR=39:6=6.500

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-49001

BU8#,9#

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-45001

BU8#,9#

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90311-58002

BU8#,9#

 1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90564-45021

BU8#,9#

T=1.82

 1
90564-45023

BU8#,9#

T=1.86

 1
90564-45024

BU8#,9#

T=1.88

 1
90564-45027

BU8#,9#

T=2.10

 1
90564-45020

BU8#,9#

T=1.80

 1
90564-45028

BU8#,9#

T=2.20

 1
90564-45034

BU8#,9#

T=2.80

 1
90564-45035

BU8#,9#

T=2.90

 1
90564-45030

BU8#,9#

T=2.40

 1
90564-45022

BU8#,9#

T=1.84

 1
90564-45038

BU8#,9#

T=3.20

 1
90564-45025

BU8#,9#

T=1.90

 1
90564-45033

BU8#,9#

T=2.70

 1
90564-45036

BU8#,9#

T=3.00

 1
90564-45026

BU8#,9#

T=2.00

 1
90564-45031

BU8#,9#

T=2.50

 1
90564-45037

BU8#,9#

T=3.10

 1
90564-45029

BU8#,9#

T=2.30

 1
90564-45049

BU8#,9#

T=1.87

 1
90564-45032

BU8#,9#

T=2.60

 1
90564-45047

BU8#,9#

T=1.83

 1
90564-45039

BU8#,9#

T=3.30

 1
90564-45048

BU8#,9#

T=1.85

 1
90564-45050

BU8#,9#

T=1.89

 1
90564-45046

BU8#,9#

T=1.81

 1
41201G - BEARING, DIFFERENTIAL DRIVE PINION CYLINDLICAL ROLLER
90365-25015

BU8#,9#

 1
41201H - RING, DRIVE PINION CYLINDRICAL ROLLER BEARING LOCKING
90520-23034

BU8#,9#

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-36060

BU8#,9#

 1
41204B - NUT (FOR REAR DRIVE PINION)
90179-24001

BU8#,9#

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-36020

BU8#,9#

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-36030

BU8#,9#

 6
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-16015

BU8#,9#

 12
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-36050

BU8#,9#

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-36020

BU8#,9#

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-60001

BU8#,9#

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-60001

BU8#,9#

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41301-36040

BU8#,9#

 1
41302A - BOLT(FOR REAR DIFFERENTIAL CASE)
90105-12047

BU8#,9#

 12
41314 - RETAINER, DRIVE PINION BEARING
41314-36010

BU8#,9#

RR

 1
41304-36010

BU8#,9#

FR

 1
41314 - RETAINER, DRIVE PINION BEARING
41314-36010

BU8#,9#

RR

 1
41304-36010

BU8#,9#

FR

 1
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-36020

BU8#,9#

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-36020

BU8#,9#

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-36020

BU8#,9#

SINGLE TYPE

 2
41317-36020

BU8#,9#

DOUBLE TYPE

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-36020

BU8#,9#

SINGLE TYPE

 2
41317-36020

BU8#,9#

DOUBLE TYPE

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-36031

BU8#,9#

 2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-36031

BU8#,9#

 2
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU8#,9#

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU8#,9#

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU8#,9#

 4
41341 - PINION, REAR DIFFERENTIAL
41341-36011

BU8#,9#

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU8#,9#

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU8#,9#

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU8#,9#

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-36010

BU8#,9#

 4
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-36020

BU8#,9#

T=1.5

 2
41361-36040

BU8#,9#

T=1.7

 2
41361-36010

BU8#,9#

T=1.4

 2
41361-36030

BU8#,9#

T=1.6

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-36020

BU8#,9#

T=1.5

 2
41361-36040

BU8#,9#

T=1.7

 2
41361-36010

BU8#,9#

T=1.4

 2
41361-36030

BU8#,9#

T=1.6

 2
41371 - SPIDER, REAR DIFFERENTIAL
41371-36020

BU8#,9#

 1
Common parts
91112-81440
91611-60635
91611-60814
94531-01400
