BU88L-MDDHTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

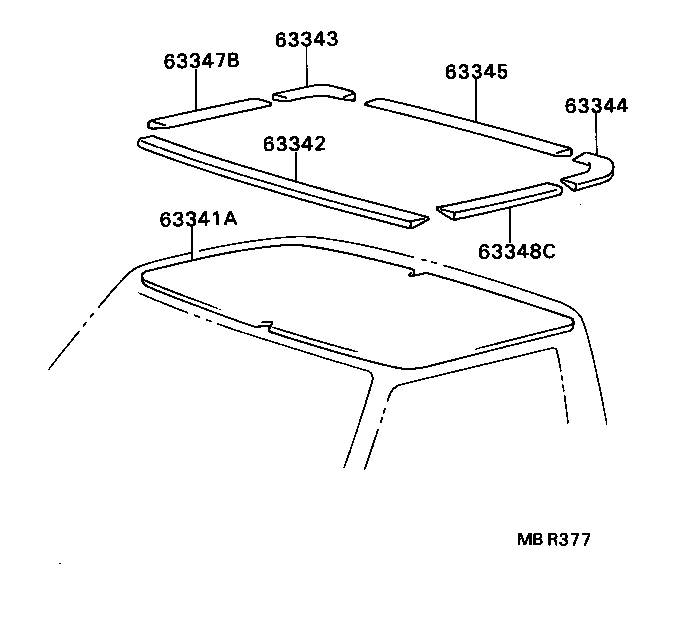

Click highlighted areas on diagram

diagram 63341A 63342 63343 63344 63345 63347B 63348C
Part # Description Qty Price
63341A - SILENCER, ROOF, NO.1
63341-9541206

BU76,88

W(ROOF VENTIRATOR),BROWN,TRIM4#

 1
63341-9541106

BU76,88

BROWN,TRIM4#

 1
63341-9541206

BU88

PORTUGAL SPEC OR W(ROOF VENTIRATOR),BROWN,TRIM4#

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-95403

BU7#,88,9#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-95400

BU7#,88,9#

 1
63344 - PAD, ROOF SILENCER, NO.4
63344-95401

BU7#,88,9#

 1
63345 - PAD, ROOF SILENCER, NO.5
63345-95400

BU7#,88,9#

 1
63347B - PAD, ROOF SIDE RAIL SILENCER, RH
63347-95400

BU7#,88,9#

 1
63348C - PAD, ROOF SIDE RAIL SILENCER, LH
63348-95400

BU7#,88,9#

 1
