BU84L-MDDTW3 (1988)
Toyota Dyna200
Production
Aug 1988
-
Oct 1992
Engine
11B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )BU84

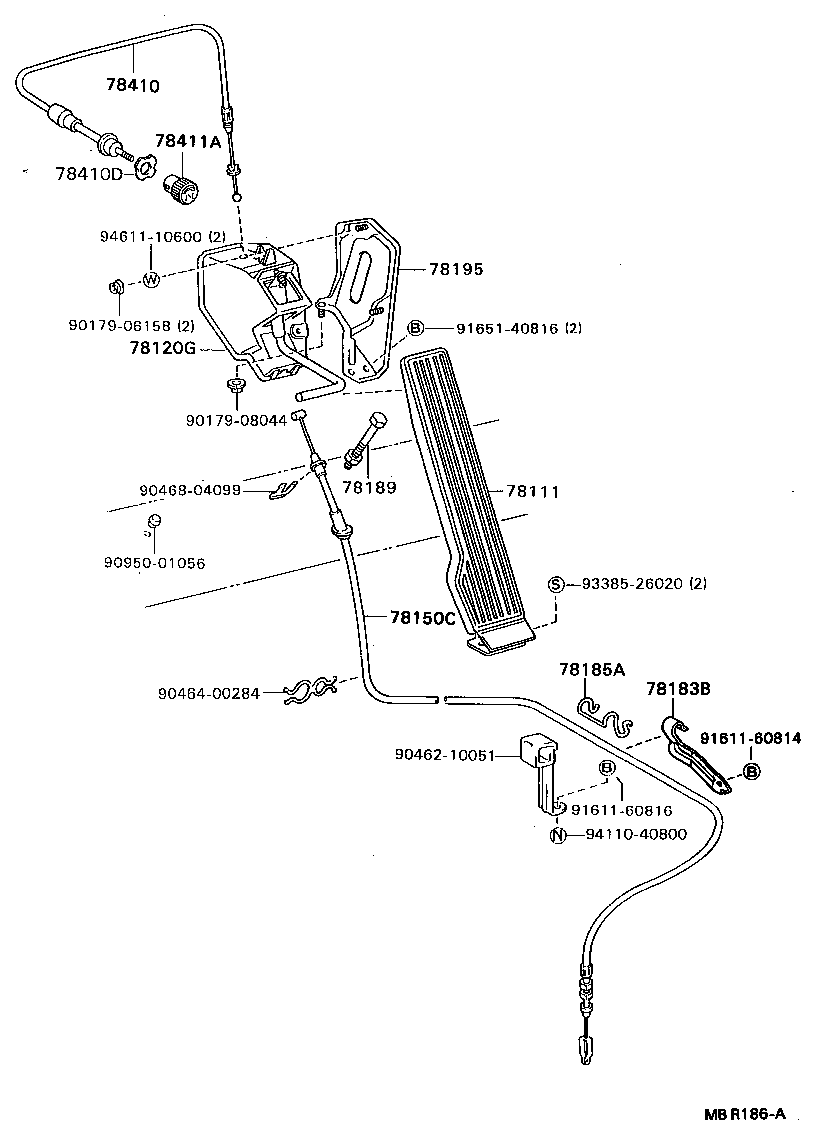

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95014 |
BU84,89 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78202-95401 |
BU7#,8#,9# |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-95481 |
BU84 |
1 | ||
| 78150-37180 |
BU84 |
1 | ||
| 78150-95488 |
BU84 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95407 |
BU76,84,88,96 |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78169-95408 |
BU84 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95402 |
BU84,89 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-95401 |
BU7#,8#,9# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78404-95012 |
BU7#,8#,9# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
BU7#,8#,9# |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-22010 |
BU7#,8#,9# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08044 | ||||
| 90462-10051 | ||||
| 90464-00284 | ||||
| 90468-04099 | ||||
| 90950-01056 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40816 | ||||
| 93385-26020 | ||||
| 94110-40800 | ||||
| 94611-10600 | ||||
