BU84L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

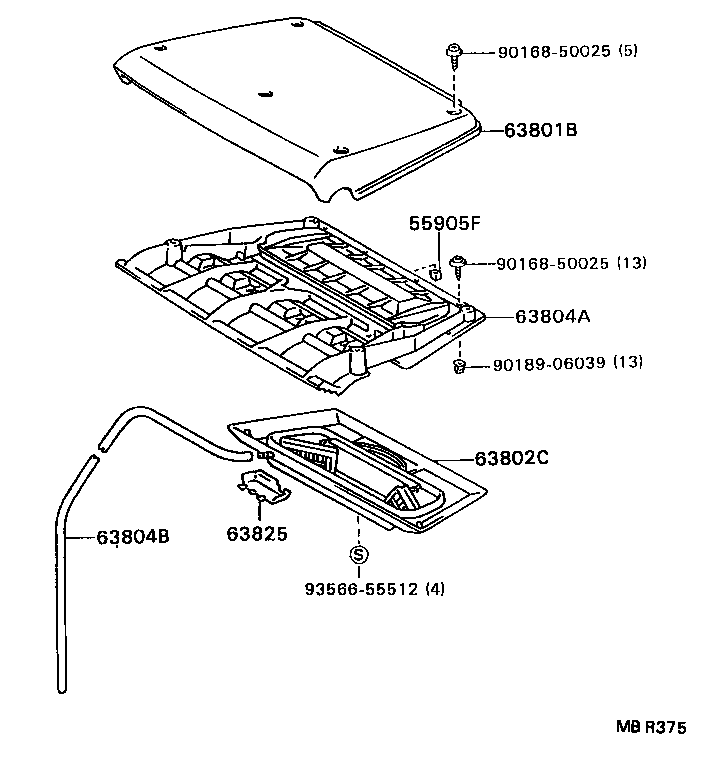

Click highlighted areas on diagram

diagram 55905F 63801B 63802C 63804A 63804B 63825 9016850025 9016850025 9018906039 9356655512
Part # Description Qty Price
55905F - KNOB SUB-ASSY, CONTROL
55905-10110

BU76,8#,96

 1
63801B - COVER SUB-ASSY, ROOF VENTILATOR
63801-95401

BU76,8#,96

 1
63802C - COVER SUB-ASSY, ROOF VENTILATOR, NO.2
63802-9540006

BU76,8#,96

BROWN,TRIM4#

 1
63802-9540006

BU76,84,96

BROWN,TRIM4#

 1
63804A - HOUSING SUB-ASSY, ROOF VENTILATOR
63804-95400

BU76,8#,96

 1
63804B - HOSE, DRAIN(FOR ROOF VENTILATOR)
88539-95402

BU76,8#,96

 1
Common parts
90168-50025
90189-06039
93566-55512
