BU84L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

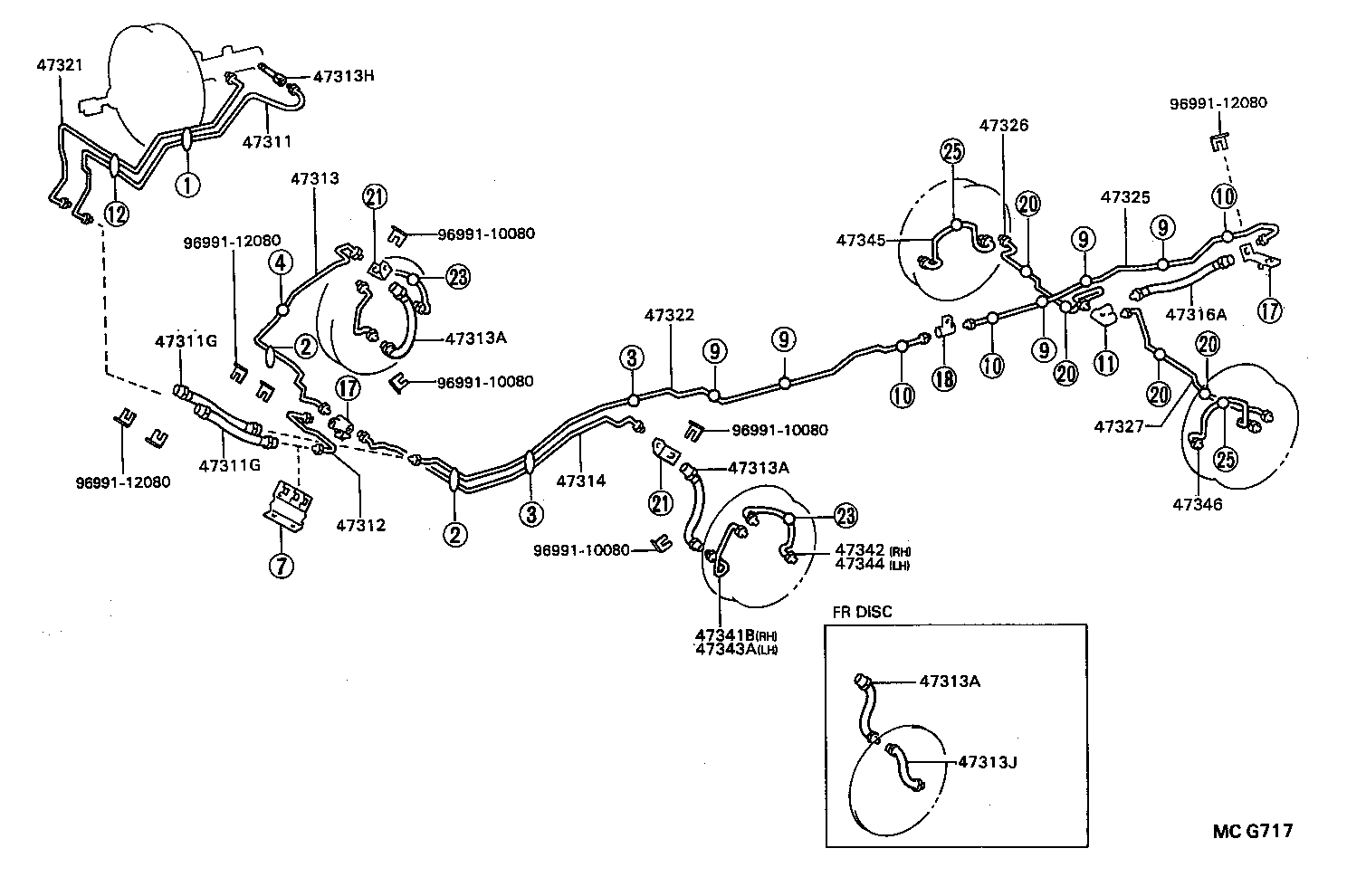

ILLUST NO. 1 OF 3(8808- )BU84,89

Click highlighted areas on diagram

diagram 47311 47311G 47311G 47312 47313 47313A 47313A 47313A 47313H 47313J 47314 47316A 47321 47322 47325 47326 47327 47341B 47342 47343A 47344 47345 47346 9699110080 9699110080 9699110080 9699110080 9699112080 9699112080 9699112080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-36420

BU84

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-33705

BU84,89

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96932-33705

BU84,89

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-36250

BU84,89

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-36160

BU84,89

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU84,89

 2
96940-33305

BU84,89

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU84,89

 2
96940-33305

BU84,89

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02470

BU84,89

 2
96940-33305

BU84,89

W(FR DISC BRAKE RR AUTO ADJUSTER)

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90404-12007

BU84,89

 1
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02521

BU7#,8#,92

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-36230

BU84

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96912-34005

BU84,89

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-36230

BU84

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-36212

BU84

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-36310

BU84

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-36150

BU8#,92

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-36180

BU8#,92

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36090

BU7#,8#,92

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36030

BU7#,8#,92

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36090

BU7#,8#,92

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU7#,8#,92

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36040

BU7#,8#,92

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36040

BU7#,8#,92

 1
Common parts
96991-10080
96991-12080

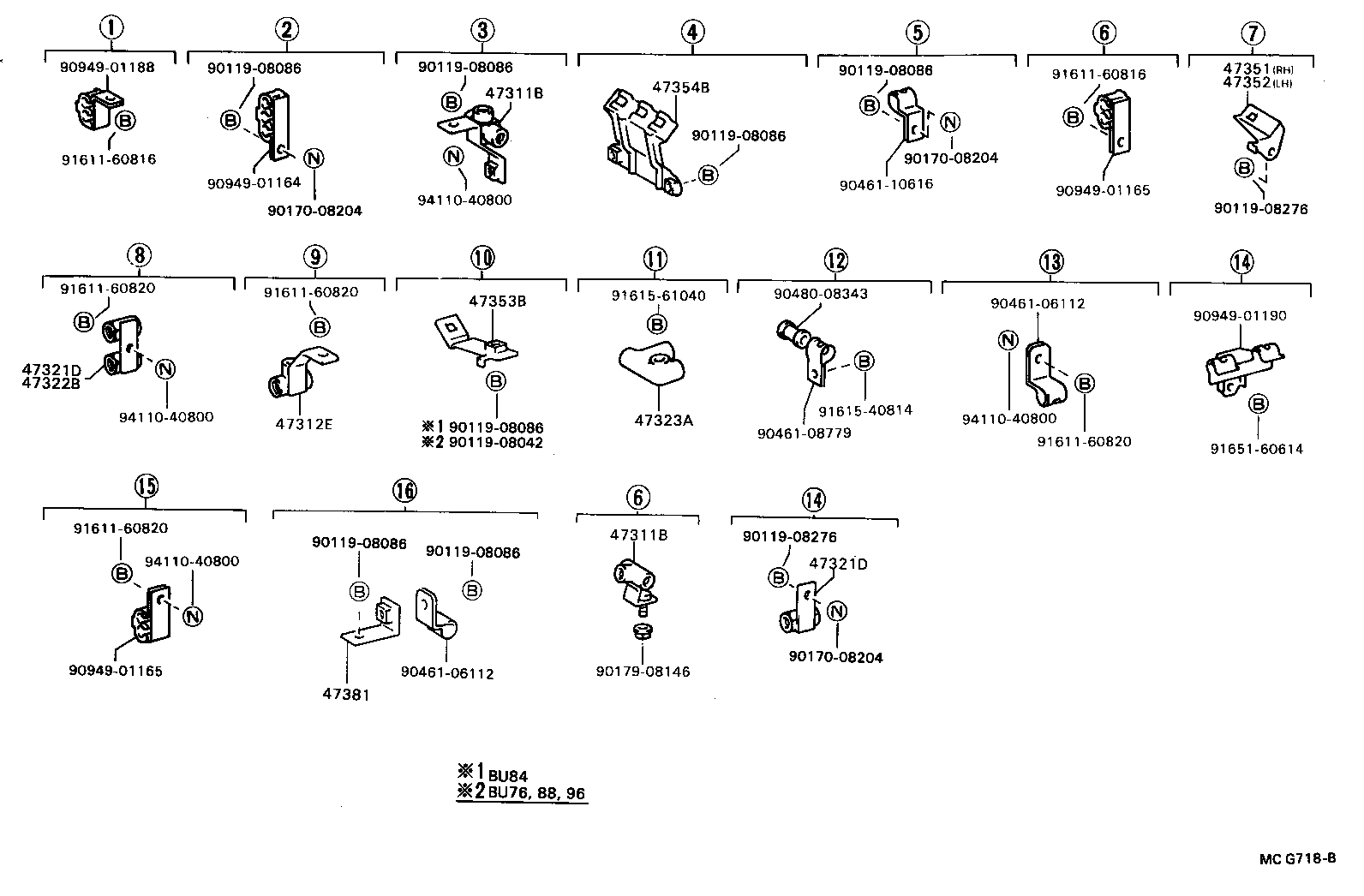

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 47311B 47311B 47312E 47321D 47321D 47322B 47323A 47351 47352 47353B 47354B 47381 9011908042 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9011908276 9011908276 9017008204 9017008204 9017008204 9017908146 9046106112 9046106112 9046108779 9046110616 9048008343 9094901164 9094901165 9094901165 9094901188 9094901190 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161540814 9161561040 9165160614 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12005

BU84,89

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-12005

BU84,89

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU84

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-12014

BU84

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10100

BU8#,9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36131

BU84,89

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47351-36131

BU84,89

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-36171

BU84,89

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-36080

BU84,89

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-36060

BU84,89

 2
Common parts
90119-08042
90119-08086
90119-08276
90170-08204
90179-08146
90461-06112
90461-08779
90461-10616
90480-08343
90949-01164
90949-01165
90949-01188
90949-01190
91611-60816
91611-60820
91615-40814
91615-61040
91651-60614
94110-40800
