BU79L-MDDTW3 (1992)
Toyota Dyna200
Production
Oct 1992
-
May 1995
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

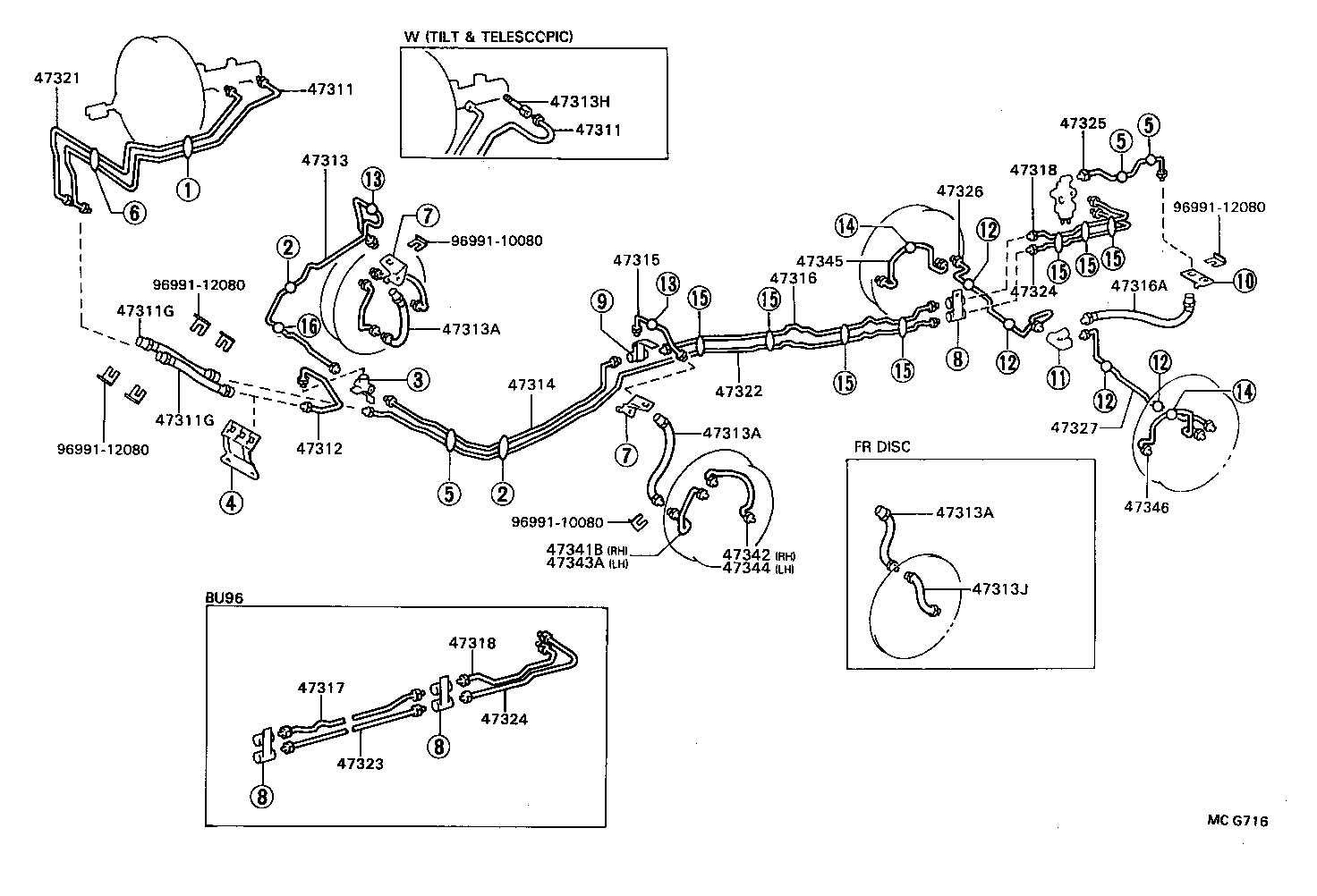

ILLUST NO. 1 OF 3(8808-9310)BU7#,88,9# ; (9310- )BU79,92
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36460 |
BU88,9# |
1 | ||
| 47311-36470 |
BU7# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36460 |
BU88,9# |
1 | ||
| 47311-36470 |
BU7# |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-34305 |
BU7#,88,9# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-34305 |
BU7#,88,9# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36240 |
BU7#,88,9# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36200 |
BU7#,88,9# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU7#,88,92 |
2 | ||
| 90947-02744 |
BU79,92 W(FR DISC BRAKE RR AUTO ADJUSTER) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU7#,88,92 |
2 | ||
| 90947-02744 |
BU79,92 W(FR DISC BRAKE RR AUTO ADJUSTER) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02566 |
BU7#,88,92 |
2 | ||
| 90947-02744 |
BU79,92 W(FR DISC BRAKE RR AUTO ADJUSTER) |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90404-12008 |
BU7#,88,9# |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU7#,8#,92 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36270 |
BU7#,88,9# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36200 |
BU7#,88,9# |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36230 |
BU7#,88,9# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34105 |
BU7#,88,9# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36160 |
BU7# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-36160 |
BU7# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36190 |
BU7# |
1 | ||
| 47321-36210 |
BU88,9# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36270 |
BU7#,88,9# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36070 |
BU7# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36070 |
BU7# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36150 |
BU7#,88,92 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36140 |
BU7# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36140 |
BU7# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36090 |
BU7#,8#,92 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
BU7#,8#,92 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36090 |
BU7#,8#,92 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36030 |
BU7#,8#,92 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36040 |
BU7#,8#,92 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BU7#,8#,92 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
