BU79L-MDDTW3 (1992)
Toyota Dyna200
Production
Oct 1992
-
May 1995
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9210-9303)BU79,89,92

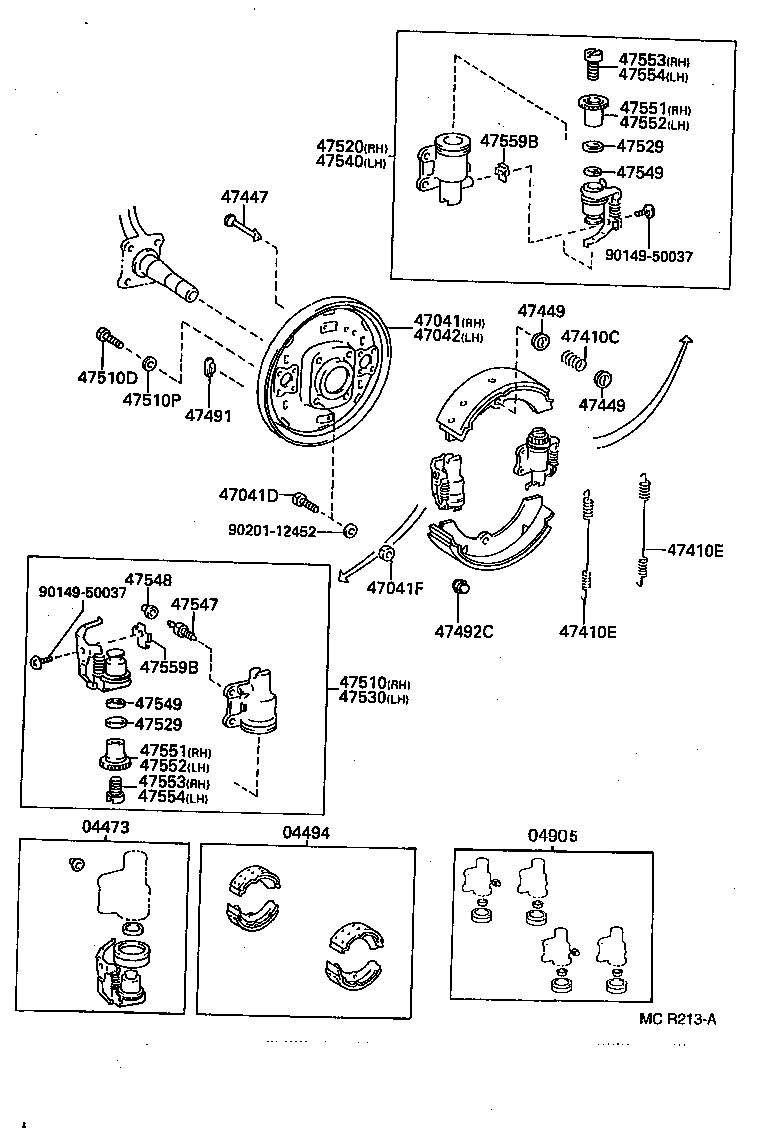

Click highlighted areas on diagram
W(AUTO ADJUSTER),CYLINDER CUP:PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36150 |
BU79,89,92 |
1 | ||
| 04905-36100 |
BU79,89,92 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36131 |
BU79,89,92 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU7#,8#,92 |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU7#,8#,92 |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36131 |
BU79,89,92 |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU7#,8#,9# |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU7#,8#,9# |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU7#,8#,9# |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU7#,8#,92 |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU7#,8#,9# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU7#,8#,9# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU79,89,92 |
8 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
BU79,89,92 |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36120 |
BU79,89,92 |
1 | ||
| 47510-36121 |
BU79,89,92 |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU79,89,92 |
2 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BU79,89,92 |
2 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU7#,8#,9# |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU7#,8#,9# |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36121 |
BU79,89,92 |
1 | ||
| 47520-36120 |
BU79,89,92 |
1 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU79,89,92 |
4 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU79,89,92 |
4 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36120 |
BU79,89,92 |
1 | ||
| 47530-36121 |
BU79,89,92 |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47502-36021 |
BU79,89,92 LH |
2 | ||
| 47501-36021 |
BU79,89,92 RH |
2 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47502-36021 |
BU79,89,92 LH |
2 | ||
| 47501-36021 |
BU79,89,92 RH |
2 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU7#,8#,92 |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BU7#,8#,92 |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36120 |
BU79,89,92 |
1 | ||
| 47540-36121 |
BU79,89,92 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU7#,8#,9# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU7#,8#,9# |
2 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU79,89,92 |
4 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU79,89,92 |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU79,89,92 |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU79,89,92 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU79,89,92 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU79,89,92 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU79,89,92 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU79,89,92 |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU79,89,92 |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU79,89,92 |
2 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU79,89,92 |
4 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU79,89,92 |
4 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-12452 | ||||
(9303- )BU79,89,92
Click highlighted areas on diagram
W(AUTO ADJUSTER),CYLINDER CUP:RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36050 |
BU79,89,92 RH |
2 | ||
| 04473-36060 |
BU79,89,92 LH |
2 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36150 |
BU79,89,92 |
1 | ||
| 04905-36100 |
BU79,89,92 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36131 |
BU79,89,92 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12113 |
BU7#,8#,92 |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BU7#,8#,92 |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36131 |
BU79,89,92 |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU7#,8#,9# |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU7#,8#,9# |
4 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BU7#,8#,9# |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36030 |
BU7#,8#,92 |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU7#,8#,9# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BU7#,8#,9# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BU79,89,92 |
8 | ||
| 47492C - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47492-28010 |
BU79,89,92 |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36120 |
BU79,89,92 |
1 | ||
| 47510-36121 |
BU79,89,92 |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
BU7#,8#,9# |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
BU7#,8#,9# |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36121 |
BU79,89,92 |
1 | ||
| 47520-36120 |
BU79,89,92 |
1 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU79,89,92 |
4 | ||
| 47529 - SEAL, FRONT WHEEL BRAKE CYLINDER ADJUST DUST | ||||
| 47529-36010 |
BU79,89,92 |
4 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36120 |
BU79,89,92 |
1 | ||
| 47530-36121 |
BU79,89,92 |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36120 |
BU79,89,92 |
1 | ||
| 47540-36121 |
BU79,89,92 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BU7#,8#,9# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BU7#,8#,9# |
2 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU79,89,92 |
4 | ||
| 47549 - SEAT, FRONT BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BU79,89,92 |
4 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU79,89,92 |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47506-36010 |
BU79,89,92 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU79,89,92 |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47507-36010 |
BU79,89,92 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU79,89,92 |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36070 |
BU79,89,92 |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU79,89,92 |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36070 |
BU79,89,92 |
2 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU79,89,92 |
4 | ||
| 47559B - SPING, FRONT AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BU79,89,92 |
4 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-12452 | ||||
