BU79L-MDDTW3 (1992)
Toyota Dyna200
Production
Oct 1992
-
May 1995
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )BU79,89,92

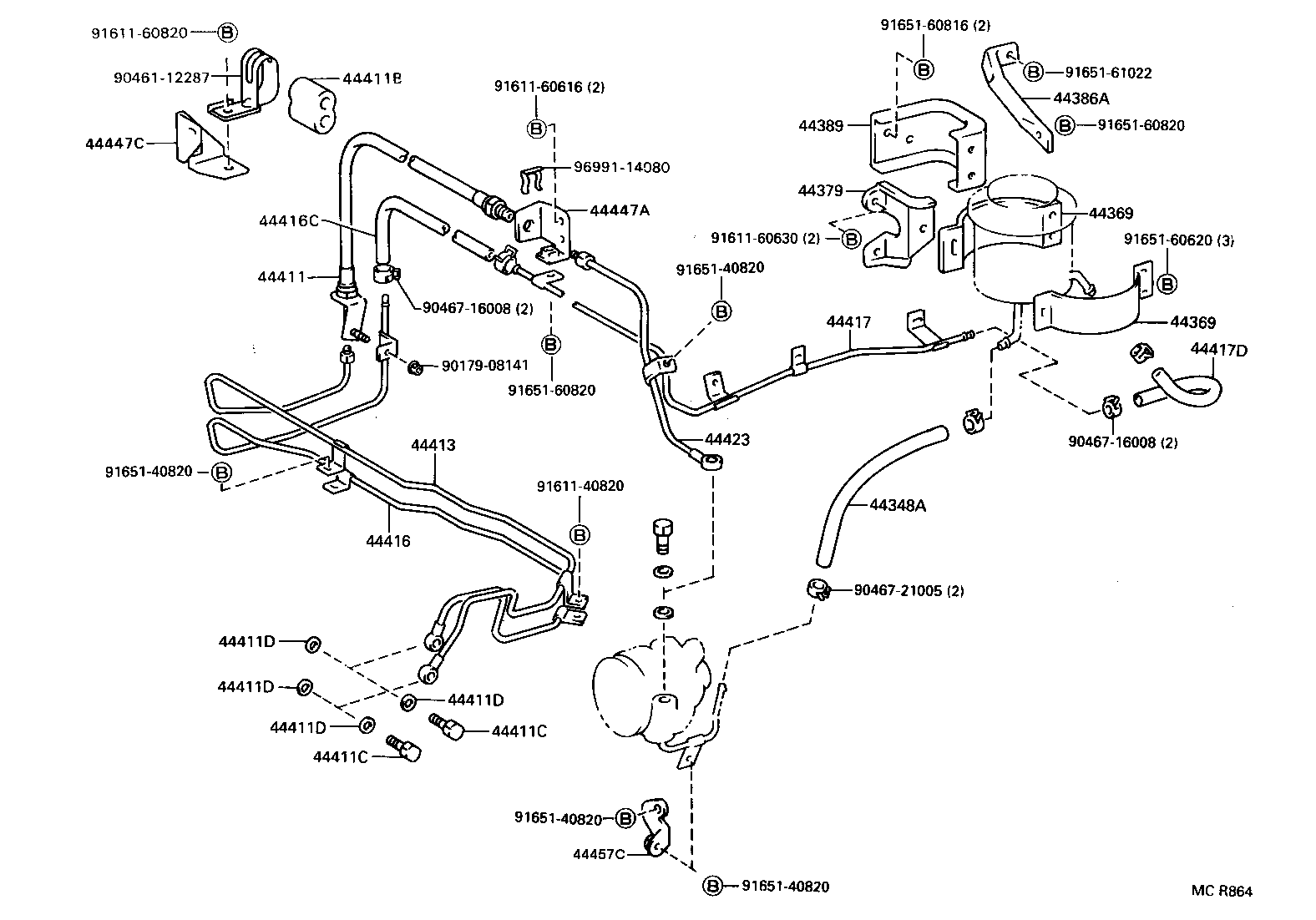

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU79,92 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU79,92 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-36150 |
BU79,92 |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36100 |
BU79,92 |
1 | ||
| 44389 - BRACKET, OIL RESERVOIR, NO.3 | ||||
| 44389-36060 |
BU79,92 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-36141 |
BU7#,88,92 |
1 | ||
| 44411-36142 |
BU79,92 |
1 | ||
| 44411B - CUSHION(FOR PRESSURE FEED HOSE) | ||||
| 90540-18002 |
BU7#,88,92 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-36050 |
BU7#,88,92 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-36190 |
BU7#,88,92 |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18136 |
BU7#,88,92 |
1 | ||
| 44447C - BRACKET, HOSE SUPPORT NO.2 | ||||
| 44447-36090 |
BU7#,88,92 |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90461-12287 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-40820 | ||||
| 91611-60616 | ||||
| 91611-60630 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 96991-14080 | ||||
