BU76L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(8808- )

Click highlighted areas on diagram

diagram 8271130070 84110 84140 84310 84312 84329 84650 9046313003 9046313003 9046315003 9046400232 9331514012 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-39565

BU76,88,96

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-36130

BU76,88,96

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-36420

BU76,88

 1
84310-36430

BU76,88

W(EXHAUST BRAKE)

 1
84312 - PLATE, HORN CONTACT
84312-20011

BU76,8#,96

 1
84329 - SWITCH, TURN SIGNAL
84329-36040

BU76,8#,96

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-36330

BU76,88

 1
84652-36340

BU76,88

W(EXHAUST BRAKE)

 1
Common parts
82711-30070
90463-13003
90463-15003
90464-00232
93315-14012
93319-15012

ILLUST NO. 1 OF 5(8808- )

Click highlighted areas on diagram

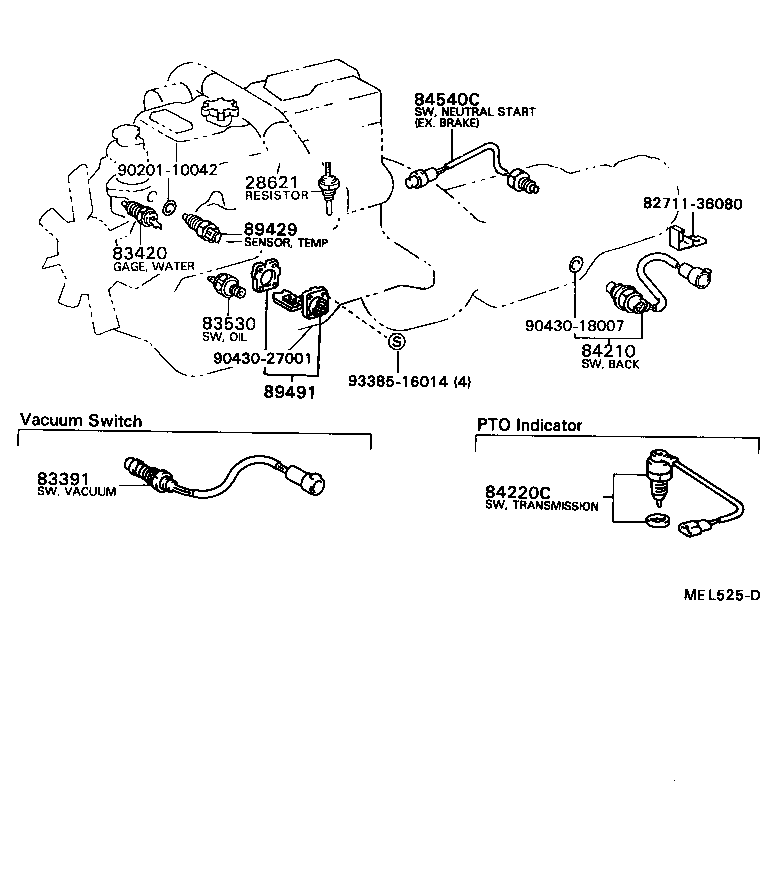

diagram 28621 8271136080 83391 83420 83530 84210 84220C 84540C 89429 89491 9020110042 9043018007 9043027001 9338516014
Part # Description Qty Price
83391 - SWITCH, VACUUM
83391-32020

BU7#,88,92

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

BU76,8#,96

 1
83420-20020

BU76,8#,96

NIPPONDENSO

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14030

BU7#,8#,9#

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-60021

BU76,8#,96

 1
84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-22030

BU7#,88,92

 1
84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
84540-36050

BU7#,8#,9#

 1
89429 - SENSOR, OIL TEMPERATURE
89422-20010

BU7#,88,9#

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-36050

BU76,84

 1
Common parts
82711-36080
90201-10042
90430-18007
90430-27001
93385-16014

ILLUST NO. 2 OF 5(8808- )

Click highlighted areas on diagram

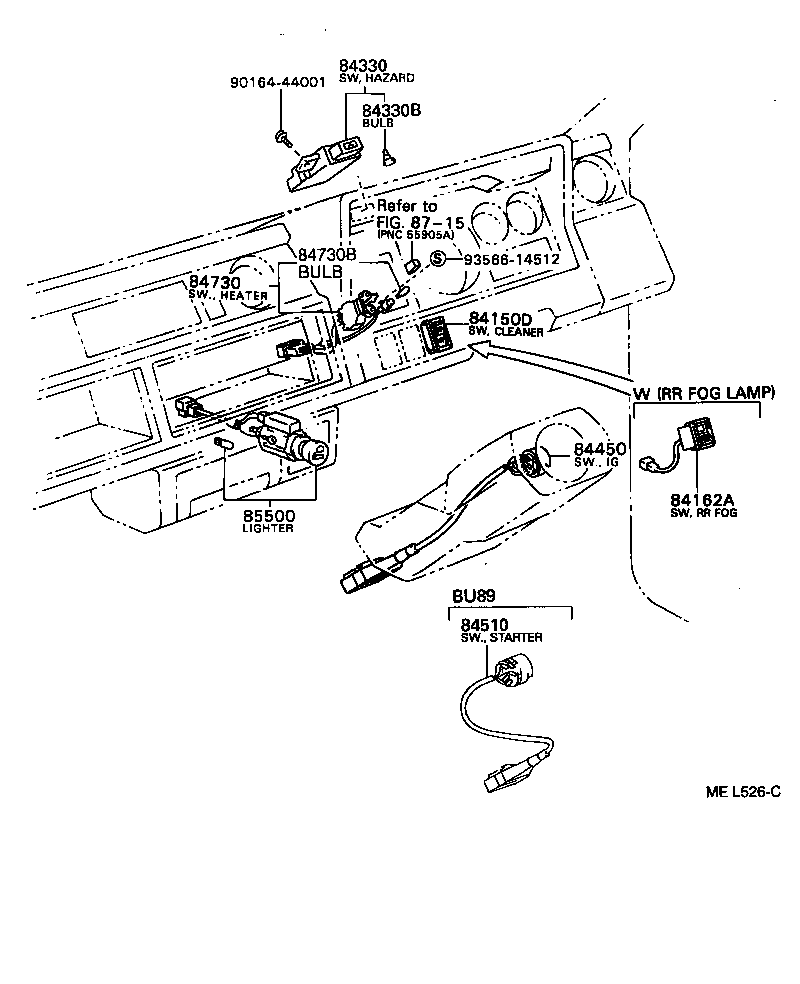

diagram 84150D 84162A 84330 84330B 84450 84510 84730 84730B 85500 8715 9016444001 9356614512
Part # Description Qty Price
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-95400

BU7#,88,92

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-95400

BU7#,88,9#

 1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
90981-16022

BU7#,88,9#

24V 1.4W

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-36040

BU76,8#,96

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-95405

BU7#,88,9#

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-16020

BU7#,88,9#

24V 1.8W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-95402

BU7#,88,9#

 1
Common parts
90164-44001
93566-14512
Linked diagrams
8715

ILLUST NO. 4 OF 5(8808- )

Click highlighted areas on diagram

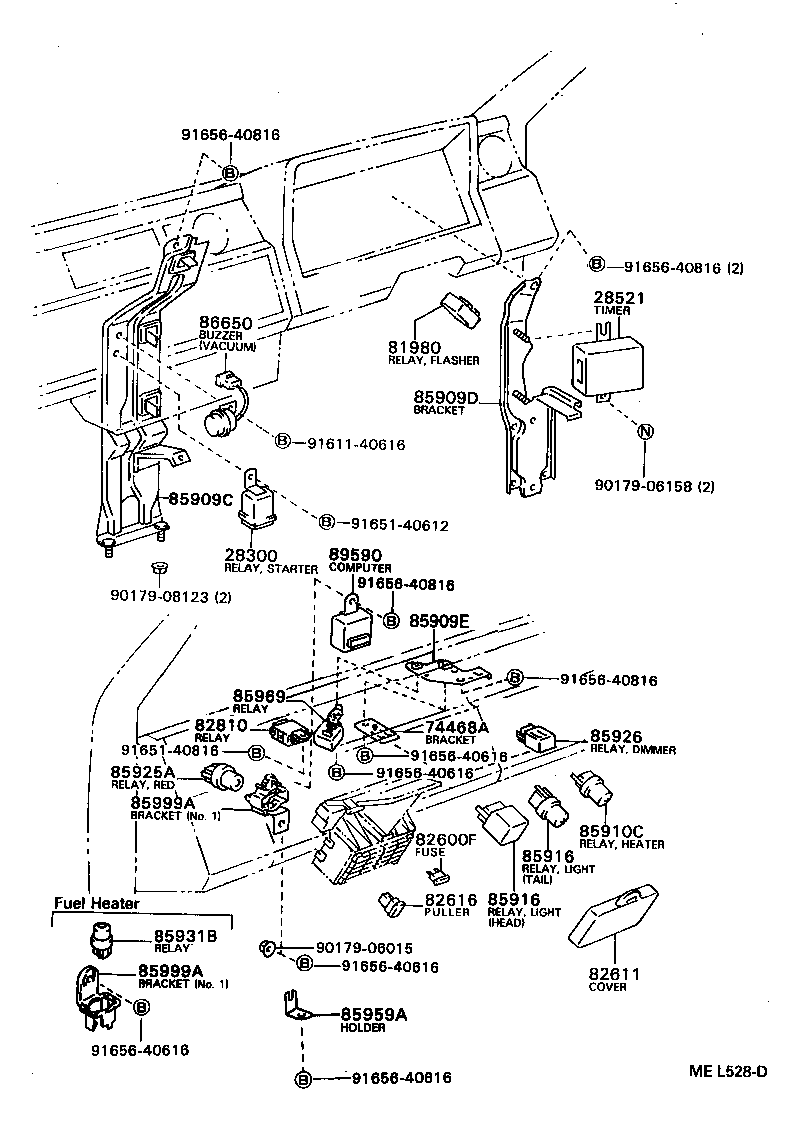

diagram 28300 28521 74468A 81980 82600F 82611 82616 82810 85909C 85909D 85909E 85910C 85916 85916 85925A 85926 85931B 85959A 85969 85999A 85999A 86650 89590 9017906015 9017906158 9017908123 9161140616 9165140612 9165140816 9165640616 9165640616 9165640616 9165640616 9165640616 9165640816 9165640816 9165640816 9165640816
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-56010

11B,14B,3B..BU7#,88,9#

 1
28521 - TIMER, PREHEATING
28521-58050

11B,14B..BU76,88,96

 1
74468A - BRACKET, RELAY BLOCK
74468-95700

BU7#,88,9#

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-37030

BU76,88,96

 1
81980-36060

BU76,88,96

 1
82600F - FUSE, FUSE BLOCK
90982-09005

BU7#,84,88,9#

7.5A

 6
90982-09004

BU7#,8#,9#

20A,YELLOW

 2
90982-09003

BU7#,88,9#

15A

 1
90982-09002

BU7#,88,9#

10A

 7
82611 - COVER, FUSE BLOCK
82611-95410

BU7#,88,9#

 1
82616 - PULLER, FUSE
82616-12010

BU7#,8#,9#

 1
82810 - RELAY ASSY, RUNNING LIGHT
82810-95400

BU76,88

NORWAY SPEC

 1
82810-37010

BU76,88

NORWAY SPEC

 1
85909C - BRACKET SUB-ASSY, RELAY, NO.1
85909-95403

BU7#,88,9#

 1
85909D - BRACKET SUB-ASSY, RELAY, NO.2
85907-95401

BU7#,8#,9#

 1
85909E - BRACKET SUB-ASSY, RELAY, NO.3
85909-95404

BU7#,88,9#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02005

BU7#,88,9#

 1
85916 - RELAY, LIGHT CONTROL
90987-01004

BU7#,88,9#

TAIL LAMP

 1
90987-02007

BU7#,88,9#

HEADLAMP

 1
85916 - RELAY, LIGHT CONTROL
90987-01004

BU7#,88,9#

TAIL LAMP

 1
90987-02007

BU7#,88,9#

HEADLAMP

 1
85925A - RELAY, RED INDICATOR
90987-03002

BU7#,88,9#

 1
85926 - RELAY, HEADLAMP DIMMER
85926-90K00

BU7#,88,9#

 1
85931B - RELAY, FUEL HEATER
90987-02005

BU7#,88,92

 1
85969 - RELAY, LIGHT REMINDER
85969-95400

BU7#,88,92

 1
85999A - BRACKET, RELAY, NO.2
85999-12050

BU76,88

W(FUEL HEATER),NO.1

 1
85999-14150

BU7#,88,89,9#

 1
85999A - BRACKET, RELAY, NO.2
85999-12050

BU76,88

W(FUEL HEATER),NO.1

 1
85999-14150

BU7#,88,89,9#

 1
86650 - BUZZER ASSY, VACUUM INDICATOR
86650-25040

BU7#,88,9#

 1
Common parts
90179-06015
90179-06158
90179-08123
91611-40616
91651-40612
91651-40816
91656-40616
91656-40816

ILLUST NO. 5 OF 5(8808- )

Click highlighted areas on diagram

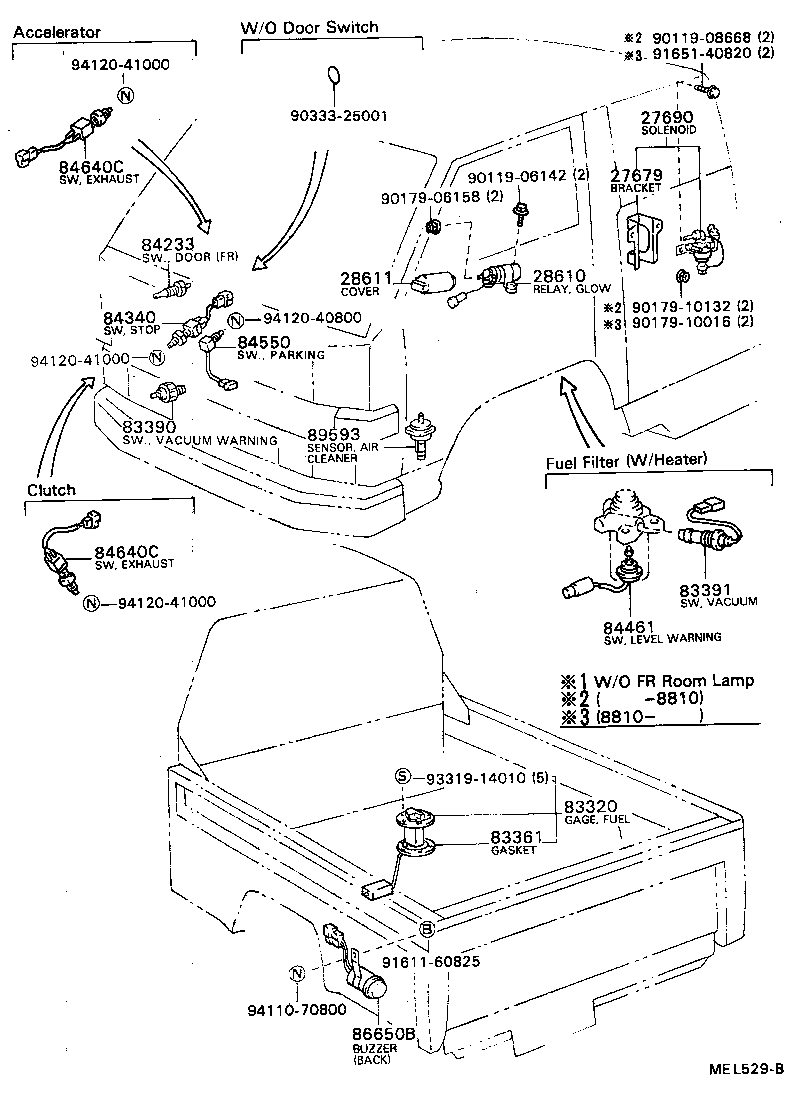

diagram 27679 27690 28610 28611 83320 83361 83390 83391 84233 84340 84461 84550 84640C 84640C 86650B 89593 9011906142 9011908668 9017906158 9017910016 9017910132 9033325001 9161160825 9165140820 9331914010 9411070800 9412040800 9412041000 9412041000 9412041000
Part # Description Qty Price
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-56100

11B,14B..BU76,88,96

 1
27690-56101

11B,14B..BU76,88,96

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-58060

11B,14B..BU76,88,96

 1
28611 - COVER, GLOW PLUG RELAY
28611-55010

11B,14B..BU76,88,96

 1
83320 - GAGE ASSY, FUEL SENDER
83320-39555

BU7#,8#,9#

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

BU7#,8#,9#

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-60010

BU76,8#,96

 1
83391 - SWITCH, VACUUM
83391-32020

BU7#,88,92

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-28020

BU7#,8#,9#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

BU76,8#,96

 1
84340-36050

BU76,8#,96

 1
84461 - SWITCH, LEVEL WARNING
84461-36030

BU76,8#,96

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-25011

BU76,8#,96

 1
84550-25010

BU76,8#,96

 1
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-36040

BU7#,8#,9#

 2
84640C - SWITCH ASSY, EXHAUST RETARDER
84640-36040

BU7#,8#,9#

 2
86650B - BUZZER ASSY, REVERSE WARNING
86650-95417

BU7#,88,9#

 1
89593 - SENSOR, AIR CLEANER WARNING
89593-26010

BU7#,8#,9#

 1
Common parts
90119-06142
90119-08668
90179-06158
90179-10016
90179-10132
90333-25001
91611-60825
91651-40820
93319-14010
94110-70800
94120-40800
94120-41000
