BU76L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

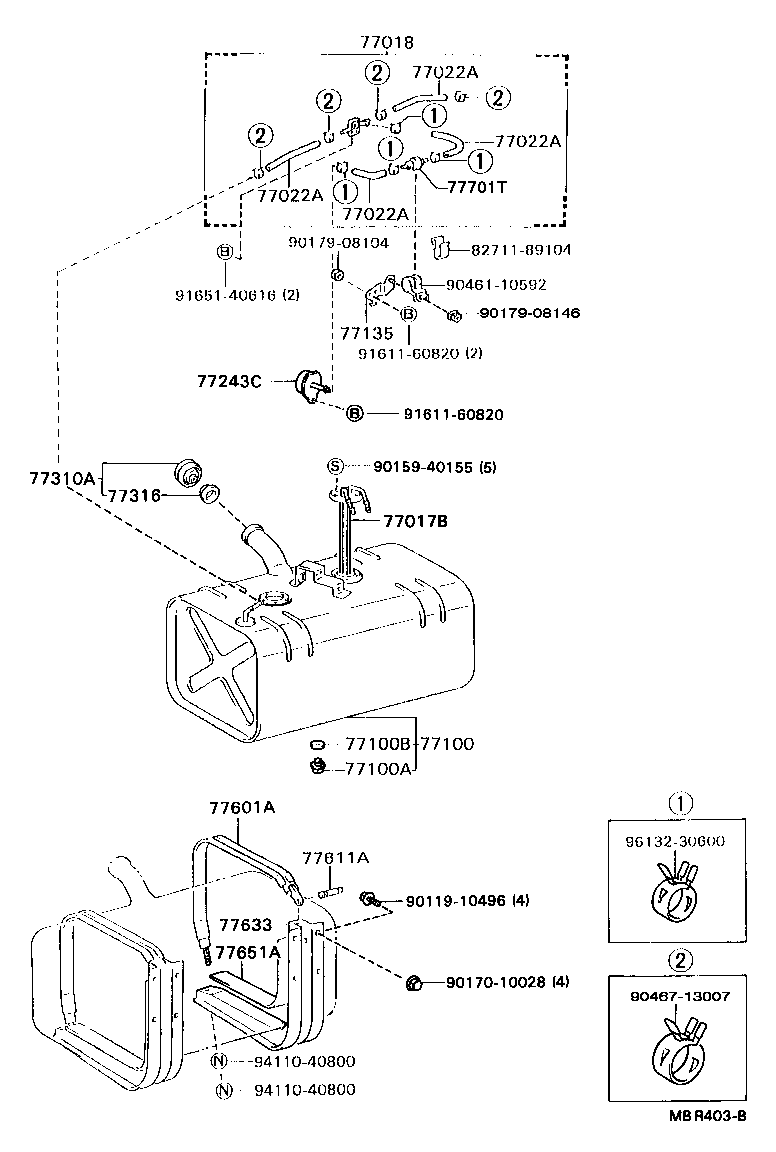

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 77017B 77018 77022A 77022A 77022A 77022A 77100 77100A 77100B 77135 77243C 77310A 77316 77601A 77611A 77633 77651A 77701T 8271189104 9011910496 9015940155 9017010028 9017908104 9017908146 9046110592 9046713007 9161160820 9161160820 9165140616 9411040800 9411040800 9613230600
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-36330

BU7#,8#,9#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36161

BU7#,88,9#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU7#,8#,9#

*H,L=300

 2
95333-06100

BU7#,88,9#

*H,L=1000

 1
95333-06030

BU7#,88,9#

*H,L=300

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU7#,8#,9#

*H,L=300

 2
95333-06100

BU7#,88,9#

*H,L=1000

 1
95333-06030

BU7#,88,9#

*H,L=300

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU7#,8#,9#

*H,L=300

 2
95333-06100

BU7#,88,9#

*H,L=1000

 1
95333-06030

BU7#,88,9#

*H,L=300

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

BU7#,8#,9#

*H,L=300

 2
95333-06100

BU7#,88,9#

*H,L=1000

 1
95333-06030

BU7#,88,9#

*H,L=300

 1
77100 - TANK ASSY, FUEL
77001-3B110

BU7#,88,92

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU7#,8#,9#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BU7#,8#,9#

 1
77135 - BRACKET, CHECK VALVE
77135-36030

BU7#,88,9#

 1
77243C - FILTER, FUEL TANK BREATHER
77243-36010

BU7#,88,9#

 1
77310A - CAP ASSY, FUEL TANK
77310-55080

BU7#,8#,9#

 1
77316 - GASKET, FUEL TANK CAP
77316-27010

BU7#,8#,9#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36140

BU7#,8#,9#

 2
77601-36150

BU7#,88,92

W(FUEL TANK LONG STAY)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BU7#,8#,9#

 2
77633 - STAY, FUEL TANK
77633-36090

BU7#,8#,9#

 2
77501-36080

BU7#,88,92

W(FUEL TANK LONG STAY)

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-36100

BU7#,8#,9#

 2
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10067

BU7#,88,9#

 1
Common parts
82711-89104
90119-10496
90159-40155
90170-10028
90179-08104
90179-08146
90461-10592
90467-13007
91611-60820
91651-40616
94110-40800
96132-30600

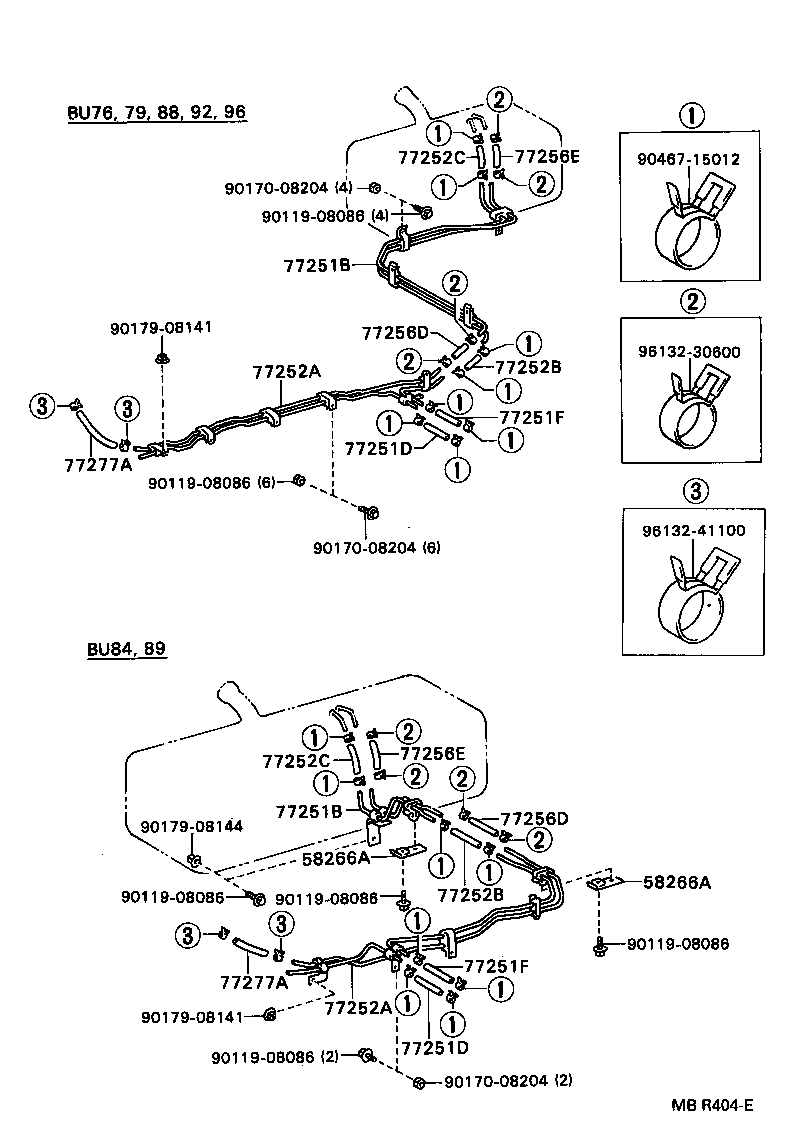

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 58266A 58266A 77251B 77251B 77251D 77251D 77251F 77251F 77252A 77252A 77252B 77252B 77252C 77252C 77256D 77256D 77256E 77256E 77277A 77277A 9011908086 9011908086 9011908086 9011908086 9011908086 9011908086 9017008204 9017008204 9017008204 9017908141 9017908141 9017908144 9046715012 9613230600 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36540

BU7#

 1
77251B - TUBE, FUEL MAIN
77205-36540

BU7#

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10020

BU7#,88,9#

*H,L=200

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-10020

BU7#,88,9#

*H,L=200

 1
77251F - HOSE, FUEL
95332-10020

BU76,8#,96

*H,L=200

 1
77251F - HOSE, FUEL
95332-10020

BU76,8#,96

*H,L=200

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36350

BU7#

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36350

BU7#

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10017

BU7#,88,92

*H,L=170

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10017

BU7#,88,92

*H,L=170

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10040

BU76,84,89

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10040

BU76,84,89

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06020

BU7#,8#,92

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06020

BU7#,8#,92

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06040

BU7#,84,89

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06040

BU7#,84,89

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU7#,8#,9#

L=220

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU7#,8#,9#

L=220

 1
Common parts
90119-08086
90170-08204
90179-08141
90179-08144
90467-15012
96132-30600
96132-41100
