BU76L-MDDTW3 (1988)
Toyota Dyna200
Production
Aug 1988
-
Oct 1992
Engine
11B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

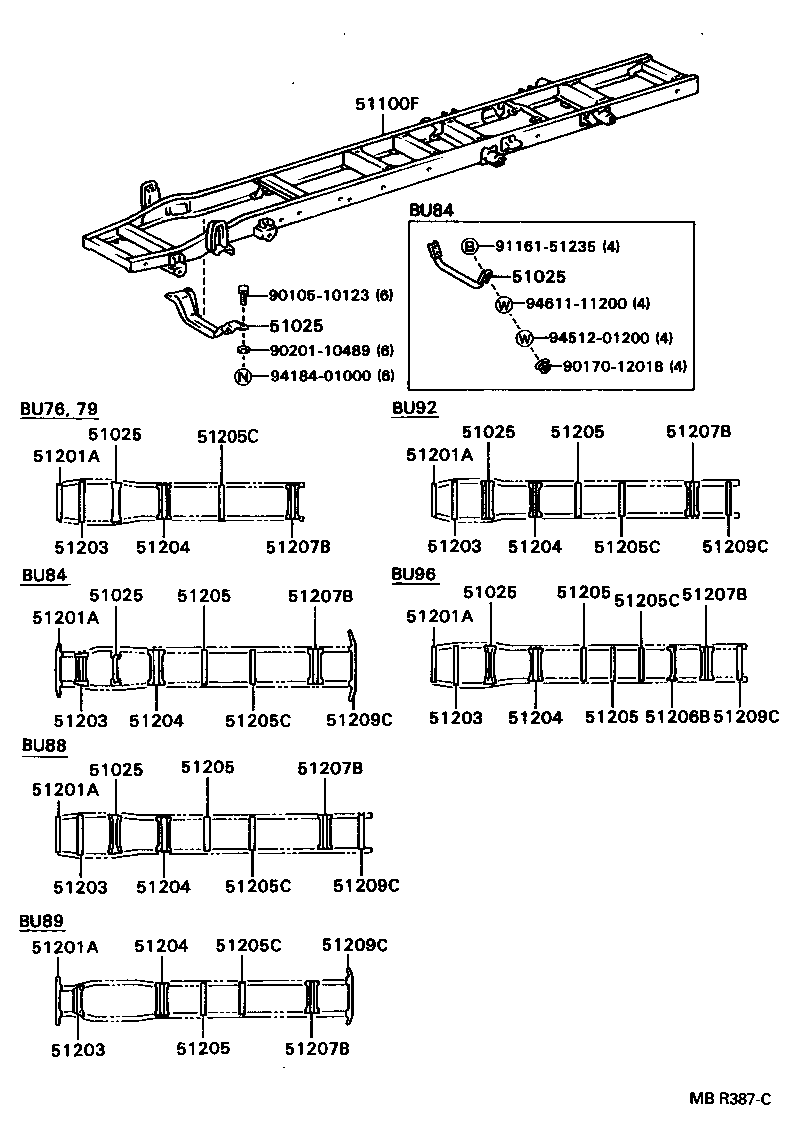

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-36030 |
BU7#,88,9# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-3B460 |
BU76 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36120 |
BU7#,88,9# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36250 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-36130 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36060 |
BU76,84 |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90170-12018 | ||||
| 90201-10489 | ||||
| 91161-51235 | ||||
| 94184-01000 | ||||
| 94512-01200 | ||||
| 94611-11200 | ||||
ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-36120 |
BU7#,88,9# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-36120 |
BU7#,88,9# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-36120 |
BU7#,88,9# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-36120 |
BU7#,88,9# |
1 | ||
| 51721 - BRACKET, CAB FRONT MOUNTING, RH | ||||
| 51711-36040 |
BU7#,88,9# |
1 | ||
| 51721 - BRACKET, CAB FRONT MOUNTING, RH | ||||
| 51711-36040 |
BU7#,88,9# |
1 | ||
| 51722 - BRACKET, CAB FRONT MOUNTING, LH | ||||
| 51712-36040 |
BU7#,88,9# |
1 | ||
| 51722 - BRACKET, CAB FRONT MOUNTING, LH | ||||
| 51712-36040 |
BU7#,88,9# |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51731-36090 |
BU7#,88,9# |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51731-36090 |
BU7#,88,9# |
1 | ||
| 51732 - BRACKET, CAB REAR MOUNTING, LH | ||||
| 51732-36090 |
BU7#,88,9# |
1 | ||
| 51732 - BRACKET, CAB REAR MOUNTING, LH | ||||
| 51732-36090 |
BU7#,88,9# |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90105-10166 | ||||
| 90105-12002 | ||||
| 90109-12024 | ||||
| 90170-10082 | ||||
| 90170-12080 | ||||
| 90201-10489 | ||||
| 90201-12002 | ||||
| 91112-71030 | ||||
| 91161-71235 | ||||
| 91162-71230 | ||||
| 91165-71235 | ||||
| 94115-51200 | ||||
| 94184-01000 | ||||
| 94512-01200 | ||||
| 94611-11001 | ||||
| 94621-11200 | ||||
