BU76L-MDDTW3 (1988)

Toyota Dyna200

Production Aug 1988 - Oct 1992
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

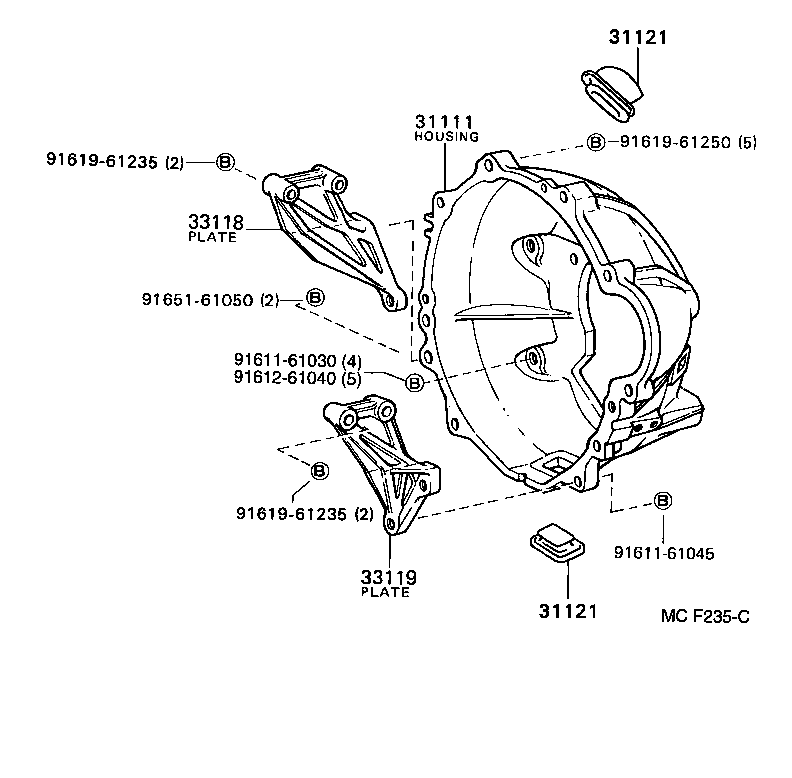

ILLUST NO. 1 OF 2(8808-9210) ; (9210- )BU79,9#

Click highlighted areas on diagram

diagram 31111 31121 31121 33118 33119 9161161030 9161161045 9161261040 9161961235 9161961235 9161961250 9165161050
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-36221

BU76,8#,96

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040

BU76,8#,96

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-36040

BU76,8#,96

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36021

BU7#,8#,9#

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36040

BU76,8#,96

 1
Common parts
91611-61030
91611-61045
91612-61040
91619-61235
91619-61250
91651-61050

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 33101 33104 33104A 33111A 33111C 33111J 33111J 33111U 33111X 33124C 33125B 33131 33131A 33141A 33151 33161 33162 33449B 9011908332 9011908900 9011910121 9011910186 9011910390 9161160610 9161160812 9161161016 9161161030 9161161045
Part # Description Qty Price
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-36050

BU76,8#,96

 1
33101-36051

BU76,8#,96

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

BU7#,8#,9#

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

BU7#,8#,9#

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

BU7#,8#,9#

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-11600

BU7#,8#,9#

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BU7#,8#,9#

L=17,OD=12

 2
90250-12216

BU7#,8#,9#

L=14,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BU7#,8#,9#

L=17,OD=12

 2
90250-12216

BU7#,8#,9#

L=14,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

BU7#,8#,9#

L=11,OD=11

 1
90253-13017

BU7#,8#,9#

L=12,OD=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

BU7#,8#,9#

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-36030

BU7#,8#,9#

 1
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-36010

BU76,8#,96

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-36050

BU76,8#,96

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

BU7#,8#,9#

 1
33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)
90311-48011

BU7#,8#,9#

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33017-36010

BU76,8#,96

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-36010

BU7#,8#,9#

 1
33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER
33162-36020

BU7#,8#,9#

 1
33449B - MAGNET, TRANSMISSION
33449-36010

BU7#,8#,9#

 1
Common parts
90119-08332
90119-08900
90119-10121
90119-10186
90119-10390
91611-60610
91611-60812
91611-61016
91611-61030
91611-61045
