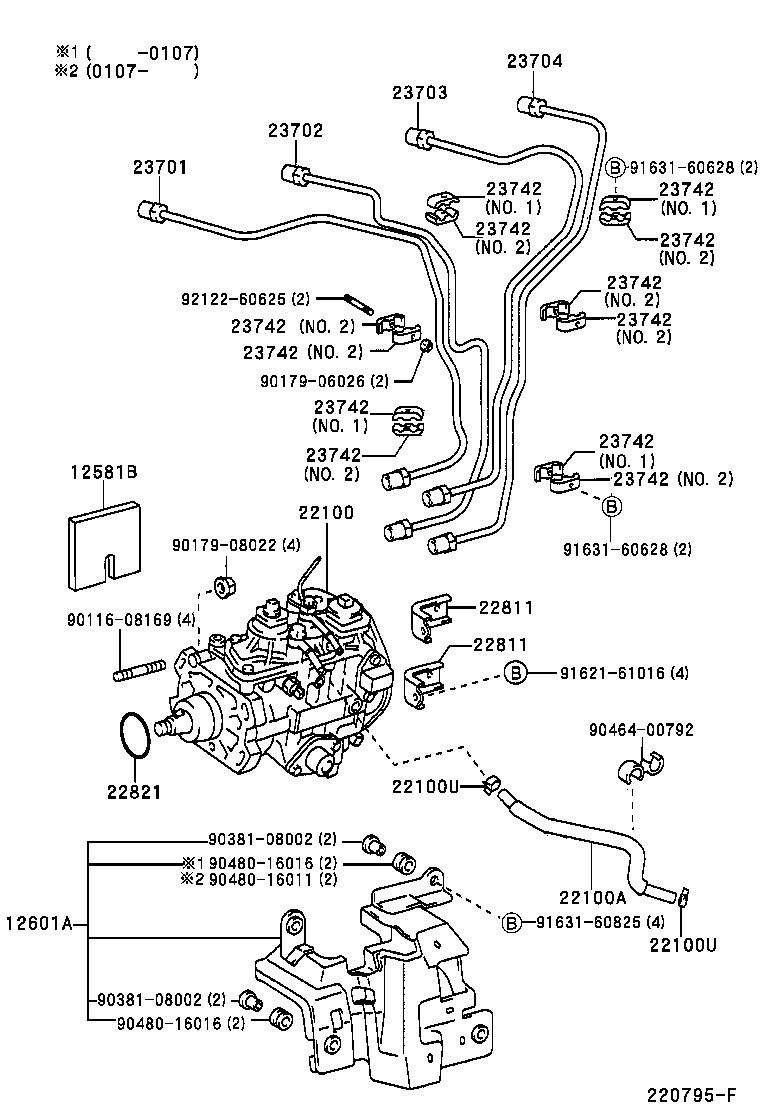

Toyota Dyna200 BU223 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
12581B - INSULATOR, CYLINDER BLOCK, NO.1
12581-58050	15BFTE..BU213,223	08/1999 - 05/2001	1
12581-58051	15BFTE..BU213,223	05/2001 - 12/2999	1
12601A - INSULATOR, CYLINDER BLOCK
12601-58011	15BFTE..BU213,223	07/2001 - 12/2999	1
12601-58010	15BFTE..BU213,223	08/1999 - 07/2001	1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5C590	15BFTE..BU213,223	08/1999 - 06/2001	1
22100-5C591	15BFTE..BU213,223	06/2001 - 12/2999	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-58120	15BFTE..BU213,223	08/1999 - 12/2999	1
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-18008	15BFTE..BU213,223	04/2002 - 12/2999	2
90467-18002	15BFTE..BU213,223	08/1999 - 04/2002	2
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-18008	15BFTE..BU213,223	04/2002 - 12/2999	2
90467-18002	15BFTE..BU213,223	08/1999 - 04/2002	2
22811 - STAY, INJECTION PUMP, NO.1
22811-58060	15BFTE..BU213,223	08/1999 - 12/2999	2
22811 - STAY, INJECTION PUMP, NO.1
22811-58060	15BFTE..BU213,223	08/1999 - 12/2999	2
22821 - GASKET, INJECTION PUMP
90301-49003	15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF,15BFTE..BU101,111,14#,21#,22#	08/2000 - 12/2999	1
90301-49003	15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,21#,22#	05/1995 - 08/2000	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-58050	15BFTE..BU213,223	08/1999 - 12/2999	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-58050	15BFTE..BU213,223	08/1999 - 12/2999	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-58050	15BFTE..BU213,223	08/1999 - 12/2999	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-58050	15BFTE..BU213,223	08/1999 - 12/2999	1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
23742 - CLAMP, INJECTION PIPE, NO.2
23742-58020	15BFTE..BU213,223 NO.1	08/1999 - 05/2001	4
23742-27010	15BFTE..BU213,223 NO.2	08/1999 - 05/2001	8
23742-58030	15BFTE..BU213,223 NO.1	05/2001 - 12/2999	4
23741-58020	15BFTE..BU213,223 NO.2	05/2001 - 12/2999	8
Common parts
90116-08169
90179-06026
90179-08022
90381-08002
90464-00792
90480-16011
90480-16016
91621-61016
91631-60628
91631-60825
92122-60625

BU223L-TKFQW3 (1999)

(9908- )15BFTE
