BU221L-TKMRS3 (1995)
Toyota Dyna200

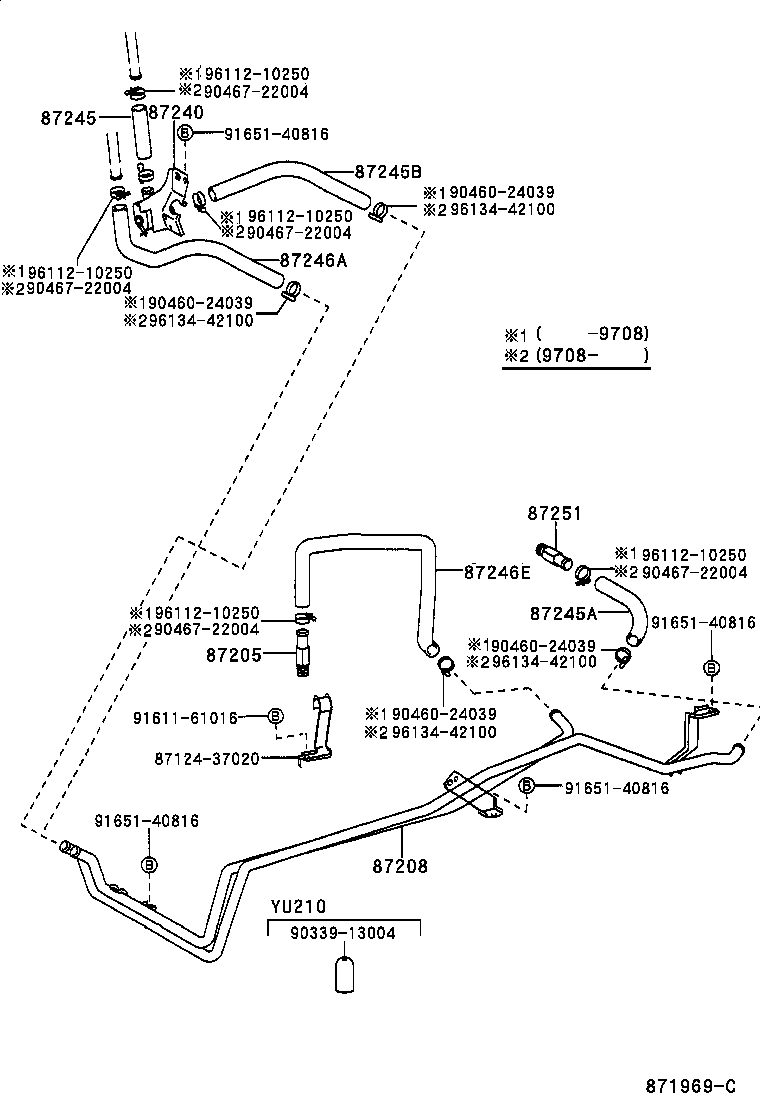

ILLUST NO. 1 OF 2(9505- )BU21#,22#,YU210
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-95400 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,221,222 |
1 | ||
| 87251-95400 |
BU142..20T,25T;BU101,111,141,211,212,221,222 |
1 | ||
| 87251-95400 |
BU142..(20T,25T)..(ARL,GEN);BU101,111,141,211,212,221,222..ARL,GEN,SA |
1 | ||
| 87251-95400 |
BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141,211,212,221,222..DM1,DM6,T1,T2,T3,TW1,TW2 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-37130 |
BU211,212,221,222..LHD..T3 |
1 | ||
| 87208-37160 |
BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2) |
1 | ||
| 87208-37130 |
BU211,212,221..LHD..T3 |
1 | ||
| 87208-37160 |
BU101,111,14#..LHD..GEN |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-37010 |
BU142..(20T,25T)..(ARL,GEN);BU101,111,141,21#,22#,RZU100,YU210..ARL,GEN,SA |
1 | ||
| 87240-37010 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,213,22#,RZU100,YU210 |
1 | ||
| 87240-37010 |
BU142..20T,25T;BU101,111,141,21#,22#,RZU100,YU210 |
1 | ||
| 87240-37010 |
BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI |
1 | ||
| 87245 - HOSE, HEATER WATER, INLET | ||||
| 99556-30100 |
BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI |
1 | ||
| 99556-30100 |
BU142..(20T,25T)..(ARL,GEN);BU101,111,141,21#,22#,RZU100,YU210..ARL,GEN,SA |
1 | ||
| 99556-30100 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,213,22#,RZU100,YU210 |
1 | ||
| 99556-30100 |
BU142..20T,25T;BU101,111,141,21#,22#,RZU100,YU210 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 99556-30500 |
BU212,222;BU211,221..GEN;BU211..30T..SA *H,L=380 |
1 | ||
| 99556-30500 |
BU212..DSL;BU212..LHD;BU211,221,222;BU212..TD..CBU *H,L=380 |
1 | ||
| 99556-30500 |
BU211,212,221,222..ARL,GEN,SA *H,L=380 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30500 |
BU211,212,221,222,YU210 *H,L=450 |
1 | ||
| 99556-30500 |
BU211,212,221,222..LHD..T3 *H,L=350 |
1 | ||
| 99556-30500 |
BU211,212,221,222,YU210..ARL,GEN,SA *H,L=450 |
1 | ||
| 87245-37390 |
BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2) |
1 | ||
| 99556-30500 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU211,221,222,YU210 *H,L=450 |
1 | ||
| 99556-30500 |
BU211,212,221..LHD..T3 *H,L=350 |
1 | ||
| 99556-30500 |
BU211,212,221,222,YU210 *H,L=450 |
1 | ||
| 87245-37390 |
BU101,111,14#..LHD..GEN |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-30500 |
BU212,222;BU211,221..GEN;BU211..30T..SA *H,L=320 |
1 | ||
| 99556-30500 |
BU212..DSL;BU212..LHD;BU211,221,222;BU212..TD..CBU *H,L=320 |
1 | ||
| 99556-30500 |
BU211,212,221,222..ARL,GEN,SA *H,L=320 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
BU142..20T,25T;BU100,101,110,111,140,141,21#,22# |
1 | ||
| 87251-30200 |
BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,213,22# |
1 | ||
| 87251-30200 |
BU142..20T,25T;BU101,111,141,21#,22# |
1 | ||
| 87251-30200 |
BU10#,11#,14#,21#,22# |
1 | ||
| 87251-30200 |
BU142..(20T,25T)..(ARL,GEN);BU101,111,141,21#,22#..ARL,GEN,SA |
1 | ||
| Common parts | ||||
| 87124-37020 | ||||
| 90339-13004 | ||||
| 90460-24039 | ||||
| 90467-22004 | ||||
| 91611-61016 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
