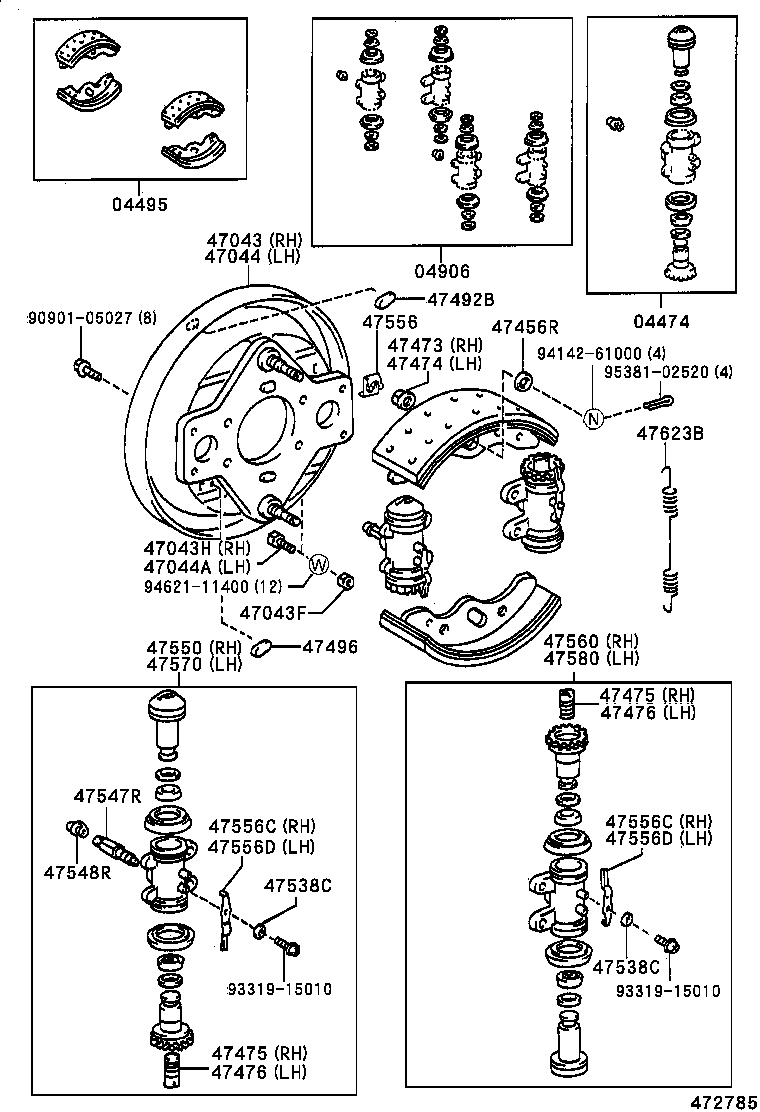

BU221L-TKMRS3 (1995)
Toyota Dyna200
(9505-9905)BU10#,11#,14#,21#,221,RZU100,YU210..WT ; (9905- )BU100..IV3..TS
W(AUTO ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37060 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) LH |
2 | ||
| 04474-37050 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) RH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37010 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) MARK NBK D2146 |
1 | ||
| 04495-37070 |
BU21#,22#..40T MARK NBK D2146 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37050 |
BU21#,22#..40T |
1 | ||
| 04906-37051 |
BU21#,22#..40T..(ARL,GEN,SA) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37020 |
BU21#,22#..40T |
1 | ||
| 47043-37021 |
BU21#,22#..40T |
1 | ||
| 47043-37031 |
BU21#,22#..40T |
1 | ||
| 47043-37030 |
BU21#,22#..40T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
BU21#,22#..40T |
4 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37020 |
BU21#,22#..40T |
1 | ||
| 47044-37030 |
BU21#,22#..40T |
1 | ||
| 47044-37021 |
BU21#,22#..40T |
1 | ||
| 47044-37031 |
BU21#,22#..40T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-37010 |
BU21#,22#..40T |
4 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37040 |
BU21#,22#..40T RH |
2 | ||
| 47491-37030 |
BU21#,22#..40T |
4 | ||
| 47491-37050 |
BU21#,22#..40T LH |
2 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37020 |
BU21#,22#..40T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-37020 |
BU21#,22#..40T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37040 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||

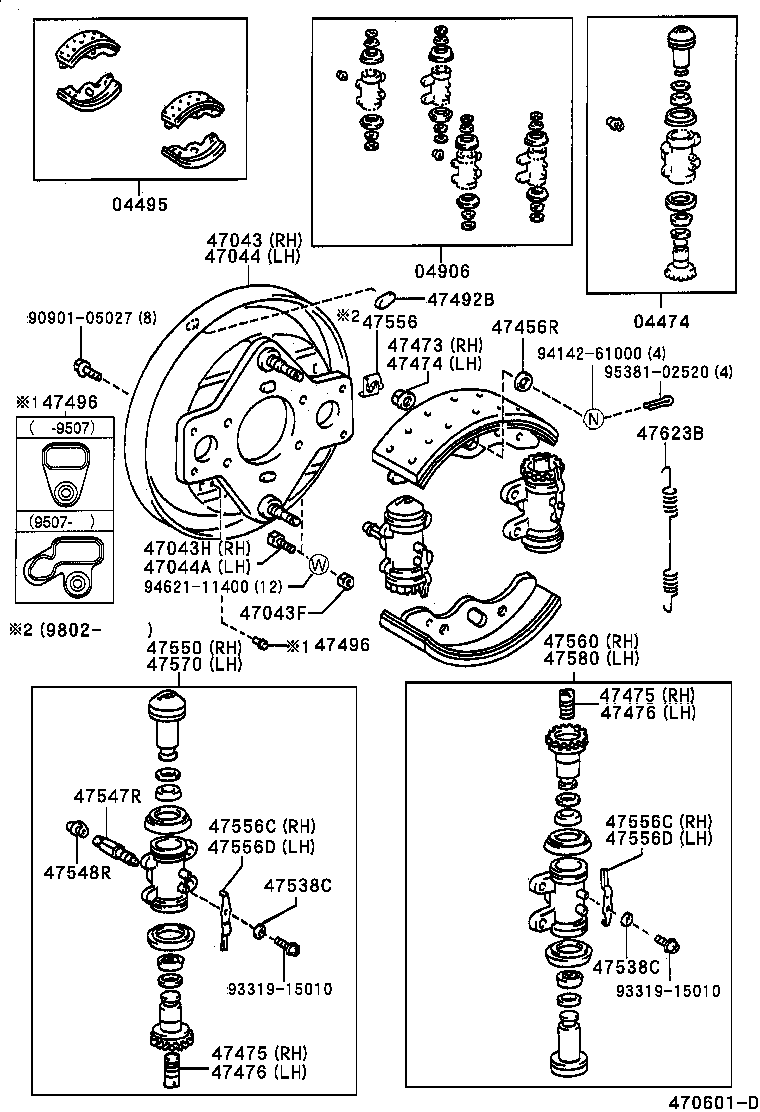

(9505-0107)40T..ARL,GEN,SA,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37060 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) LH |
2 | ||
| 04474-37050 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) RH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37010 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) MARK NBK D2146 |
1 | ||
| 04495-37070 |
BU21#,22#..40T MARK NBK D2146 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37050 |
BU21#,22#..40T |
1 | ||
| 04906-37051 |
BU21#,22#..40T..(ARL,GEN,SA) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37020 |
BU21#,22#..40T |
1 | ||
| 47043-37021 |
BU21#,22#..40T |
1 | ||
| 47043-37031 |
BU21#,22#..40T |
1 | ||
| 47043-37030 |
BU21#,22#..40T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
BU21#,22#..40T |
4 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37020 |
BU21#,22#..40T |
1 | ||
| 47044-37030 |
BU21#,22#..40T |
1 | ||
| 47044-37021 |
BU21#,22#..40T |
1 | ||
| 47044-37031 |
BU21#,22#..40T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-37010 |
BU21#,22#..40T |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-37010 |
BU21#,22#..40T |
4 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37040 |
BU21#,22#..40T RH |
2 | ||
| 47491-37030 |
BU21#,22#..40T |
4 | ||
| 47491-37050 |
BU21#,22#..40T LH |
2 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37040 |
BU21#,22#..40T RH |
2 | ||
| 47491-37030 |
BU21#,22#..40T |
4 | ||
| 47491-37050 |
BU21#,22#..40T LH |
2 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
4 | ||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA) |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
4 | ||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37020 |
BU21#,22#..40T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-37020 |
BU21#,22#..40T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47556-37010 |
BU21#,22#..40T |
4 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37040 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90905-07017 |
BU21#,22#..40T |
4 | ||
| Common parts | ||||
| 90901-05027 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
(9905- )BU101,14#,211,212
W(FR DISC BRAKE:RR AUTO ADJUSTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37060 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) LH |
2 | ||
| 04474-37050 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) RH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37010 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) MARK NBK D2146 |
1 | ||
| 04495-37070 |
BU21#,22#..40T MARK NBK D2146 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37050 |
BU21#,22#..40T |
1 | ||
| 04906-37051 |
BU21#,22#..40T..(ARL,GEN,SA) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37020 |
BU21#,22#..40T |
1 | ||
| 47043-37021 |
BU21#,22#..40T |
1 | ||
| 47043-37031 |
BU21#,22#..40T |
1 | ||
| 47043-37030 |
BU21#,22#..40T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
BU21#,22#..40T |
4 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37020 |
BU21#,22#..40T |
1 | ||
| 47044-37030 |
BU21#,22#..40T |
1 | ||
| 47044-37021 |
BU21#,22#..40T |
1 | ||
| 47044-37031 |
BU21#,22#..40T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-37010 |
BU21#,22#..40T |
4 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37040 |
BU21#,22#..40T RH |
2 | ||
| 47491-37030 |
BU21#,22#..40T |
4 | ||
| 47491-37050 |
BU21#,22#..40T LH |
2 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37020 |
BU21#,22#..40T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-37020 |
BU21#,22#..40T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37040 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| Common parts | ||||
| 90029-04904 | ||||
| 90201-10287 | ||||
(0107- )40T..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-37060 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) LH |
2 | ||
| 04474-37050 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) RH |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-37010 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) MARK NBK D2146 |
1 | ||
| 04495-37070 |
BU21#,22#..40T MARK NBK D2146 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-37050 |
BU21#,22#..40T |
1 | ||
| 04906-37051 |
BU21#,22#..40T..(ARL,GEN,SA) |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-37020 |
BU21#,22#..40T |
1 | ||
| 47043-37021 |
BU21#,22#..40T |
1 | ||
| 47043-37031 |
BU21#,22#..40T |
1 | ||
| 47043-37030 |
BU21#,22#..40T |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01441 |
BU21#,22#..40T |
4 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-37020 |
BU21#,22#..40T |
1 | ||
| 47044-37030 |
BU21#,22#..40T |
1 | ||
| 47044-37021 |
BU21#,22#..40T |
1 | ||
| 47044-37031 |
BU21#,22#..40T |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-14032 |
BU21#,22#..40T |
4 | ||
| 47456R - PLATE, REAR BRAKE SHOE GUIDE | ||||
| 47456-37010 |
BU21#,22#..40T |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47473-37010 |
BU21#,22#..40T |
2 | ||
| 47473-37020 |
BU21#,22#..40T |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-37010 |
BU21#,22#..40T |
4 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-37040 |
BU21#,22#..40T RH |
2 | ||
| 47491-37030 |
BU21#,22#..40T |
4 | ||
| 47491-37050 |
BU21#,22#..40T LH |
2 | ||
| 47491-37090 |
BU21#,22#..40T |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
4 | ||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA) |
4 | ||
| 47538C - PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR | ||||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
4 | ||
| 47538-37030 |
BU21#,22#..40T..(ARL,GEN,SA) |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-37020 |
BU21#,22#..40T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-37020 |
BU21#,22#..40T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47556-37010 |
BU21#,22#..40T |
4 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
2 | ||
| 47555-37070 |
BU21#,22#..40T..(ARL,GEN,SA) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-37040 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-37030 |
BU21#,22#..40T..(ARL,GEN,SA,TAIW) |
1 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90905-07017 |
BU21#,22#..40T |
4 | ||
| Common parts | ||||
| 90901-05027 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
