BU221L-TKMRS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

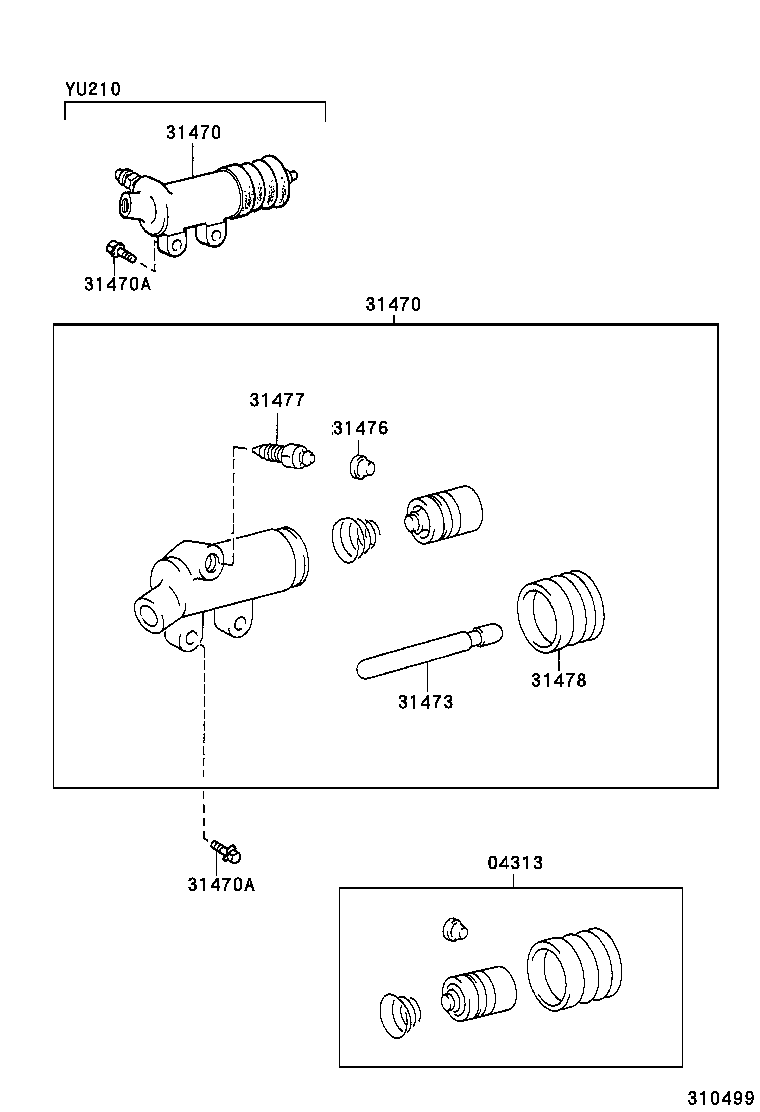

Click highlighted areas on diagram

diagram 04313 31470 31470 31470A 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-36150

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-36213

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-36213

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-G0820

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#,YU210..(DM1,DM6,T1,T2,T3,TW2)..(CBR,DSL)

*8-1.25PX20-20

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-G0820

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#,YU210..(DM1,DM6,T1,T2,T3,TW2)..(CBR,DSL)

*8-1.25PX20-20

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#,212,213,222,223,RZU100,YU210

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
