Toyota Dyna200 BU221 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Manufacturers Home
Toyota
EU
DYNA200
BU221L-TKMRS (1995)
8715 - HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

BU221L-TKMRS (1995)

Toyota Dyna200

Production May 1995 - Dec 2002

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9505- )BU10#,11#,14#,RZU100

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37040	BU21#,22#..LHD	05/1995 - 08/2001	1
55843-37040	BU21#,221,223..LHD	08/2001 - 12/2999	1
55843-37020	BU10#,111,112,14#,RZU100..LHD	05/1995 - 08/2001	1
55843-37020	BU101,111,14#,RZU100..LHD..GEN	08/2001 - 12/2999	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37030	BU21#,22#..LHD	05/1995 - 08/2001	1
55845-37020	BU101,111,14#,RZU100..LHD..GEN	08/2001 - 12/2999	1
55845-37020	BU10#,111,112,14#,RZU100..LHD	05/1995 - 08/2001	1
55845-37030	BU21#,221,223..LHD	08/2001 - 12/2999	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37020	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
55846-37020	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-37020	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
55847-37020	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
55849D - DUCT, HEATER TO REGISTER, NO.7
55849-37020	BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN	05/1995 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-37050	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
87201-37050	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
87211 - DUCT, AIR, NO.1
87211-37050	BU100..ST..IV3;BU212..LHD..40T;BU10#,111,112,14#,211,221..LHD..WT W(POWER TAKE OFF)	05/1995 - 08/1997	1
87211-37050	BU100..ST..IV3;BU212..LHD..40T..TD;BU10#,111,112,140,141,211,221..LHD..WT W(POWER TAKE OFF)	08/1997 - 08/1998	1
87211-37040	BU101,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2002	1
87211-37040	BU10#,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
88539F - HOSE, DRAIN
88539-37020	BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,213,22#,RZU100,YU210	10/2001 - 12/2999	1
88539-37020	BU142..(20T,25T)..(ARL,GEN);BU101,111,141,21#,22#,RZU100,YU210..ARL,GEN,SA	08/2001 - 10/2001	1
88539-37020	BU142..20T,25T;BU101,111,141,21#,22#,RZU100,YU210	08/2000 - 08/2001	1
88539-37020	BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI	05/1995 - 08/2000	1
Common parts
88688-37020
88688-37030
90119-06056
90159-60096
90467-08150
90467-09145B0
91651-60825
93567-15016

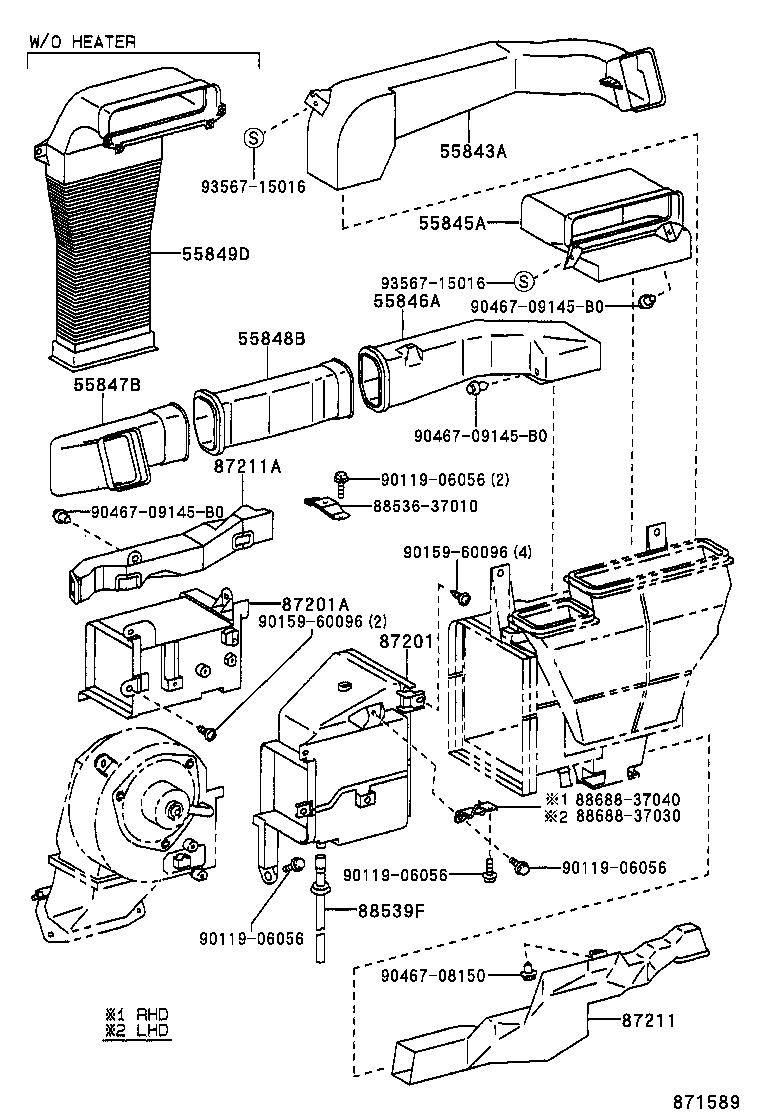

ILLUST NO. 3 OF 3(9505- )BU21#,22#,YU210

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37040	BU21#,22#..LHD	05/1995 - 08/2001	1
55843-37040	BU21#,221,223..LHD	08/2001 - 12/2999	1
55843-37020	BU10#,111,112,14#,RZU100..LHD	05/1995 - 08/2001	1
55843-37020	BU101,111,14#,RZU100..LHD..GEN	08/2001 - 12/2999	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37030	BU21#,22#..LHD	05/1995 - 08/2001	1
55845-37020	BU101,111,14#,RZU100..LHD..GEN	08/2001 - 12/2999	1
55845-37020	BU10#,111,112,14#,RZU100..LHD	05/1995 - 08/2001	1
55845-37030	BU21#,221,223..LHD	08/2001 - 12/2999	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37020	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
55846-37020	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-37020	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
55847-37020	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
55848B - DUCT, HEATER TO REGISTER, NO.6
55848-37020	BU21#,221,223..LHD	08/2001 - 12/2999	1
55848-37020	BU21#,22#..LHD	05/1995 - 08/2001	1
55849D - DUCT, HEATER TO REGISTER, NO.7
55849-37020	BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN	05/1995 - 12/2999	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-37050	BU101,111,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2999	1
87201-37050	BU10#,111,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
87201A - DUCT SUB-ASSY, AIR
87201-37040	BU21#,221,223..LHD	08/2001 - 12/2999	1
87201-37040	BU21#,22#..LHD	05/1995 - 08/2001	1
87211 - DUCT, AIR, NO.1
87211-37050	BU100..ST..IV3;BU212..LHD..40T;BU10#,111,112,14#,211,221..LHD..WT W(POWER TAKE OFF)	05/1995 - 08/1997	1
87211-37050	BU100..ST..IV3;BU212..LHD..40T..TD;BU10#,111,112,140,141,211,221..LHD..WT W(POWER TAKE OFF)	08/1997 - 08/1998	1
87211-37040	BU101,14#,21#,221,223,RZU100..LHD..GEN	08/2001 - 12/2002	1
87211-37040	BU10#,112,14#,21#,22#,RZU100..LHD	05/1995 - 08/2001	1
88539F - HOSE, DRAIN
88539-37020	BU212..DSL;BU212..LHD;BU212..TD..CBU;BU142..20T,25T;BU101,111,141,211,213,22#,RZU100,YU210	10/2001 - 12/2999	1
88539-37020	BU142..(20T,25T)..(ARL,GEN);BU101,111,141,21#,22#,RZU100,YU210..ARL,GEN,SA	08/2001 - 10/2001	1
88539-37020	BU142..20T,25T;BU101,111,141,21#,22#,RZU100,YU210	08/2000 - 08/2001	1
88539-37020	BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI	05/1995 - 08/2000	1
Common parts
88536-37010
88688-37030
88688-37040
90119-06056
90159-60096
90467-08150
90467-09145B0
93567-15016

BU221L-TKMRS (1995)

ILLUST NO. 3 OF 3(9505- )BU10#,11#,14#,RZU100

ILLUST NO. 3 OF 3(9505- )BU21#,22#,YU210
