BU213L-TKFRW3 (1999)

Toyota Dyna200

Production Aug 1999 - Aug 2003
Engine 15BFTE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

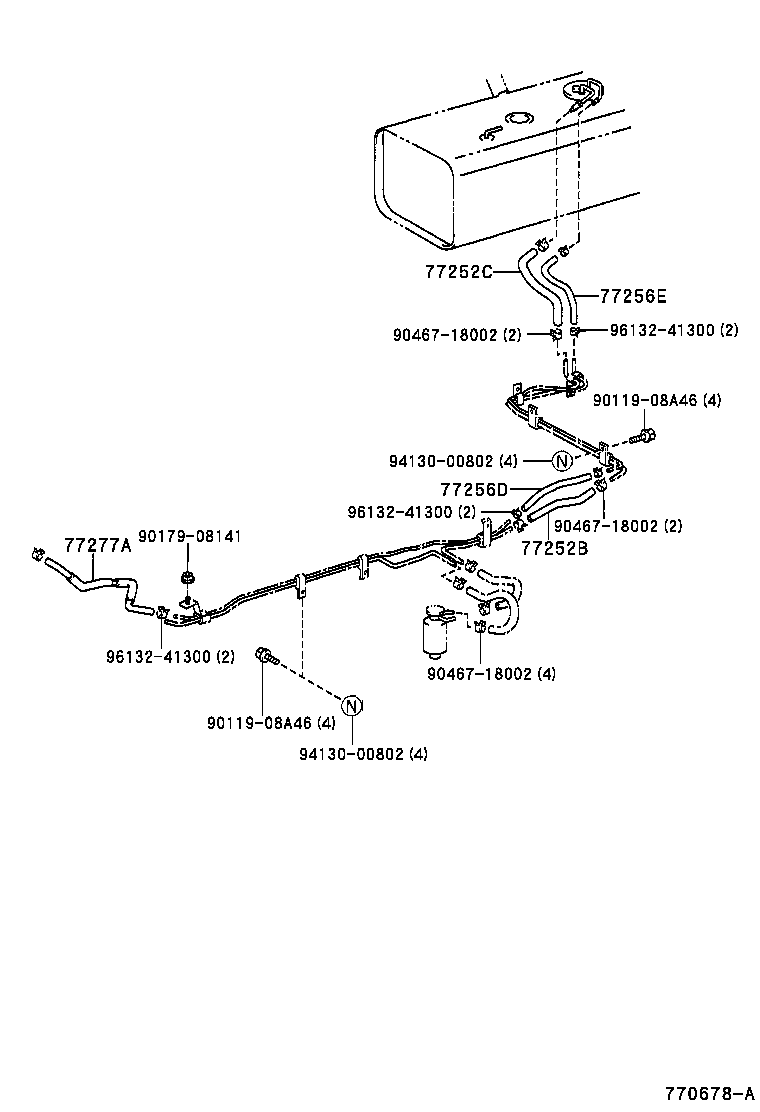

ILLUST NO. 2 OF 2(9908- )BU213,223

Click highlighted areas on diagram

diagram 77252B 77252C 77256D 77256E 77277A 9011908A46 9011908A46 9017908141 9046718002 9046718002 9046718002 9413000802 9413000802 9613241300 9613241300 9613241300
Part # Description Qty Price
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-12018

BU213..40T

*H,L=180,ID=12

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-12030

BU213,223

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-08020

BU213

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-08030

BU213,223

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-58070

BU213,223

 1
Common parts
90119-08A46
90179-08141
90467-18002
94130-00802
96132-41300
