BU213L-TKFQW3 (1999)
Toyota Dyna200
(9908- )15BFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-27010 |
15B#..BU102,142,212,213,222,223 |
4 | ||
| 11176-17020 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-59305 |
15BFTE..BU213,223 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-59305 |
15BFTE..BU213,223 |
4 | ||
| 23617A - SEAT, PRESSURE SPRING, NO.1 | ||||
| 23617-17070 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23618 - SPRING, NOZZLE HOLDER PRESSURE | ||||
| 23618-17060 |
15BFTE..BU213,223 |
4 | ||
| 23618A - SPRING, NOZZLE HOLDER PRESSURE, NO.1 | ||||
| 23618-17080 |
15BFTE..BU213,223 |
4 | ||
| 23619 - PIN, NOZZLE HOLDER PRESSURE | ||||
| 23619-17070 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23620 - NOZZLE ASSY | ||||
| 23602-58100 |
15BFTE..BU213,223 |
4 | ||
| 23624 - NUT, NOZZLE RETAINING | ||||
| 23624-58100 |
15BFTE..BU213,223 |
4 | ||
| 23626 - BODY SUB-ASSY, NOZZLE | ||||
| 23626-58100 |
15BFTE..BU213,223 |
4 | ||
| 23627A - SCREW, FOLLOW(FOR NOZZLE) | ||||
| 23656-78030 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23631-17033 |
15B#..BU102,112,142,212,213,222,223 T=1.125 |
4 | ||
| 23631-17035 |
15B#..BU102,112,142,212,213,222,223 T=1.275 |
4 | ||
| 23631-17034 |
15B#..BU102,112,142,212,213,222,223 T=1.2 |
4 | ||
| 23631-17030 |
15B#..BU102,112,142,212,213,222,223 T=0.9 |
4 | ||
| 23631-17040 |
15B#..BU102,112,142,212,213,222,223 T=0.85 |
4 | ||
| 23631-17031 |
15B#..BU102,112,142,212,213,222,223 T=0.975 |
4 | ||
| 23631-17037 |
15B#..BU102,112,142,212,213,222,223 T=1.425 |
4 | ||
| 23631-17041 |
15B#..BU102,112,142,212,213,222,223 T=0.875 |
4 | ||
| 23631-17029 |
15B#..BU102,112,142,212,213,222,223 T=0.8 |
4 | ||
| 23631-17036 |
15B#..BU102,112,142,212,213,222,223 T=1.35 |
4 | ||
| 23631-17032 |
15B#..BU102,112,142,212,213,222,223 T=1.05 |
4 | ||
| 23631-17047 |
15B#..BU102,112,142,212,213,222,223 T=1.1 |
4 | ||
| 23631-17039 |
15B#..BU102,112,142,212,213,222,223 T=1.575(DA=6.2) |
4 | ||
| 23631-17038 |
15B#..BU102,112,142,212,213,222,223 T=1.5 |
4 | ||
| 23631-17044 |
15B#..BU102,112,142,212,213,222,223 T=1.0 |
4 | ||
| 23631-17049 |
15B#..BU102,112,142,212,213,222,223 T=1.175 |
4 | ||
| 23631-17054 |
15B#..BU102,112,142,212,213,222,223 T=1.375 |
4 | ||
| 23631-17042 |
15B#..BU102,112,142,212,213,222,223 T=0.925 |
4 | ||
| 23631-17045 |
15B#..BU102,112,142,212,213,222,223 T=1.025 |
4 | ||
| 23631-17055 |
15B#..BU102,112,142,212,213,222,223 T=1.4 |
4 | ||
| 23631-17048 |
15B#..BU102,112,142,212,213,222,223 T=1.15 |
4 | ||
| 23631-17043 |
15B#..BU102,112,142,212,213,222,223 T=0.95 |
4 | ||
| 23631-17050 |
15B#..BU102,112,142,212,213,222,223 T=1.225 |
4 | ||
| 23631-17052 |
15B#..BU102,112,142,212,213,222,223 T=1.3 |
4 | ||
| 23631-17053 |
15B#..BU102,112,142,212,213,222,223 T=1.325 |
4 | ||
| 23631-17046 |
15B#..BU102,112,142,212,213,222,223 T=1.075 |
4 | ||
| 23631-17051 |
15B#..BU102,112,142,212,213,222,223 T=1.25 |
4 | ||
| 23631-17059 |
15B#..BU102,112,142,212,213,222,223 T=1.55 |
4 | ||
| 23631-17062 |
15B#..BU102,112,142,212,213,222,223 T=1.8 |
4 | ||
| 23631-17064 |
15B#..BU102,112,142,212,213,222,223 T=1.95 |
4 | ||
| 23631-17066 |
15B#..BU102,112,142,212,213,222,223 T=2.1 |
4 | ||
| 23631-17065 |
15B#..BU102,112,142,212,213,222,223 T=2.0 |
4 | ||
| 23631-17056 |
15B#..BU102,112,142,212,213,222,223 T=1.45 |
4 | ||
| 23631-17068 |
15B#..BU102,112,142,212,213,222,223 T=1.6 |
4 | ||
| 23632-17021 |
15B#..BU102,112,142,212,213,222,223 T=1.7 |
4 | ||
| 23631-17058 |
15B#..BU102,112,142,212,213,222,223 T=1.525 |
4 | ||
| 23631-17069 |
15B#..BU102,112,142,212,213,222,223 T=1.625 |
4 | ||
| 23631-17057 |
15B#..BU102,112,142,212,213,222,223 T=1.475 |
4 | ||
| 23632-17020 |
15B#..BU102,112,142,212,213,222,223 T=1.675 |
4 | ||
| 23632-17027 |
15B#..BU102,112,142,212,213,222,223 T=1.925 |
4 | ||
| 23631-17061 |
15B#..BU102,112,142,212,213,222,223 T=1.725(DA=6.2) |
4 | ||
| 23632-17024 |
15B#..BU102,112,142,212,213,222,223 T=1.825 |
4 | ||
| 23632-17022 |
15B#..BU102,112,142,212,213,222,223 T=1.75 |
4 | ||
| 23631-17079 |
15B#..BU102,112,142,212,213,222,223 T=0.825 |
4 | ||
| 23632-17025 |
15B#..BU102,112,142,212,213,222,223 T=1.85 |
4 | ||
| 23631-17060 |
15B#..BU102,112,142,212,213,222,223 T=1.65 |
4 | ||
| 23632-17029 |
15B#..BU102,112,142,212,213,222,223 T=2.05 |
4 | ||
| 23631-17067 |
15B#..BU102,112,142,212,213,222,223 T=2.175 |
4 | ||
| 23632-17028 |
15B#..BU102,112,142,212,213,222,223 T=1.975 |
4 | ||
| 23632-17032 |
15B#..BU102,112,142,212,213,222,223 T=2.15 |
4 | ||
| 23631-17063 |
15B#..BU102,112,142,212,213,222,223 T=1.875 |
4 | ||
| 23632-17030 |
15B#..BU102,112,142,212,213,222,223 T=2.075 |
4 | ||
| 23632-17026 |
15B#..BU102,112,142,212,213,222,223 T=1.9 |
4 | ||
| 23632-17023 |
15B#..BU102,112,142,212,213,222,223 T=1.775 |
4 | ||
| 23632-17033 |
15B#..BU102,112,142,212,213,222,223 T=2.2 |
4 | ||
| 23631-17010 |
15BFTE..BU213,223 T=1.28 |
4 | ||
| 23632-17037 |
15BFTE..BU213,223 T=2.025 |
4 | ||
| 23632-17031 |
15B#..BU102,112,142,212,213,222,223 T=2.125 |
4 | ||
| 23631A - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1) | ||||
| 23631-17021 |
15B#..BU102,112,142,212,213,222,223 T=1.95 |
4 | ||
| 23631-17024 |
15B#..BU102,112,142,212,213,222,223 T=2.15 |
4 | ||
| 23631-17023 |
15B#..BU102,112,142,212,213,222,223 T=2.1 |
4 | ||
| 23631-17020 |
15B#..BU102,112,142,212,213,222,223 T=1.85 |
4 | ||
| 23631-17026 |
15B#..BU102,112,142,212,213,222,223 T=1.625 |
4 | ||
| 23631-17022 |
15B#..BU102,112,142,212,213,222,223 T=2.0 |
4 | ||
| 23631-17025 |
15B#..BU102,112,142,212,213,222,223 T=1.525 |
4 | ||
| 23631-17028 |
15B#..BU102,112,142,212,213,222,223 T=1.775 |
4 | ||
| 23631-17027 |
15B#..BU102,112,142,212,213,222,223 T=1.675 |
4 | ||
| 23631-58014 |
15B#..BU102,112,142,212,213,222,223 T=1.200 |
4 | ||
| 23631-58015 |
15B#..BU102,112,142,212,213,222,223 T=1.250 |
4 | ||
| 23631-17072 |
15B#..BU102,112,142,212,213,222,223 T=1.575(OD=7.35) |
4 | ||
| 23631-58011 |
15B#..BU102,112,142,212,213,222,223 T=1.050 |
4 | ||
| 23631-58010 |
15B#..BU102,112,142,212,213,222,223 T=1.000 |
4 | ||
| 23631-58017 |
15B#..BU102,112,142,212,213,222,223 T=1.350 |
4 | ||
| 23631-58013 |
15B#..BU102,112,142,212,213,222,223 T=1.150 |
4 | ||
| 23631-17070 |
15B#..BU102,112,142,212,213,222,223 T=1.9 |
4 | ||
| 23631-58018 |
15B#..BU102,112,142,212,213,222,223 T=1.400 |
4 | ||
| 23631-58012 |
15B#..BU102,112,142,212,213,222,223 T=1.100 |
4 | ||
| 23632-58010 |
15B#..BU102,112,142,212,213,222,223 T=1.500 |
4 | ||
| 23632-58015 |
15B#..BU102,112,142,212,213,222,223 T=1.750 |
4 | ||
| 23632-58012 |
15B#..BU102,112,142,212,213,222,223 T=1.600 |
4 | ||
| 23632-58014 |
15B#..BU102,112,142,212,213,222,223 T=1.700 |
4 | ||
| 23631-17073 |
15B#..BU102,112,142,212,213,222,223 T=1.725(OD=7.35) |
4 | ||
| 23632-58013 |
15B#..BU102,112,142,212,213,222,223 T=1.650 |
4 | ||
| 23631-58016 |
15B#..BU102,112,142,212,213,222,223 T=1.300 |
4 | ||
| 23631-58019 |
15B#..BU102,112,142,212,213,222,223 T=1.450 |
4 | ||
| 23633-58011 |
15B#..BU102,112,142,212,213,222,223 T=1.475 |
4 | ||
| 23632-58017 |
15B#..BU102,112,142,212,213,222,223 T=1.275 |
4 | ||
| 23632-58019 |
15B#..BU102,112,142,212,213,222,223 T=1.375 |
4 | ||
| 23631-17071 |
15B#..BU102,112,142,212,213,222,223 T=2.05 |
4 | ||
| 23633-58012 |
15B#..BU102,112,142,212,213,222,223 T=0.950 |
4 | ||
| 23632-58011 |
15B#..BU102,112,142,212,213,222,223 T=1.550 |
4 | ||
| 23632-58016 |
15B#..BU102,112,142,212,213,222,223 T=1.800 |
4 | ||
| 23633-58010 |
15B#..BU102,112,142,212,213,222,223 T=1.425 |
4 | ||
| 23633-58017 |
15B#..BU102,112,142,212,213,222,223 T=0.900 |
4 | ||
| 23632-58018 |
15B#..BU102,112,142,212,213,222,223 T=1.325 |
4 | ||
| 23634-58011 |
15B#..BU102,112,142,212,213,222,223 T=1.125 |
4 | ||
| 23633-58013 |
15B#..BU102,112,142,212,213,222,223 T=0.700 |
4 | ||
| 23633-58018 |
15B#..BU102,112,142,212,213,222,223 T=0.975 |
4 | ||
| 23633-58015 |
15B#..BU102,112,142,212,213,222,223 T=0.800 |
4 | ||
| 23633-58019 |
15B#..BU102,112,142,212,213,222,223 T=1.025 |
4 | ||
| 23633-58014 |
15B#..BU102,112,142,212,213,222,223 T=0.750 |
4 | ||
| 23633-58016 |
15B#..BU102,112,142,212,213,222,223 T=0.850 |
4 | ||
| 23634-58012 |
15B#..BU102,112,142,212,213,222,223 T=1.175 |
4 | ||
| 23634-58010 |
15B#..BU102,112,142,212,213,222,223 T=1.075 |
4 | ||
| 23681 - SEAL, NOZZLE HOLDER | ||||
| 23681-17010 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-58010 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 23760A - GASKET | ||||
| 90430-13002 |
15B#..BU102,112,142,212,213,222,223 |
1 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-58030 |
15BFTE..BU213,223 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 23271-58090 |
15BFTE..BU213,223 |
2 | ||
| 23770B - HOSE, FUEL | ||||
| 23271-58090 |
15BFTE..BU213,223 |
2 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96132-41000 |
15BFTE..BU213,223 |
4 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96132-41000 |
15BFTE..BU213,223 |
4 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96132-41000 |
15BFTE..BU213,223 |
4 | ||
| 23770C - CLAMP OR CLIP(FOR FUEL HOSE SET) | ||||
| 96132-41000 |
15BFTE..BU213,223 |
4 | ||
| Common parts | ||||
| 90099-08099 | ||||
| 90105-08338 | ||||
| 90119-08587 | ||||
| 90179-10216 | ||||
| 90209-10021 | ||||
| 96721-24015 | ||||

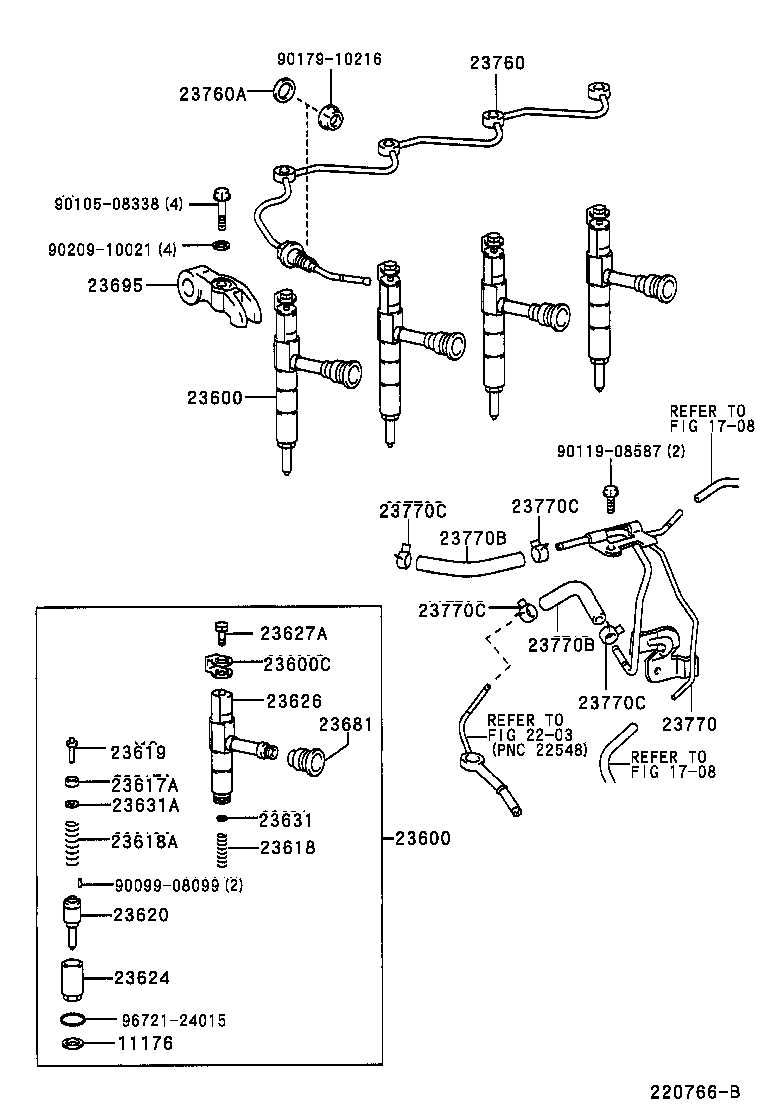

| Linked diagrams | ||||
| 1708 | ||||
| 2203 | ||||
