BU212R-TKMRSQ3 (1995)
Toyota Dyna200

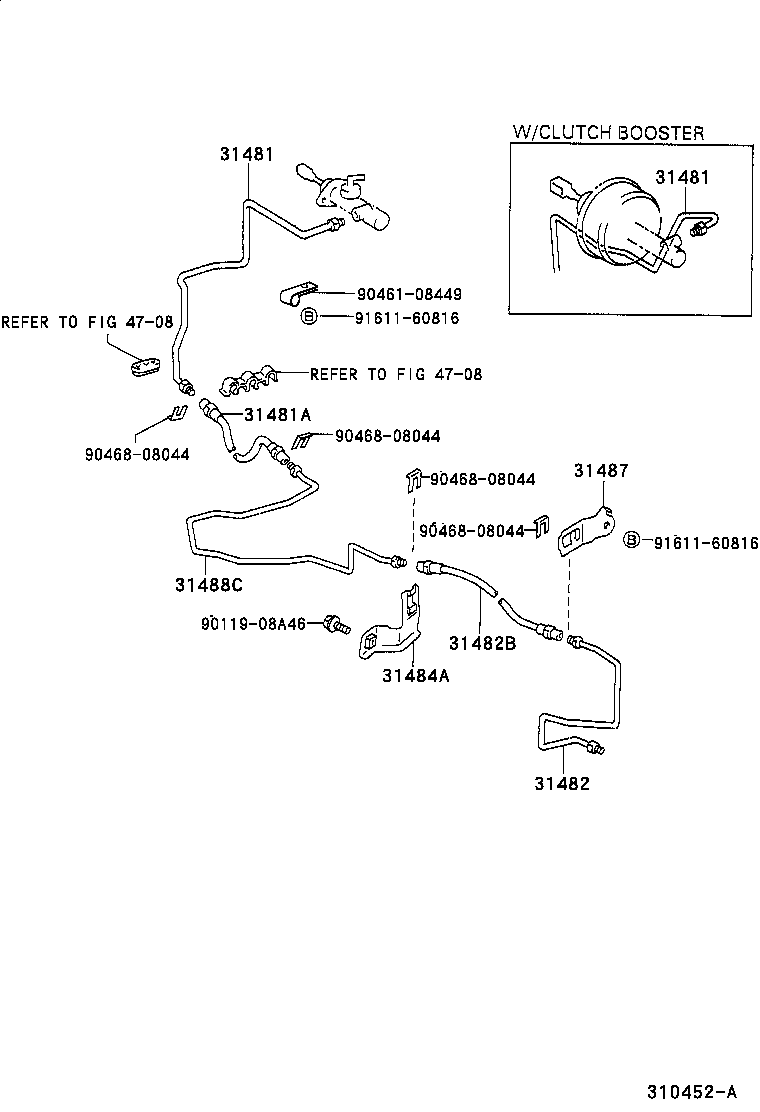

ILLUST NO. 2 OF 2(9505- )BU211,212,221,222,YU210..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37030 |
BU211,212,221,222..RHD..(ARL,GEN) W(CLUTCH BOOSTER) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37030 |
BU211,212,221,222..RHD..(ARL,GEN) W(CLUTCH BOOSTER) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-34305 |
BU21#,22#,YU210 |
1 | ||
| 96932-34307 |
BU21#,22#,YU210 |
1 | ||
| 96932-34307 |
BU21#,22#,YU210 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37030 |
BU102..TD;BU102,112,142,212,213,222,223..(25T,30T,40T)..(ARL,EUR,GEN,SA) |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 96818-50310 |
BU212,222;BU211,221..GEN;BU211..30T..SA |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-36090 |
BU211,212,221,222 |
1 | ||
| 31484-36090 |
BU211,212,221,222 |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36151 |
BU212,222;BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#..DSL |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37020 |
BU212,222..RHD;BU211..30T..SA;BU211,221..RHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08449 | ||||
| 90468-08044 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 4708 | ||||
ILLUST NO. 1 OF 2(9505- )BU10#,11#,14#,21#,22#,YU210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37050 |
BU212..LHD..TD;BU212..30T..DSL;BU212..RHD..40T..(ARL,GEN);BU211,221,222..ARL,GEN,TAIW W(CLUTCH BOOSTER) |
1 | ||
| 31301-37060 |
BU212,222..ARL;BU212..LHD..40T..TD W(SEPARATE TYPE VACUUM P.T.O) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU101,111,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU100,101,111,140,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90541-06036 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31321-14020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 91121-51070 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90387-10004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 90240-08006 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90386-08002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
