BU212R-TKMRSQ3 (1995)
Toyota Dyna200
(9505- )15BF,15BFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-58080 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,212,222 |
1 | ||
| 11101-58081 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,212,222 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
18 | ||
| 90910-02084 |
14B,15B#..BU10#,111,14#,21#,22# |
18 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-09007 |
15B#..BU102,112,142,212,213,222,223 L=53.5,OD=9 |
8 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58140 |
15B#..BU102,112,142,212,222 T=1.30 |
1 | ||
| 11115-58130 |
15B#..BU102,112,142,212,222 T=1.20 |
1 | ||
| 11115-58150 |
15B#..BU102,112,142,212,222 T=1.40 |
1 | ||
| 11115-58141 |
15B#..BU102,112,142,212,213,222,223 T=1.30 |
1 | ||
| 11115-58131 |
15B#..BU102,112,142,212,213,222,223 T=1.20 |
1 | ||
| 11115-58151 |
15B#..BU102,112,142,212,213,222,223 T=1.40 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-14006 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
15B#..BU102,112,142,212,213,222,223 |
8 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
15B#..BU102,112,142,212,213,222,223 |
8 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
15B#..BU102,112,142,212,213,222,223 |
8 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
15BF,15BFT..BU102,112,142,212,222 |
4 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-64000 |
15BF,15BFT..BU102,112,142,212,222 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54005 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;15BFT..BU142..EUR;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,22# |
1 | ||
| 90345-54005 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;15BFT..BU142..EUR;14B,15BF,15BFTE..BU101,111,14#,212,213,22# |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-58010 |
15B#..BU102,112,142,212,222 STD |
8 | ||
| 11122-58020 |
15B#..BU102,112,142,212,213,222,223 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-58010 |
15B#..BU102,112,142,212,222 STD |
8 | ||
| 11122-58020 |
15B#..BU102,112,142,212,213,222,223 STD |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-58040 |
15BF,15BFT..BU102,112,142,212,222 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08025 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 90179-08040 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 90179-08040 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) | ||||
| 92112-60835 |
15B#..BU102,112,142,212,213,222,223 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91511-60835 |
15B#..BU102,112,142,212,213,222,223 |
4 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B,15B#..BU10#,111,14#,21#,22# |
6 | ||
| 11228-56010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
14B,15B#..BU10#,111,14#,21#,22# |
6 | ||
| 11228-56010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58020 |
15B#..BU102,112,142,212,222 |
1 | ||
| 11213-58021 |
15B#..BU102,112,142,212,213,222,223 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 12180-55010 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90430-37140 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||

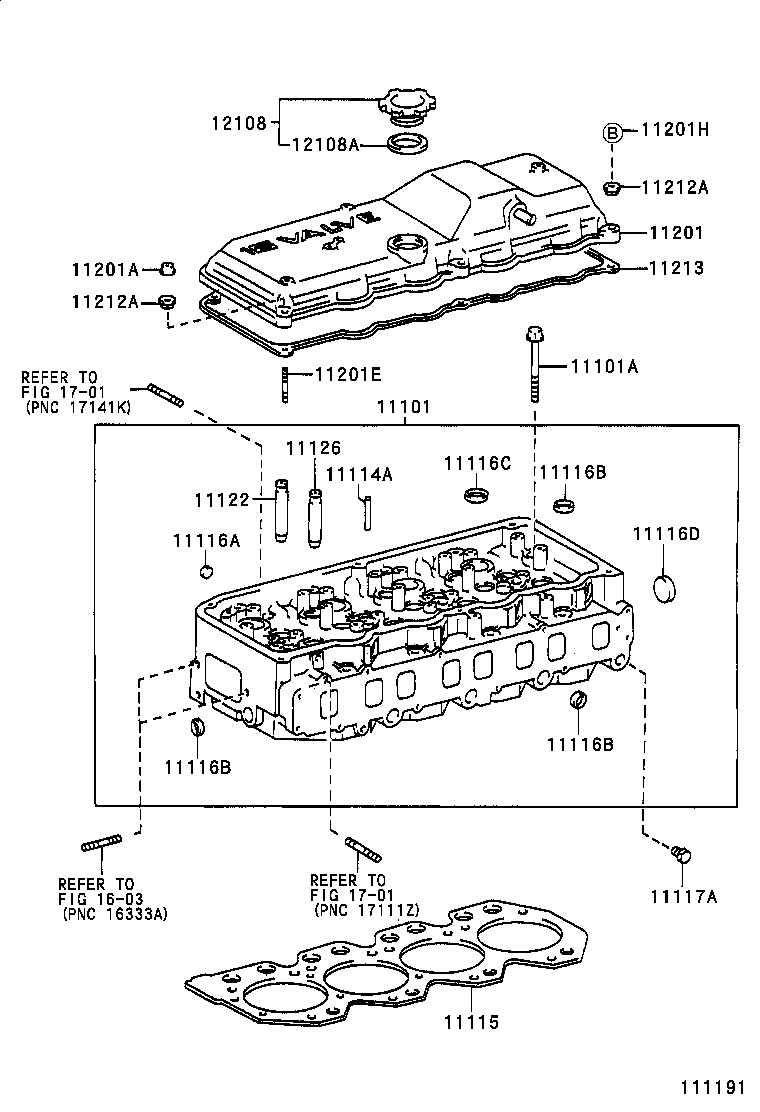

| Linked diagrams | ||||
