BU212R-PKMQSQ3 (1995)
Toyota Dyna200
(9505- )15BF..BU212,222..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-58102 |
14B,15BF,15BFTE..BU21#,22# |
1 | ||
| 17401-58102 |
14B..BU221..GEN;14B,15BF,15BFTE..BU21#,222,223 |
1 | ||
| 17401-58102 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15BF,15BFTE..BU212,213,22# |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B..BU221..GEN;14B,15B#,3RZFE,4Y..BU101,111,14#,21#,222,223,RZU100,YU210 |
3 | ||
| 90179-10070 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#,3RZFE,4Y..BU10#,111,14#,212,213,22#,RZU100,YU210 |
3 | ||
| 90179-10070 |
14B,15B#,3B,3RZFE,4Y..BU10#,11#,14#,21#,22#,RZU100,YU210 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06067 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06067 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06067 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-58720 |
15BF..BU212..30T..ARL |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 17576-56040 |
14B,15B#,4Y..BU211,212,22#,YU210 |
1 | ||
| 17576-56040 |
14B..BU221..GEN;14B,15B#,4Y..BU211,212,222,223,YU210 |
1 | ||
| 17576-56040 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#,4Y..BU212,22#,YU210 |
1 | ||
| 17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER | ||||
| 17504-58030 |
15BF,15BFT..BU212,222 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06042 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06042 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06042 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90917-06042 |
14B..BU221..GEN;14B,15B#..BU101,111,14#,21#,222,223 |
1 | ||
| 90917-06042 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#..BU10#,111,14#,212,213,22# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58560 |
15BF..BU212..TW1 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-58560 |
15BF..BU212..TW1 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-47010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,142,212,222..GEN,SA,TAIW;14B,15BF,15BFT,3B,3RZFE,4Y..BU100,102,11#,140,141,RZU100,YU210 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-47010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT..BU101,142,212,222..GEN,SA,TAIW;14B,15BF,15BFT,3B,3RZFE,4Y..BU100,102,11#,140,141,RZU100,YU210 |
1 | ||
| 17450 - PIPE ASSY, EXHAUST, NO.5 | ||||
| 17450-58031 |
15BF..BU212,222..ARL |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-47010 |
15BF..BU212,222..ARL |
2 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-47010 |
15BF..BU212,222..ARL |
2 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-77010 |
15BF..BU212,222..ARL |
1 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-04029 |
15BF..BU212,222..ARL |
2 | ||
| 17505B - BOLT, U(FOR HEAT INSULATOR CLAMP) | ||||
| 90117-10004 |
15BF..BU212,222..ARL |
2 | ||
| 17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-08011 |
15BF..BU212,222..ARL |
4 | ||
| 17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-08011 |
15BF..BU212,222..ARL |
4 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-58020 |
14B..BU211..40T;15BF..BU212..IV3 |
1 | ||
| 17551-58020 |
14B..BU211..IV2;15BF..BU212,222..ARL |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17567-58010 |
14B..BU221..GEN;14B,15B#,4Y..BU21#,222,223,YU210 |
1 | ||
| 17567-58010 |
14B,15B#,4Y..BU21#,22#,YU210 |
1 | ||
| 17567-58010 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15B#,4Y..BU212,213,22#,YU210 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-17010 |
15BF..BU212..TW1;14B,15B#..BU142,212,222..GEN,SA,TAIW;14B,15BF,3B,3RZFE,4Y..BU10#,11#,14#,211,221,RZU100,YU210 |
1 | ||
| 17567-17010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT,3RZFE,4Y..BU10#,111,14#,212,222,RZU100,YU210..GEN,SA |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-17010 |
15BF..BU212..TW1;14B,15B#..BU142,212,222..GEN,SA,TAIW;14B,15BF,3B,3RZFE,4Y..BU10#,11#,14#,211,221,RZU100,YU210 |
1 | ||
| 17567-17010 |
15BF..BU222..SA;15BF..BU212..TW1;14B..BU211..30T..SA;14B,15BF..BU142,211,221..ARL,GEN;14B,15BF,15BFT,3RZFE,4Y..BU10#,111,14#,212,222,RZU100,YU210..GEN,SA |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17571-58170 |
14B..BU221..GEN;14B,15BF,15BFT..BU211,212,222 |
1 | ||
| 17571-58170 |
14B,15BF,15BFT..BU211,212,221,222 |
1 | ||
| 17571-58170 |
14B..BU211..GEN;14B..BU211..30T..SA;14B,15BF,15BFT..BU212,221,222 |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-58070 |
15BF..BU212,222..ARL |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58100 |
15BF..BU212..TW1 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58100 |
15BF..BU212..TW1 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90170-10028 | ||||
| 90179-06007 | ||||
| 90179-08040 | ||||
| 90461-28002 | ||||
| 90461-32007 | ||||
| 91112-61025 | ||||
| 91512-61035 | ||||
| 91515-61035 | ||||
| 91621-60835 | ||||
| 91622-61045 | ||||
| 91642-81025 | ||||
| 91651-41020 | ||||
| 94130-00802 | ||||
| 94130-61000 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 94531-01000 | ||||

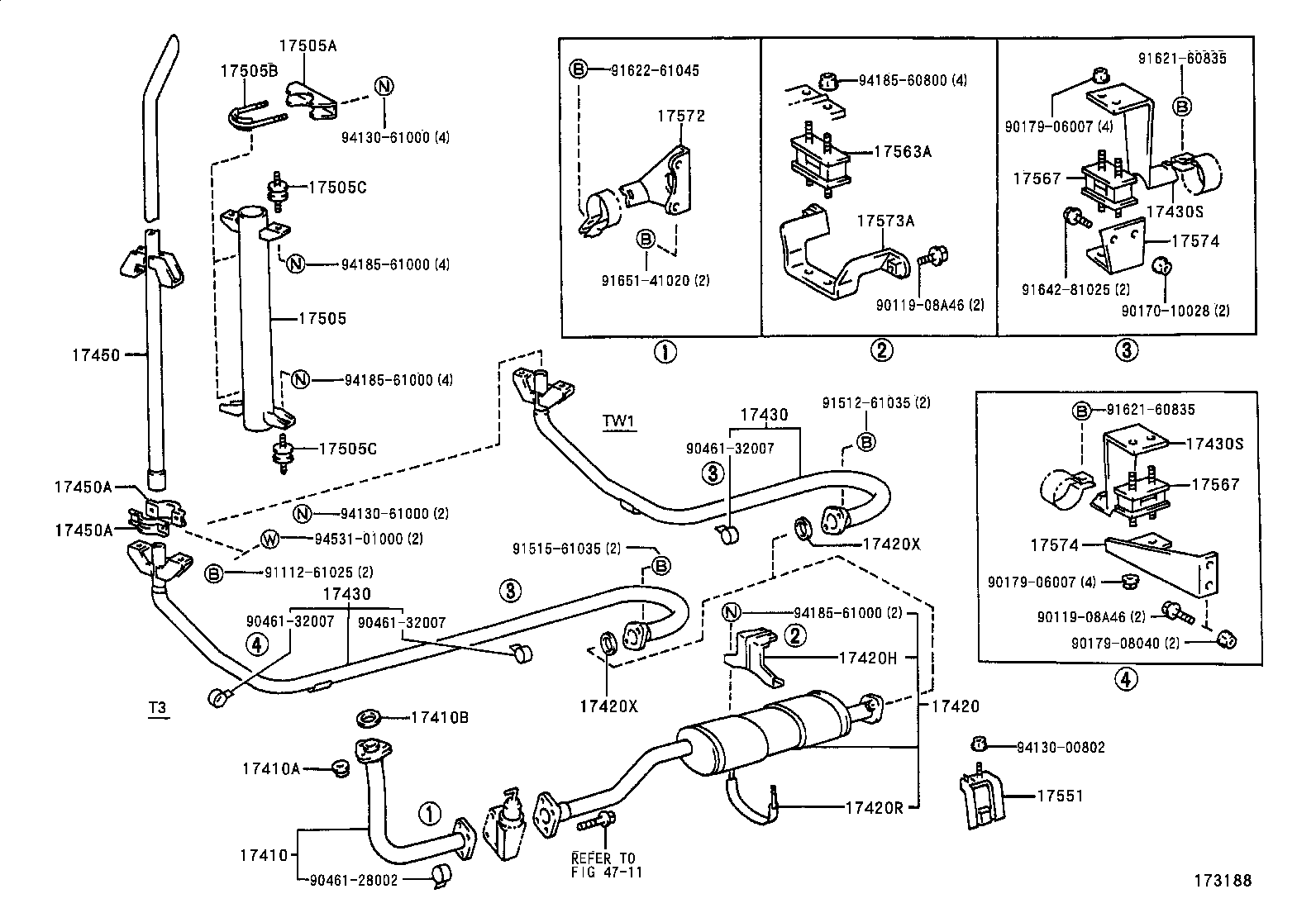

| Linked diagrams | ||||
| 4711 | ||||
