BU212L-TKMQSU3 (1995)
Toyota Dyna200

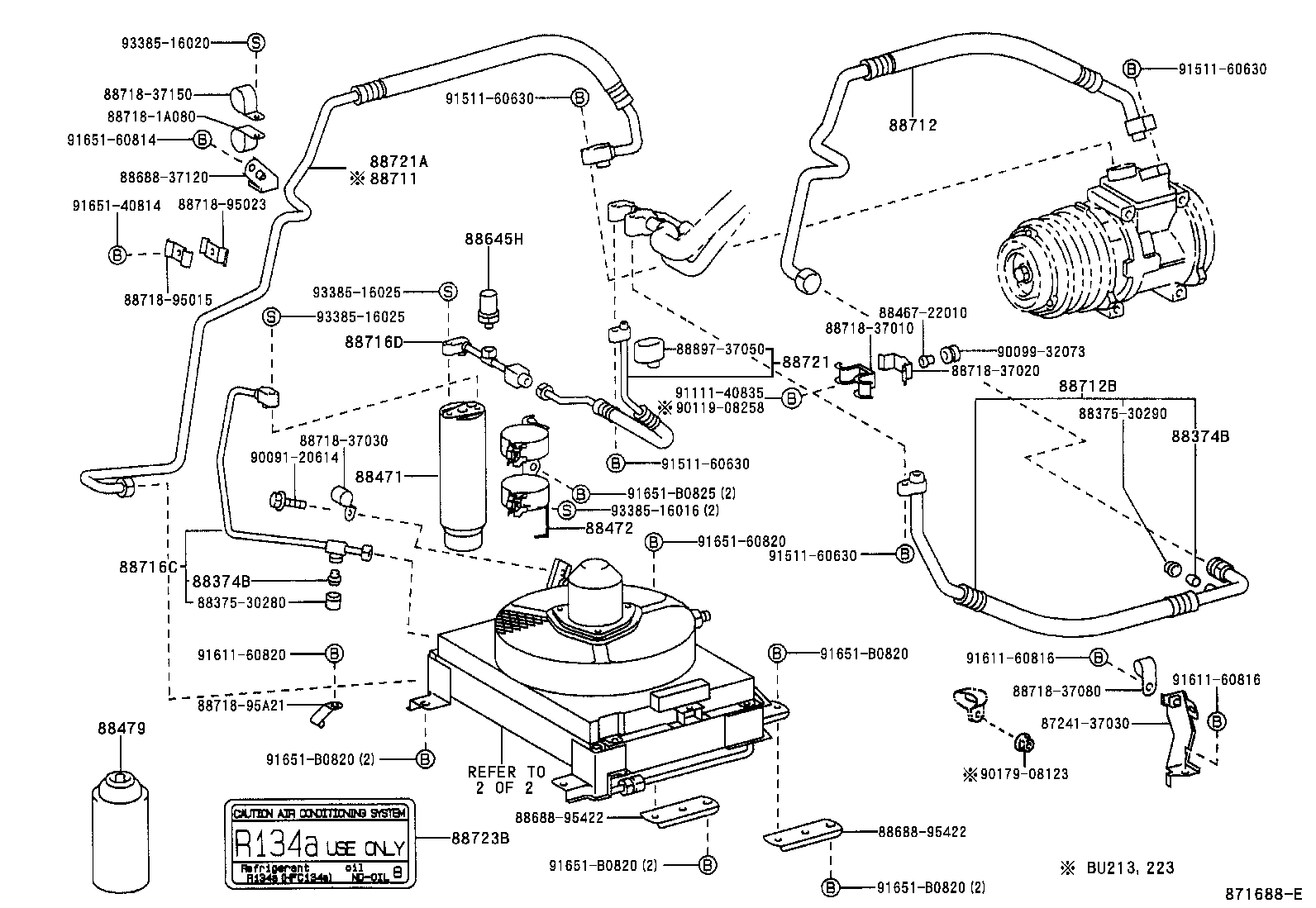

ILLUST NO. 1 OF 3(9505- )BU21#,22#..LHD..GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
BU222;BU212..30T..GEN;BU10#,11#,14#,21#,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
BU140,222..EUR,TAIW;BU21#,221..ARL,GEN,TAIW |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-37050 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02007 |
BU102..TAIW;BU212,222,RZU100..(20T,30T,40T)..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) 250G |
1 | ||
| 90986-02008 |
BU102..TAIW;BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU100,101,11#,14#,211,221..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) 200G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-37270 |
BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37390 |
BU212,222..ARL,TAIW;BU211,221..GEN..(CBU,IV3) |
1 | ||
| 88712-37430 |
BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW) |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-37370 |
BU211,212,221,222..LHD..(GEN,TAIW) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-37200 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-37250 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5 | ||||
| 88721-37200 |
BU21#,22#..LHD..(GEN,TAIW) |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-37130 |
BU212,222..ARL,TAIW;BU211,221..GEN..(CBU,IV3) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 87241-37030 | ||||
| 88375-30280 | ||||
| 88375-30290 | ||||
| 88467-22010 | ||||
| 88688-37120 | ||||
| 88688-95422 | ||||
| 88718-1A080 | ||||
| 88718-37010 | ||||
| 88718-37020 | ||||
| 88718-37030 | ||||
| 88718-37080 | ||||
| 88718-37150 | ||||
| 88718-95015 | ||||
| 88718-95023 | ||||
| 88718-95A21 | ||||
| 88897-37050 | ||||
| 90091-20614 | ||||
| 90099-32073 | ||||
| 90119-08258 | ||||
| 90179-08123 | ||||
| 91111-40835 | ||||
| 91511-60630 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40814 | ||||
| 91651-60814 | ||||
| 91651-60820 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 3(9505- )TD..SA ; (9505- )BU212..ARL,GEN,TAIW ; (9505- )BU142,222..20T,25T,
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
