BU211R-TKMRS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )BU101..GEN,SA ; (9505- )BU100,102,11#,14#,RZU100

Click highlighted areas on diagram

SIDE,UNDER COVER

diagram 51430 51436B 51438 51439A 51441 51441 51441 51441 51442 51442 51445D 51446C 51450 51450 51450 51453 51454C 51455B 51456B 51460A 51467 51468A 51473A 51474 53243D 9017908040 9017908040 9017908040 9017908040 9017908040 9017908040 9017908040 9017908040 9046709013 9046709013 9046709013 9046709013 9046709013 9095001835 9163560820 9163560820 9163560820 9163560820 9163560820 9163560820 9163560825 9163560825 9163560825 9163560825 9163560825 9163560825 9163560825 9163560825 9163560825 9165160825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37030

BU21#,22#,YU210

 1
51436-37030

BU21#,22#,YU210

 1
51436-37030

BU21#,22#,YU210

 1
51436-37010

BU10#,11#,14#,RZU100..DSL,EFI

 2
51438 - BRACKET, ENGINE SIDE COVER, NO.2 RH
51438-37040

BU21#,22#,YU210

 2
51438-37010

BU10#,11#,14#,RZU100

 1
51438-37040

BU21#,22#,YU210

 2
51438-37040

BU21#,22#,YU210

 2
51439A - BRACKET, ENGINE SIDE COVER, NO.2 LH
51439-37010

BU10#,11#,14#,RZU100

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37030

BU211,221,YU210;BU212..LHD..40T

 1
51043-37050

BU21#,22#,YU210

 1
51473-37080

BU101,102,111,14#..RHD..(GEN,SA)

 1
51043-37050

BU21#,22#,YU210

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51044-37050

BU21#,22#,YU210

 1
51474-37030

BU211,221,YU210;BU212..LHD..40T

 1
51044-37050

BU21#,22#,YU210

 1
51470-37050

BU101,102,111,14#..RHD..(GEN,SA)

 1
Common parts
90179-08040
90467-09013
90950-01835
91635-60820
91635-60825
91651-60825

ILLUST NO. 2 OF 2(9505- )BU10#,11#,14#,RZU100

Click highlighted areas on diagram

HOOK

diagram 51171 51172A 51215A 51216A 51961 51962 51962 51962 51963 51963 51963E 9111281455 9111281455 9111281455 9111281465 9413001432 9413001432 9413001432 9462211400 9462211400 9462211400 9462211400
Part # Description Qty Price
51961 - HOOK, NO.1
51961-36030

BU21#,22#,YU210

 1
51961-36040

BU10#,11#,14#,RZU100

 1
51961-36030

BU21#,22#,YU210

 1
51962 - HOOK, NO.2
51961-36020

BU14#,21#,22#,YU210

 1
51961-36040

BU10#,11#,RZU100

 1
51961-36020

BU14#,21#,22#,YU210

 1
51962 - HOOK, NO.2
51961-36020

BU14#,21#,22#,YU210

 1
51961-36040

BU10#,11#,RZU100

 1
51961-36020

BU14#,21#,22#,YU210

 1
51962 - HOOK, NO.2
51961-36020

BU14#,21#,22#,YU210

 1
51961-36040

BU10#,11#,RZU100

 1
51961-36020

BU14#,21#,22#,YU210

 1
Common parts
91112-81455
91112-81465
94130-01432
94622-11400

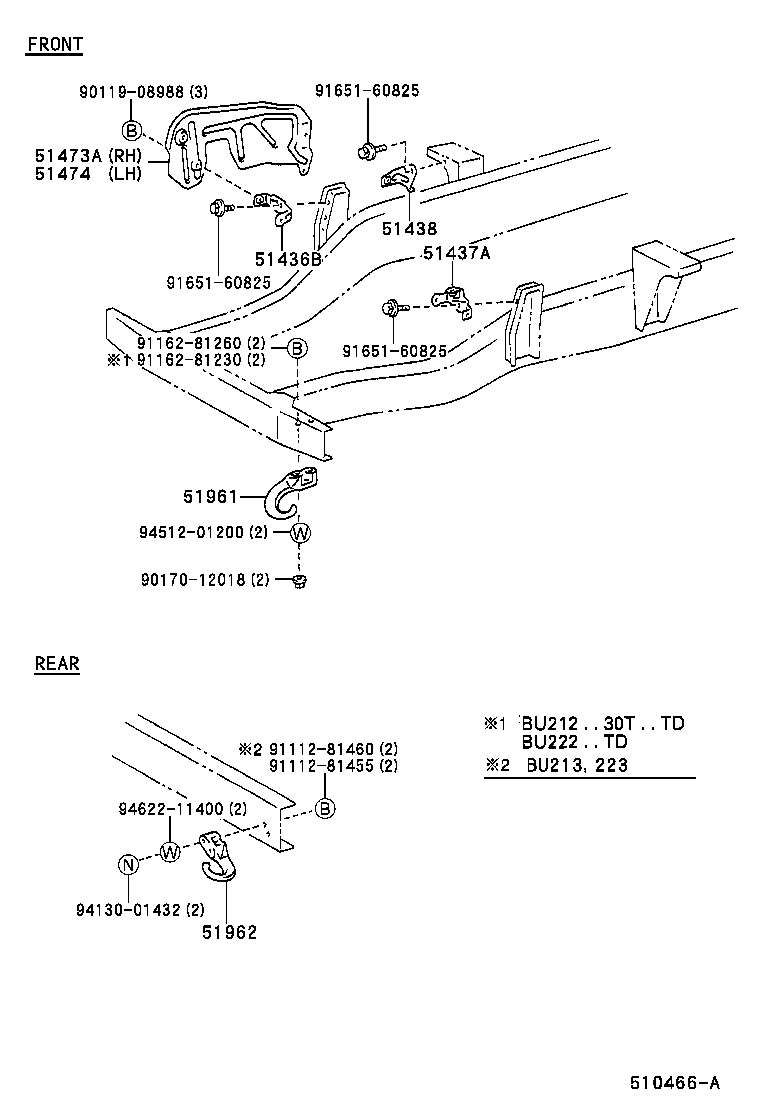

(9505- )BU21#,22#,YU210

Click highlighted areas on diagram

diagram 51436B 51437A 51438 51473A 51474 51961 51962 9011908988 9017012018 9111281455 9111281460 9116281230 9116281260 9165160825 9165160825 9165160825 9413001432 9451201200 9462211400
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37030

BU21#,22#,YU210

 1
51436-37030

BU21#,22#,YU210

 1
51436-37030

BU21#,22#,YU210

 1
51436-37010

BU10#,11#,14#,RZU100..DSL,EFI

 2
51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH
51437-37010

BU21#,22#,YU210

 1
51437-37010

BU211,212,221,222,YU210

 1
51437-37010

BU211,212,221,222,YU210

 1
51438 - BRACKET, ENGINE SIDE COVER, NO.2 RH
51438-37040

BU21#,22#,YU210

 2
51438-37010

BU10#,11#,14#,RZU100

 1
51438-37040

BU21#,22#,YU210

 2
51438-37040

BU21#,22#,YU210

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37030

BU211,221,YU210;BU212..LHD..40T

 1
51043-37050

BU21#,22#,YU210

 1
51473-37080

BU101,102,111,14#..RHD..(GEN,SA)

 1
51043-37050

BU21#,22#,YU210

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51044-37050

BU21#,22#,YU210

 1
51474-37030

BU211,221,YU210;BU212..LHD..40T

 1
51044-37050

BU21#,22#,YU210

 1
51470-37050

BU101,102,111,14#..RHD..(GEN,SA)

 1
51961 - HOOK, NO.1
51961-36030

BU21#,22#,YU210

 1
51961-36040

BU10#,11#,14#,RZU100

 1
51961-36030

BU21#,22#,YU210

 1
51962 - HOOK, NO.2
51961-36020

BU14#,21#,22#,YU210

 1
51961-36040

BU10#,11#,RZU100

 1
51961-36020

BU14#,21#,22#,YU210

 1
Common parts
90119-08988
90170-12018
91112-81455
91112-81460
91162-81230
91162-81260
91651-60825
94130-01432
94512-01200
94622-11400
