BU211R-TKMRS (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )40T

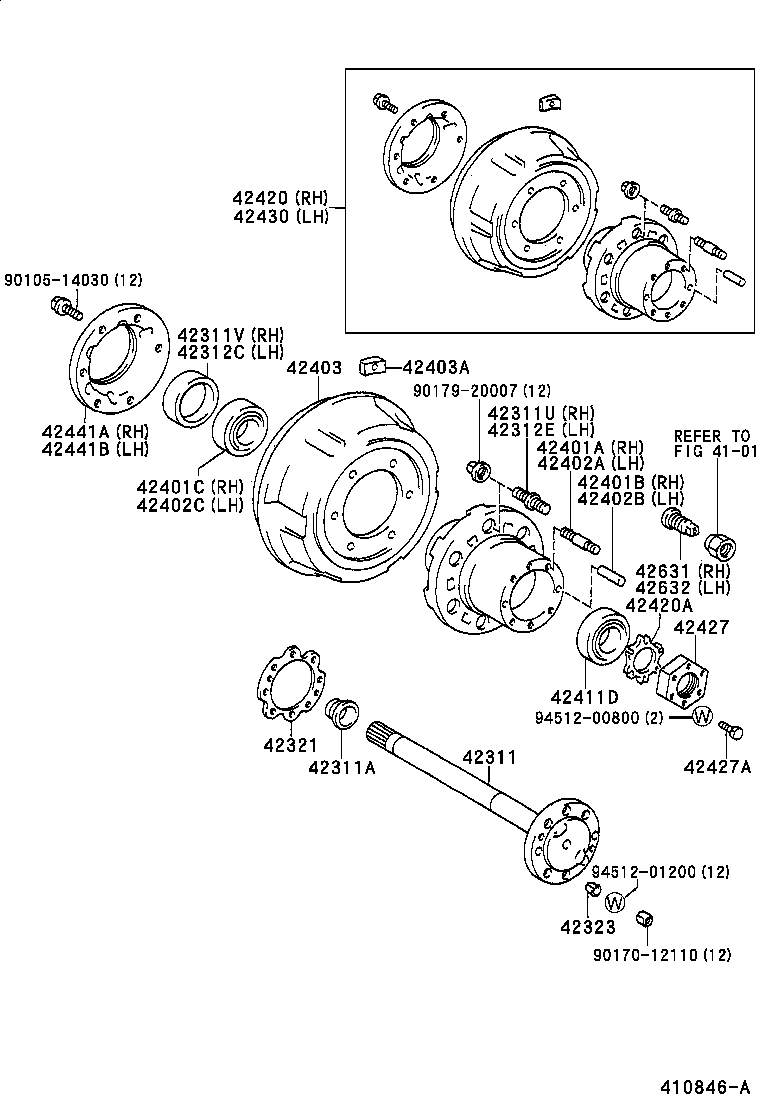

Click highlighted areas on diagram

diagram 4101 42311 42311A 42311U 42311V 42312C 42312E 42321 42323 42401A 42401B 42401C 42402A 42402B 42402C 42403 42403A 42411D 42420 42420A 42427 42427A 42430 42441A 42441B 42631 42632 9010514030 9017012110 9017920007 9451200800 9451201200
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-36131

BU21#,22#..40T

 2
42311-36131

BU21#,22#..40T

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-41001

BU21#,22#..40T

 2
90310-41001

BU21#,22#..40T

 2
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02045

BU21#,22#..40T

 6
90942-02045

BU21#,22#..40T

 6
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-88102

BU21#,22#..40T

 1
90311-88102

BU21#,22#..40T

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-88102

BU21#,22#..40T

 1
90311-88102

BU21#,22#..40T

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02046

BU21#,22#..40T

 6
90942-02046

BU21#,22#..40T

 6
42321 - GASKET, REAR AXLE SHAFT
42321-36020

BU21#,22#..40T

 2
42321-36020

BU21#,22#..40T

 2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-36020

BU21#,22#..40T

 12
42323-36020

BU21#,22#..40T

 12
42401A - BOLT, STUD (FOR REAR AXLE HUB RH)
90116-12009

BU21#,22#..40T

 6
90116-12009

BU21#,22#..40T

 6
42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH)
90250-13066

BU21#,22#..40T

 2
90250-13066

BU21#,22#..40T

 2
42401C - BEARING (FOR REAR AXLE HUB INNER RH)
90368-66006

BU21#,22#..40T

 1
90368-66006

BU21#,22#..40T

 1
42402A - BOLT, STUD (FOR REAR AXLE HUB LH)
90116-12009

BU21#,22#..40T

 6
90116-12009

BU21#,22#..40T

 6
42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH)
90250-13066

BU21#,22#..40T

 2
90250-13066

BU21#,22#..40T

 2
42402C - BEARING (FOR REAR AXLE HUB INNER LH)
90368-66006

BU21#,22#..40T

 1
90368-66006

BU21#,22#..40T

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-37020

BU21#,22#..40T

 2
42431-37020

BU21#,22#..40T

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01122

BU10#,11#,14#,21#,22#,YU210..(DM1,DM6,T3,TW1)..WT

60G

 1
90937-01122

BU142,222;BU10#,11#,140,141,21#,221,223,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT..(ARL,GEN,SA,TAIW)

60G

 1
90937-01120

BU21#,22#..40T

40G

 1
90937-01119

BU21#,22#..40T

30G

 1
90937-01121

BU21#,22#..40T

50G

 1
90937-01118

BU21#,22#..40T

20G

 1
90937-01119

BU21#,22#..40T

30G

 1
90937-01121

BU21#,22#..40T

50G

 1
90937-01122

BU10#,111,14#,21#,22#,RZU100,YU210..(DM1,DM6,T3,TW1)..WT

60G

 1
90937-01117

BU21#,22#..40T

10G

 1
90937-01118

BU21#,22#..40T

20G

 1
90937-01117

BU21#,22#..40T

10G

 1
90937-01120

BU21#,22#..40T

40G

 1
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-57046

BU21#,22#..40T

 2
90368-57046

BU21#,22#..40T

 2
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-37030

BU21#,22#..40T

 1
42420-37030

BU21#,22#..40T

 1
42420A - WASHER, CLAW (FOR REAR AXLE SHAFT)
90214-57002

BU21#,22#..40T

 2
90214-57002

BU21#,22#..40T

 2
42427 - NUT, REAR AXLE BEARING LOCK
42427-36020

BU21#,22#..40T

 2
42427-36020

BU21#,22#..40T

 2
42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET)
90109-08015

BU21#,22#..40T

 2
90109-08015

BU21#,22#..40T

 2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42430-37030

BU21#,22#..40T

 1
42430-37030

BU21#,22#..40T

 1
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-36040

BU21#,22#..40T

 1
42441-36040

BU21#,22#..40T

 1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-36040

BU21#,22#..40T

 1
42441-36040

BU21#,22#..40T

 1
42631 - BOLT, DOUBLE WHEEL STOP, RH
42631-55031

BU21#,22#..40T

 6
42631-55031

BU21#,22#..40T

 6
42632 - BOLT, DOUBLE WHEEL STOP, LH
42632-55031

BU21#,22#..40T

 6
42632-55031

BU21#,22#..40T

 6
Common parts
90105-14030
90170-12110
90179-20007
94512-00800
94512-01200
Linked diagrams
4101
