BU211R-TKMRS (1995)
Toyota Dyna200

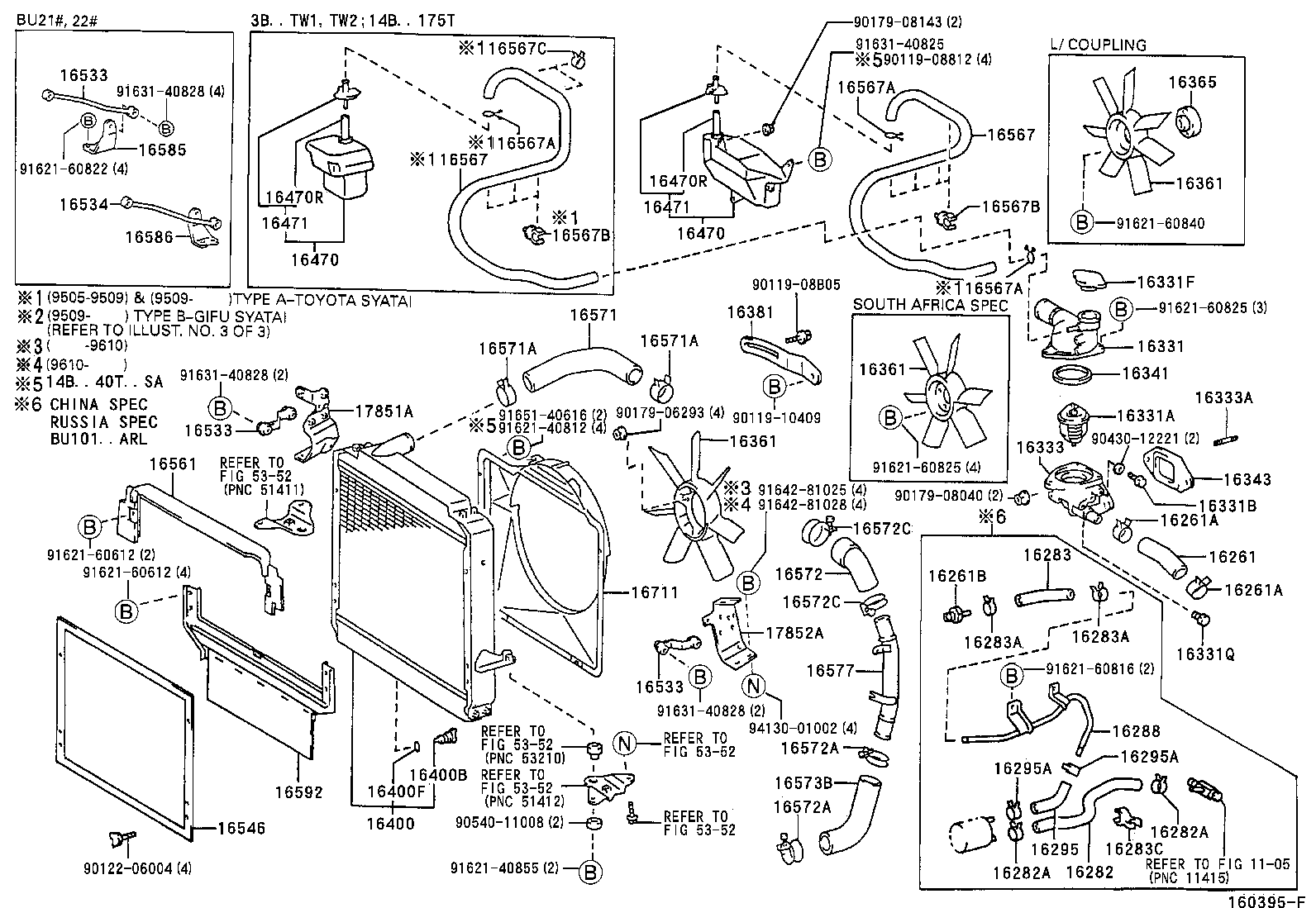

ILLUST NO. 1 OF 3(9505- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 16261-56012 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 90467-28005 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 90467-28005 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 90467-28005 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 90467-28005 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-58090 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 16331-58090 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90916-03102 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12006 |
14B..BU211,221..GEN;15BFT..BU142,222..EUR,SA;14B,15BF..BU101,111,141,212,222..GEN,SA |
1 | ||
| 90341-12006 |
15BFT..BU222..SA;15BFT..BU212..RHD;15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU21#,221..GEN;14B,15B#,3B..BU10#,111,112,14#..GEN,SA |
1 | ||
| 90341-12006 |
15BFT..BU222..LHD;14B,15BF..BU21#,221..GEN;14B,15B#,3B..BU10#,111,112,14#,212..(15T,175T,20T,25T,30T)..(EUR,GEN,SA) |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-54750 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16401-71010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90345-54005 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 90345-54005 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-58080 |
14B..BU111,141,211..RHD;14B..BU111,211..DM6,TW1;14B,15BF,3B..BU10#,110,112,140,142,212,221,222 |
1 | ||
| 16333-58080 |
14B..BU211..TW1;14B..BU111,141,211..RHD;14B,15BF..BU101,111,142,212,221,222..DM6,T1,T2,T3,TW1,TW2 |
1 | ||
| 16333-58050 |
14B,15BF,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92112-60832 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 92112-60832 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16341-56030 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56023 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16343-56023 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16361 - FAN | ||||
| 16361-58020 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,3B..BU100,101,111,140,141..GEN,SA |
1 | ||
| 16361 - FAN | ||||
| 16361-58020 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,3B..BU100,101,111,140,141..GEN,SA |
1 | ||
| 16361 - FAN | ||||
| 16361-58020 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,3B..BU100,101,111,140,141..GEN,SA |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-56022 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,3B..BU100,101,111,140,141..GEN,SA |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-58110 |
14B..BU211..CBU,IV3;14B..BU101..LHD..WT;15BFT..BU212..LHD..40T;15BF..BU212,222..RHD..(ARL,GEN);14B,15BFT..BU101,212..RHD..(20T,25T,30T)..(GEN,SA);14B,15BF,15BFT..BU101,142,221..(T3,TW1)..(20T,25T,40T)..TB;14B,3B..BU100,102,11#,140,141,212,222..(DM1,T2,T3,TW2)..(ARL,EUR,GEN,TAIW) ALTERNATOR 12V 50A |
1 | ||
| 16381-58110 |
14B..BU211..CBU,IV3;14B..BU101..20T..GEN..TB;14B,15BFT..BU101,142,212..LHD..WT;14B,15BFT..BU101,212..RHD..(20T,25T,30T)..(GEN,SA);14B,15BF..BU111,14#,212,221,222..(DM1,T3,TW1)..(ARL,GEN) ALTERNATOR 12V 50A |
1 | ||

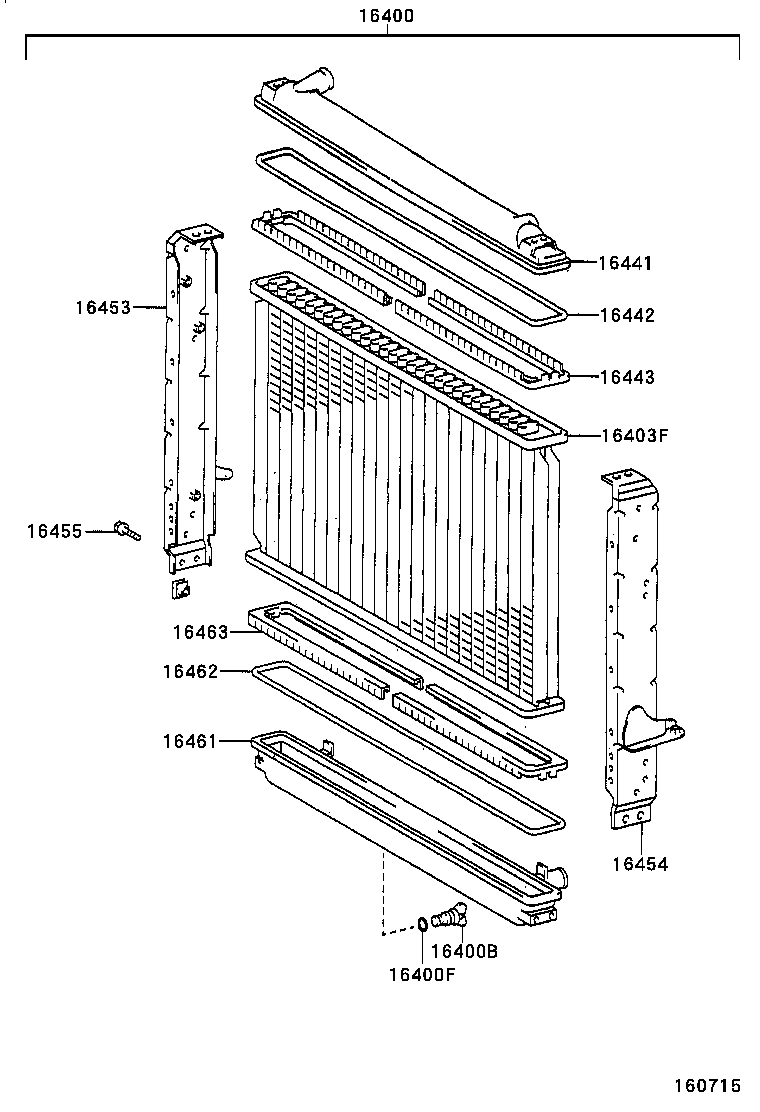

| 16400 - RADIATOR ASSY | ||||
| 16400-58460 |
14B..BU211..30T..SA;14B,15BF..BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 16400-58610 |
14B..BU211..30T..SA;15BF..BU212..30T..GEN..IV3;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU211,221,222..ARL,GEN CORE THICKNESS=36 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58070 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 16470-58070 |
14B,15B#..BU10#,111,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58070 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 16470-58070 |
14B,15B#..BU10#,111,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 90445-12078 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 90445-12078 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 90445-12078 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 90445-12078 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-58050 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 16405-58050 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16405-58050 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-58050 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,DM6,T1,T2,T3 |
1 | ||
| 16405-58050 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 16405-58050 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58020 |
14B,15B#..BU21#,22# |
1 | ||
| 16505-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
2 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16506-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16546 - PROTECTOR, RADIATOR | ||||
| 16546-58030 |
14B..BU211,221..GEN |
1 | ||
| 16546-58030 |
14B..BU221..GEN;14B..BU211..CBU,IV2;14B..BU211..30T..GEN..IV3;14B..BU211..LHD..40T..IV3 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-58020 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223 |
1 | ||
| 16561-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58020 |
14B,15BF,15BFT,3B..BU10#,11#,14#..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 16567-58010 |
14B..BU211..30T..SA;14B,15BFT,3B..BU100,101,142..TW1,TW2;14B,15BFT..BU212,222..(GEN,TAIW)..IV3;14B,15BF..BU211,212,221,222..T3..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58020 |
14B,15BF,15BFT,3B..BU10#,11#,14#..DM1,DM6,DM7,T1,T2,T3,T4 |
1 | ||
| 16567-58010 |
14B..BU211..30T..SA;14B,15BFT,3B..BU100,101,142..TW1,TW2;14B,15BFT..BU212,222..(GEN,TAIW)..IV3;14B,15BF..BU211,212,221,222..T3..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,TAIW |
2 | ||
| 90467-11085 |
14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15BF,15BFT..BU212..T3;14B,15B#,3B..BU10#,11#,14#,213,222,223 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,TAIW |
2 | ||
| 90467-11085 |
14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15BF,15BFT..BU212..T3;14B,15B#,3B..BU10#,11#,14#,213,222,223 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,TAIW |
2 | ||
| 90467-11085 |
14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15BF,15BFT..BU212..T3;14B,15B#,3B..BU10#,11#,14#,213,222,223 |
2 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..(DM1,DM6,T1,T2,T3)..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90469-12009 |
15BF..BU212;14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223..DM1,DM6,DM7,T1,T2,T3,T4 |
4 | ||
| 16567B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2) | ||||
| 90469-12009 |
14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,21#,22#..(DM1,DM6,T1,T2,T3)..(ARL,EUR,GEN,TAIW) |
4 | ||
| 90469-12009 |
15BF..BU212;14B..BU211..30T..SA;14B..BU211,221..T3..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223..DM1,DM6,DM7,T1,T2,T3,T4 |
4 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-58100 |
14B,15BF,15BFT..BU211,212,221,222 |
1 | ||
| 16571-58100 |
14B,15BF,15BFT..BU211,212,221,222 |
1 | ||
| 16571-58080 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 90467-42001 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 90467-42001 |
14B,15B#..BU10#,111,14#,21#,22# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56091 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 16572-56091 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 96111-10510 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 90467-41005 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 96111-10510 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 96111-10510 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 90467-41005 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
2 | ||
| 96111-10510 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10570 |
14B,15B#,3B..BU10#,11#,14#,21#,22# WATER PUMP SIDE |
1 | ||
| 90467-48003 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10490 |
14B,15B#,3B..BU10#,11#,14#,21#,22# RADIATOR PIPE SIDE |
1 | ||
| 90467-48003 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-41007 |
14B,15B#,3B..BU10#,11#,14#,21#,22# RADIATOR PIPE SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10570 |
14B,15B#,3B..BU10#,11#,14#,21#,22# WATER PUMP SIDE |
1 | ||
| 90467-48003 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 RADIATOR PIPE SIDE |
1 | ||
| 96111-10490 |
14B,15B#,3B..BU10#,11#,14#,21#,22# RADIATOR PIPE SIDE |
1 | ||
| 90467-48003 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 WATER PUMP SIDE |
1 | ||
| 90467-41004 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 RADIATOR PIPE SIDE |
1 | ||
| 90467-41007 |
14B,15B#,3B..BU10#,11#,14#,21#,22# RADIATOR PIPE SIDE |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-58070 |
14B,15BF,15BFT..BU211,212,221,222 |
1 | ||
| 16573-58040 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16573-58070 |
14B,15BF,15BFT..BU211,212,221,222 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-58040 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 16577-58040 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16585-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16586-58010 |
14B,15B#..BU21#,22# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-58130 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT..BU212,222 |
1 | ||
| 16711-58120 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 17851A - BRACKET, RADIATOR SUPPORT, NO.1 | ||||
| 17851-58011 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 17852A - BRACKET, RADIATOR SUPPORT, NO.2 | ||||
| 17852-58011 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| Common parts | ||||
| 90119-08812 | ||||
| 90119-08B05 | ||||
| 90119-10409 | ||||
| 90122-06004 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08143 | ||||
| 90430-12221 | ||||
| 90540-11008 | ||||
| 91621-40812 | ||||
| 91621-40855 | ||||
| 91621-60612 | ||||
| 91621-60816 | ||||
| 91621-60822 | ||||
| 91621-60825 | ||||
| 91621-60840 | ||||
| 91631-40825 | ||||
| 91631-40828 | ||||
| 91642-81025 | ||||
| 91642-81028 | ||||
| 91651-40616 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 5352 | ||||
ILLUST NO. 2 OF 3(9505- )14B,15B#,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-58460 |
14B..BU211..30T..SA;14B,15BF..BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 16400-58610 |
14B..BU211..30T..SA;15BF..BU212..30T..GEN..IV3;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU211,221,222..ARL,GEN CORE THICKNESS=36 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-58460 |
14B..BU211..30T..SA;14B,15BF..BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 16403-58610 |
14B..BU211..30T..SA;15BF..BU212..30T..GEN..IV3;15BF..BU212..RHD..(ARL,GEN);14B,15BF..BU211,221,222..ARL,GEN CORE THICKNESS=36 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-58420 |
14B,15B#,3B..BU10#,11#,14# |
1 | ||
| 16441-58400 |
14B..BU101..20T..GEN..TB;14B..BU101..RHD..(GEN,SA);14B,15BFT..BU101,142..LHD..WT..GEN;14B,15BF,3B..BU100,102,11#,14#..ARL,GEN CORE THICKNESS=48 |
1 | ||
| 16441-58610 |
14B..BU211..30T..SA;14B,15BF,15BFT..BU211,212,221,222..ARL,GEN CORE THICKNESS=36 |
1 | ||
| 16441-58460 |
14B..BU211..30T..SA;14B,15B#..BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-58420 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16442-58460 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-58420 |
14B,15B#,3B..BU10#,11#,14# |
2 | ||
| 16443-58460 |
14B..BU211..30T..SA;14B,15B#..BU21#,22#..ARL,GEN,TAIW |
2 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-58460 |
14B,15BF..BU211,212,221,222 |
1 | ||
| 16453-58420 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16453-58460 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-58420 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16454-58460 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223 |
1 | ||
| 16454-58460 |
14B,15BF..BU211,212,221,222 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
8 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-58460 |
14B..BU211..30T..SA;14B,15B#..BU21#,22#..ARL,GEN,TAIW |
1 | ||
| 16461-58400 |
14B..BU101..20T..GEN..TB;14B..BU101..RHD..(GEN,SA);14B,15BFT..BU101,142..LHD..WT..GEN;14B,15BF,3B..BU100,102,11#,14#..ARL,GEN CORE THICKNESS=48 |
1 | ||
| 16461-58610 |
14B..BU211..30T..SA;14B,15BF,15BFT..BU211,212,221,222..ARL,GEN CORE THICKNESS=36 |
1 | ||
| 16461-58420 |
14B,15B#,3B..BU10#,11#,14# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-58420 |
14B,15BF,15BFT,3B..BU10#,11#,14# |
1 | ||
| 16442-58460 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#..BU212,213,222,223 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16443-58420 |
14B,15B#,3B..BU10#,11#,14# |
2 | ||
| 16443-58460 |
14B..BU211..30T..SA;14B,15B#..BU21#,22#..ARL,GEN,TAIW |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
