BU211L-TKMRS3 (1995)
Toyota Dyna200
(9505- )

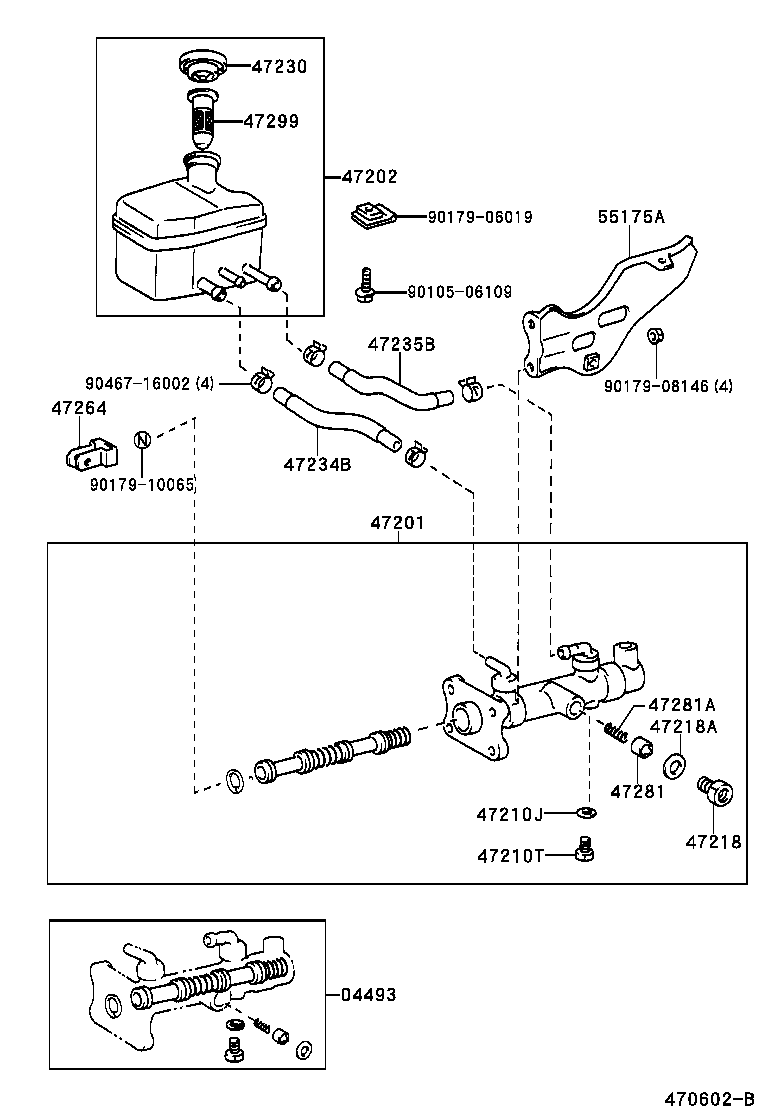

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-37020 |
BU211..40T;BU112,142,RZU100..EUR,GEN,TAIW;BU101,102,141,212,22#,YU210..30T,40T;BU101,140,211..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 04493-37021 |
BU142..ARL,EUR;BU212..TD..IV3;BU102,212..(30T,40T)..DSL;BU100,101,110,112,140,141,211,22#,RZU100,YU210..(DM1,DM6,DM7,T3,TW1)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER) |
1 | ||
| 04493-37022 |
BU222..TD..SA;BU142..ARL,EUR;BU212,222..ARL,EUR,GEN;BU101,141,211,213,221,223,RZU100,YU210..(DM6,T3,TW1)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER) |
1 | ||
| 04493-37022 |
BU101..T3..WT;BU222..TD..SA;BU110,142..ARL,EUR;BU102,112,140,141,211,213,221,223,YU210..25T,30T,40T;BU100,212,222,RZU100..(DM6,T3,TW1)..WT..(ARL,EUR,GEN) W(FR DISC BRAKE:RR AUTO ADJUSTER OR TANDEM BOOSTER) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-37070 |
BU112;BU140,142..EUR;BU211..LHD..40T;BU101,102,212,22#..LHD..T3..WT..TB |
1 | ||
| 47201-37070 |
BU142,222..EUR;BU211..LHD..40T;BU212..LHD..40T..TD;BU101,213,221,223..LHD..WT..TB |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37040 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36070 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47230-37020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-37040 |
BU21#,22#..LHD |
1 | ||
| 47234-37070 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37030 |
BU21#,22#..LHD |
1 | ||
| 47235-37060 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
BU102..DSL;BU222..TD..SA;BU212..ARL,GEN,TAIW;BU142,222..(20T,25T,40T)..(ARL,EUR,GEN,TAIW);BU100,101,11#,140,141,211,213,221,223,RZU100,YU210..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 47264-50010 |
BU222..TD..SA;BU212..ARL,GEN;BU142,222..(20T,25T,40T)..(ARL,EUR,GEN);BU101,111,141,211,213,221,223,RZU100,YU210..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 47299-26020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-37020 |
BU211..40T;BU101,14#,211..(20T,25T,30T)..(EUR,SA);BU112,141,142,RZU100..(20T,30T)..(GEN,TAIW);BU101,102,212,213,22#,YU210..(T3,TW1)..WT..TB |
1 | ||
| 55175-37020 |
BU212;BU211..40T;BU101,141,211..SA;BU101,14#,213,22#,YU210..(30T,40T)..(ARL,GEN,SA) |
1 | ||
| 55175-37020 |
BU211..40T;BU101,14#..30T;BU101,14#,211..EUR,SA;BU212,213,22#,RZU100,YU210..DM6,T3,TW1 |
1 | ||
| 55175-37020 |
BU212;BU211..40T;BU101,141,211..SA;BU101,14#,213,22#,YU210..30T,40T |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 90467-16002 | ||||
