BU211L-TKMRS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,15B#,3B

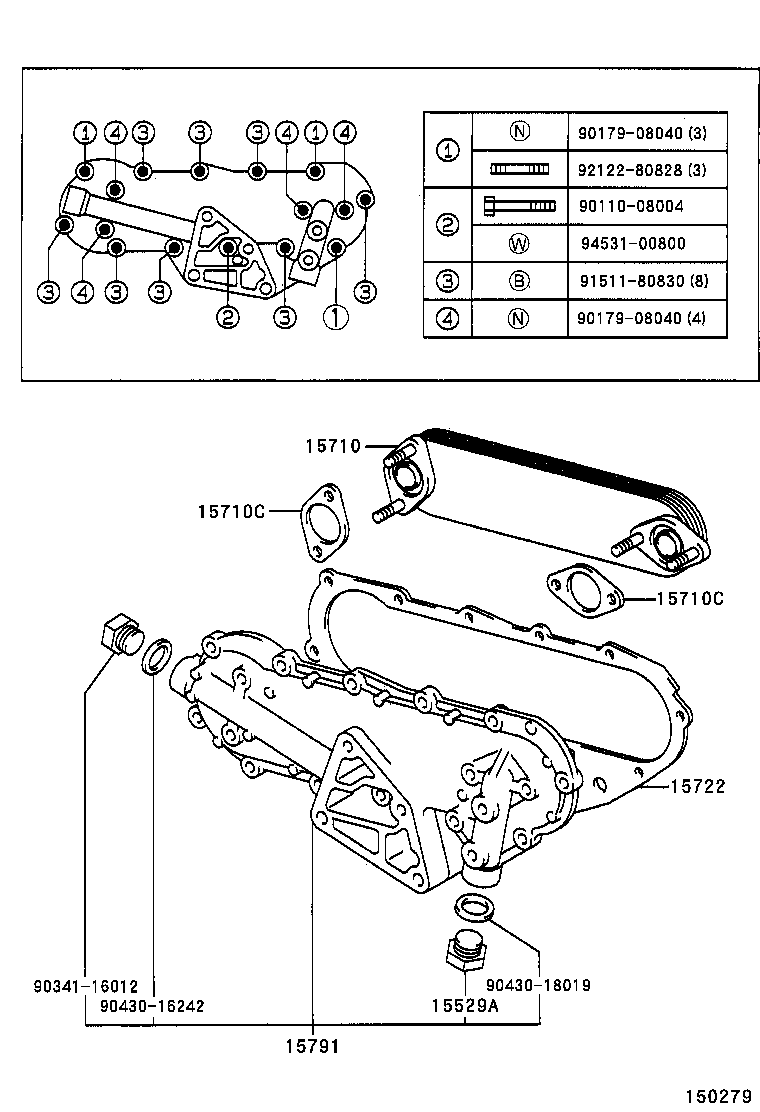

Click highlighted areas on diagram

diagram 15529A 15710 15710C 15710C 15722 15791 9011008004 9017908040 9017908040 9034116012 9043016242 9043018019 9151180830 9212280828 9453100800
Part # Description Qty Price
15529A - PLUG
90341-18006

14B,15B#..BU10#,111,14#,21#,22#

 1
90341-18006

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
15710 - COOLER ASSY, OIL
15710-58030

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
15710-58030

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

 1
15710C - GASKET(FOR OIL COOLER)
15785-58010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 2
15785-58010

14B,15B#..BU10#,111,14#,21#,22#

 2
15710C - GASKET(FOR OIL COOLER)
15785-58010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 2
15785-58010

14B,15B#..BU10#,111,14#,21#,22#

 2
15722 - GASKET, OIL COOLER
15725-56020

14B,15B#..BU10#,111,14#,21#,22#

 1
15725-56020

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
15791 - CASE, OIL COOLER
15701-58050

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
15701-58050

14B,15B#..BU10#,111,14#,21#,22#

 1
Common parts
90110-08004
90179-08040
90341-16012
90430-16242
90430-18019
91511-80830
92122-80828
94531-00800
