BU211L-TKMRS (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

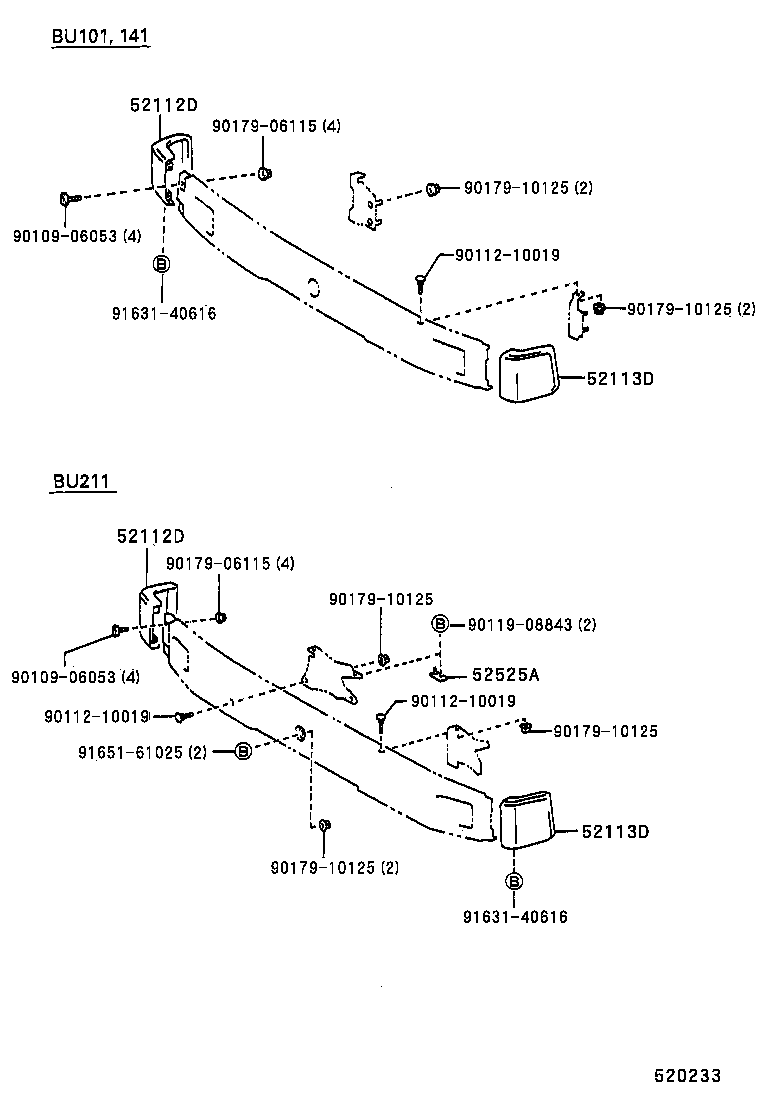

(9505- )BU101,141,211..GEN,SA

Click highlighted areas on diagram

THAILAND SPEC

diagram 52112D 52112D 52113D 52113D 52525A 9010906053 9010906053 9011210019 9011210019 9011210019 9011908843 9017906115 9017906115 9017910125 9017910125 9017910125 9017910125 9017910125 9163140616 9163140616 9165161025
Part # Description Qty Price
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210..ARL,GEN,SA

 2
Common parts
90109-06053
90112-10019
90119-08843
90179-06115
90179-10125
91631-40616
91651-61025

(9505- )BU10#,11#,14#,RZU100

Click highlighted areas on diagram

diagram 52111E 75111A 75112C 9011908530 9011908530 9163260614 9163260614
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37900

BU10#,11#,14#

 1
52101-37903

BU21#,22#,YU210

 1
52101-37907

BU10#,11#,14#,RZU100

 1
52101-37903

BU21#,22#,YU210..ARL,GEN,SA

 1
52101-37904

BU211,221..GEN;BU212..LHD..40T..TD

W(FRONT FOG LAMP)

 1
52101-37907

BU10#,111,14#,RZU100..ARL,GEN,SA

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210..ARL,GEN,SA

 1
Common parts
90119-08530
91632-60614

(9505- )BU101..GEN,SA ; (9505- )BU142..20T,25T ; (9505- )BU100,102,11#,140

Click highlighted areas on diagram

FRONT SNORKEL TYPE AIR CLEANER

diagram 52111C 52111C 52111C 52111E 52141A 52142A 52711A 75111A 9011908530 9011908530 9017910125 9017910125 9017910125 9163260614
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37900

BU10#,11#,14#

 1
52101-37903

BU21#,22#,YU210

 1
52101-37907

BU10#,11#,14#,RZU100

 1
52101-37903

BU21#,22#,YU210..ARL,GEN,SA

 1
52101-37904

BU211,221..GEN;BU212..LHD..40T..TD

W(FRONT FOG LAMP)

 1
52101-37907

BU10#,111,14#,RZU100..ARL,GEN,SA

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210..ARL,GEN,SA

 1
Common parts
90119-08530
90179-10125
91632-60614

(9505- )BU21#,22#,YU210

Click highlighted areas on diagram

diagram 52111E 52525A 52525A 75111A 9011908843 9011908843 9017910125 9017910125 9163260614 9165161025 9165161025
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37900

BU10#,11#,14#

 1
52101-37903

BU21#,22#,YU210

 1
52101-37907

BU10#,11#,14#,RZU100

 1
52101-37903

BU21#,22#,YU210..ARL,GEN,SA

 1
52101-37904

BU211,221..GEN;BU212..LHD..40T..TD

W(FRONT FOG LAMP)

 1
52101-37907

BU10#,111,14#,RZU100..ARL,GEN,SA

 1
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210..ARL,GEN,SA

 2
52525A - RETAINER, FRONT BUMPER BRACKET
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210

 2
52525-95400

BU21#,22#,YU210..ARL,GEN,SA

 2
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210

 1
75111-37010

BU10#,111,14#,21#,22#,RZU100,YU210..ARL,GEN,SA

 1
Common parts
90119-08843
90179-10125
91632-60614
91651-61025
