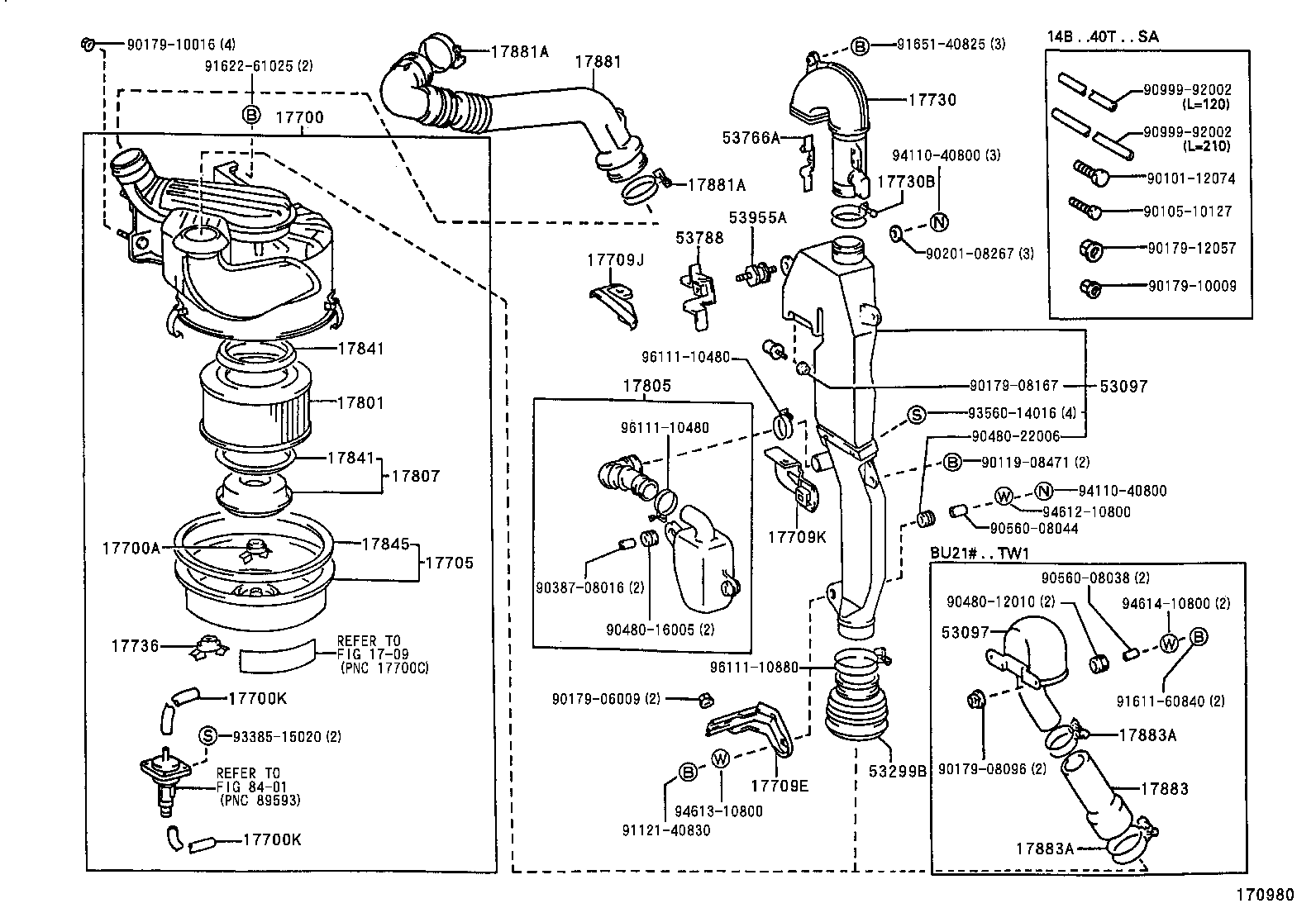

BU211L-TKMQS3 (1995)
Toyota Dyna200
(9505- )14B,15BF..BU211,212,221,222
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58521 |
14B,15BF..BU21#,22#..T3..(ARL,GEN) |
1 | ||
| 17700-58520 |
14B,15BF..BU21#,22#..T3..(ARL,GEN,TAIW) |
1 | ||
| 17700-58522 |
15BF..BU212,222..T3;14B..BU211,221..T3..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58300 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,212..RHD;14B,15BFT..BU102,111,112,142,21#,22#..(DM1,DM6,T3,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17705-58330 |
15BF,15BFT..BU212,222;14B,15BFT,15BFTE..BU21#,221,223..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
3B..BU140..EUR;14B..BU101..T1..IV3;14B,3B..BU140,141..RHD;14B..BU101..T3..(GEN,SA);14B,15BF,15BFT..BU211,212..T3;14B,15B#,3B..BU100,102,11#,142,213,22#..DM1,DM6,T3,T4,TW1 |
1 | ||
| 53773-95401 |
14B..BU101..T1..IV3;14B,15BF..BU141,212..RHD..T3;14B,15B#..BU102,111,142,213,22#;14B,15BFT..BU101,211,212..T3..(GEN,SA) |
1 | ||
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
3B..BU140..EUR;14B,3B..BU140,141..RHD;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,142..DM1,DM6,T3 |
1 | ||
| 53764-95406 |
3B..BU140..EUR;14B..BU101..WT..CBU;14B..BU101..LHD..IV3;14B,3B..BU140,141..RHD..25T;14B,15B#,3B..BU100,102,11#,142..DM1,DM6,T3 |
1 | ||
| 53764-95404 |
14B..BU211,221..LHD..T3 REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95402 |
14B,15B#..BU21#,22#..T3 |
1 | ||
| 53765-95402 |
14B,15B#..BU21#,22#..T3 |
1 | ||
| 53765-37010 |
3B..BU140..EUR;14B,3B..BU140,141..RHD;14B..BU101..ST..IV3..TS;14B,15B#,3B..BU10#,11#,142..DM1,DM6,T3 |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
14B..BU101..T1..IV3;14B..BU101..T3..(GEN,SA);14B,15BF,15BFT,3B..BU100,102,11#,14#..(DM1,DM6,T3,T4)..(ARL,GEN,SA,TAIW) |
1 | ||
| 17730-56031 |
14B,15B#..BU21#,221..T3..(ARL,GEN) |
1 | ||
| 17730-56031 |
15BFT..BU212..CBU;14B..BU211..30T..SA;15BF..BU212..RHD..T3;15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN;15BF,15BFT..BU222..ARL,SA |
1 | ||
| 17730-56031 |
14B..BU211..T3..GEN;14B..BU211..30T..SA;15BF,15BFT..BU222..ARL,SA;14B,15BF,15BFT..BU212,221..T3 |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
15BFT..BU212..CBU;14B..BU211..30T..SA;14B..BU101..T1..IV3;15BF..BU212..RHD..T3;15BFT..BU212..LHD..40T;15BF,15BFT..BU222..ARL,SA;14B..BU101..(T3,TW2)..(GEN,SA);14B,15BF,3B..BU100,102,11#,14#..DM1,DM6,T3,T4;14B,3B..BU100,211,221..(T3,TW2)..(175T,30T,40T)..GEN |
1 | ||
| 96111-10880 |
15B#..BU212..T3;3B..BU100..175T..GEN;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,14#,211,221..(DM1,DM6,T3)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 96111-10880 |
14B..BU101..T1..IV3;14B..BU211..30T..SA;15BF,15BFT..BU222..ARL,SA;14B..BU101..(T3,TW2)..(GEN,SA);14B,15BF,15BFT..BU102,111,141,212,221..DM1,DM6,T3;14B,15BF,15BFT..BU142,211..T3..(20T,30T,40T)..(ARL,GEN) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58030 |
15BF..BU212;3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,222..RHD;14B,15BF..BU102,111,112,211,212,221,222..(DM1,DM6,T3,T4,TW1)..(GEN,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
3B..BU140..EUR;15BF,15BFT..BU212,222;14B,15BF,15BFT,3B..BU10#,110,14#,222..RHD;14B,15B#..BU102,111,112,142,21#,22#..(DM1,DM6,T3,T4,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58260 |
14B..BU211,212,221,222 |
1 | ||
| 17881-58260 |
14B..BU211,221 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU141..RHD;BU211,212..T3;BU101..T1..IV3;BU101..T3..(GEN,SA);BU102,111,142,213,22# |
1 | ||
| 53299-95401 |
BU140..EUR;BU211,212..T3;BU101..T1..IV3;BU140,141..RHD;BU101..T3..(GEN,SA);BU100,102,11#,142,213,22#..DM1,DM6,T3,T4,TW1 |
1 | ||
| 53766A - BRACKET, AIR CLEANER INLET PIPE | ||||
| 53766-95402 |
BU211,221..LHD..T3 REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53788 - BRACKET, AIR CLEANER INLET, NO.6 | ||||
| 53788-95400 |
BU21#,22#..T3..DSL;BU212..LHD..40T..TD |
1 | ||
| 53788-95400 |
BU222..ARL,SA;BU212..30T..TD..CBU;BU212..(25T,40T)..TD;BU211,212,221..T3..DSL |
1 | ||
| 53788-95400 |
BU222..ARL,SA;BU211,212,221..T3 |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU142..ARL,EUR;BU101..T1..IV3;BU101..WT..(GEN,SA);BU101..20T..GEN..TB;BU100,102,11#,140,141..(DM1,DM6,T3,T4)..DSL..(ARL,EUR,GEN,TAIW) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53955-95402 |
BU211,212,221,222..T3..(ARL,GEN,SA) |
3 | ||
| 53955-95402 |
BU211,212,221,222..T3..(ARL,GEN,SA,TAIW) |
3 | ||
| Common parts | ||||
| 90101-12074 | ||||
| 90105-10127 | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08096 | ||||
| 90179-08167 | ||||
| 90179-10009 | ||||
| 90179-10016 | ||||
| 90179-12057 | ||||
| 90201-08267 | ||||
| 90387-08016 | ||||
| 90480-12010 | ||||
| 90480-16005 | ||||
| 90480-22006 | ||||
| 90560-08038 | ||||
| 90560-08044 | ||||
| 90999-92002 | ||||
| 91121-40830 | ||||
| 91611-60840 | ||||
| 91622-61025 | ||||
| 91651-40825 | ||||
| 93385-15020 | ||||
| 93560-14016 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
| 96111-10480 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

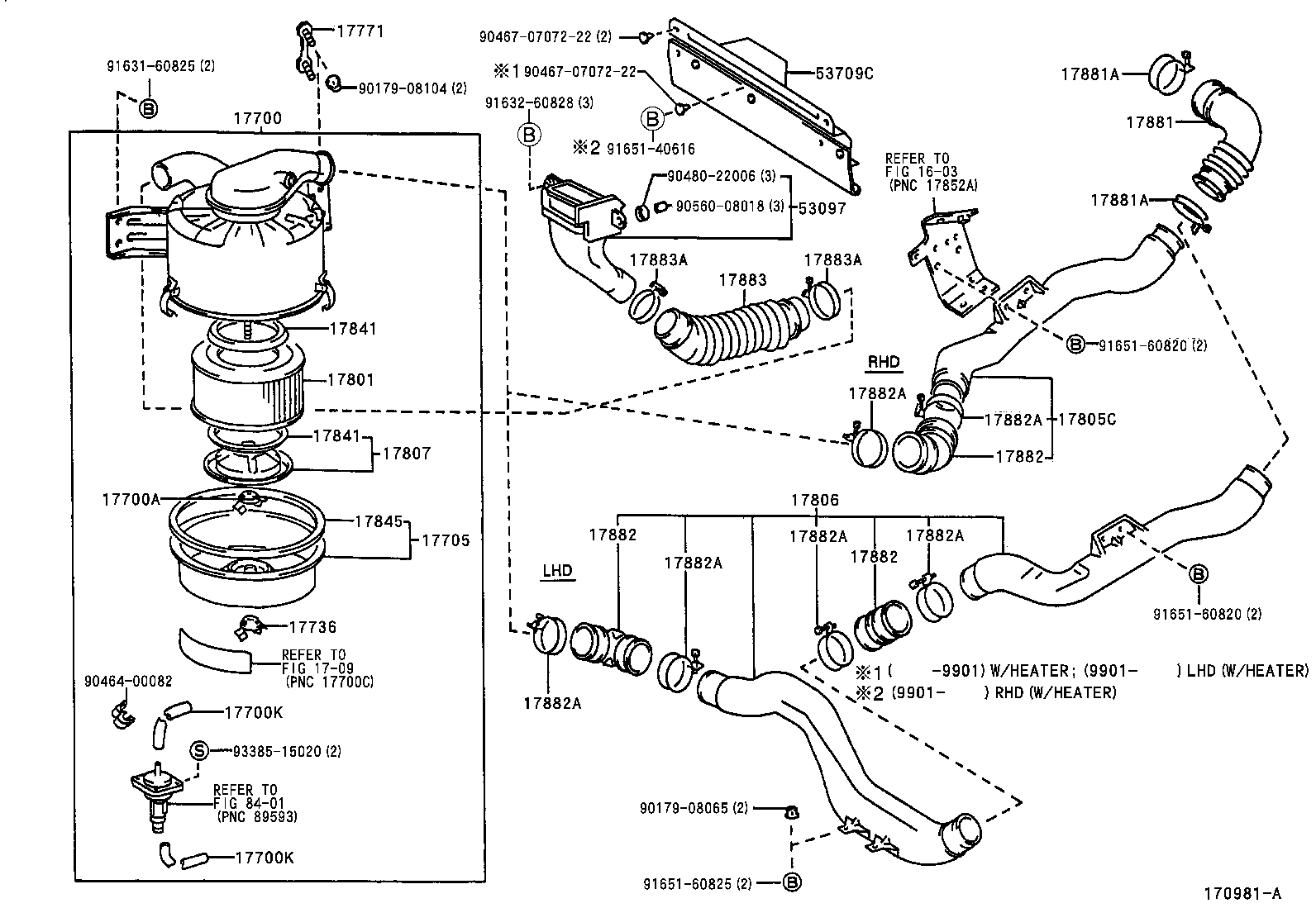

ILLUST NO. 1 OF 2(9505- )14B..BU101..GEN,SA ; (9505- )14B..BU101..T2,TW2..ARL ; (9505- )14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58521 |
14B,15BF..BU21#,22#..T3..(ARL,GEN) |
1 | ||
| 17700-58521 |
14B,15BF..BU21#,22#..T3..(ARL,GEN) |
1 | ||
| 17700-58520 |
14B,15BF..BU21#,22#..T3..(ARL,GEN,TAIW) |
1 | ||
| 17700-58520 |
14B,15BF..BU21#,22#..T3..(ARL,GEN,TAIW) |
1 | ||
| 17700-58522 |
15BF..BU212,222..T3;14B..BU211,221..T3..GEN |
1 | ||
| 17700-58522 |
15BF..BU212,222..T3;14B..BU211,221..T3..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58300 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,212..RHD;14B,15BFT..BU102,111,112,142,21#,22#..(DM1,DM6,T3,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17705-58300 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,212..RHD;14B,15BFT..BU102,111,112,142,21#,22#..(DM1,DM6,T3,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17705-58330 |
15BF,15BFT..BU212,222;14B,15BFT,15BFTE..BU21#,221,223..GEN |
1 | ||
| 17705-58330 |
15BF,15BFT..BU212,222;14B,15BFT,15BFTE..BU21#,221,223..GEN |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58030 |
15BF..BU212;3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,222..RHD;14B,15BF..BU102,111,112,211,212,221,222..(DM1,DM6,T3,T4,TW1)..(GEN,TAIW) |
1 | ||
| 17807-58030 |
15BF..BU212;3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,222..RHD;14B,15BF..BU102,111,112,211,212,221,222..(DM1,DM6,T3,T4,TW1)..(GEN,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
3B..BU140..EUR;15BF,15BFT..BU212,222;14B,15BF,15BFT,3B..BU10#,110,14#,222..RHD;14B,15B#..BU102,111,112,142,21#,22#..(DM1,DM6,T3,T4,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17845-58010 |
3B..BU140..EUR;15BF,15BFT..BU212,222;14B,15BF,15BFT,3B..BU10#,110,14#,222..RHD;14B,15B#..BU102,111,112,142,21#,22#..(DM1,DM6,T3,T4,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58260 |
14B..BU211,212,221,222 |
1 | ||
| 17881-58260 |
14B..BU211,212,221,222 |
1 | ||
| 17881-58260 |
14B..BU211,221 |
1 | ||
| 17881-58260 |
14B..BU211,221 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90179-08065 | ||||
| 90179-08104 | ||||
| 90464-00082 | ||||
| 90467-0707222 | ||||
| 90480-22006 | ||||
| 90560-08018 | ||||
| 91631-60825 | ||||
| 91632-60828 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
| 91651-60825 | ||||
| 93385-15020 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1709 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9505-9908)14B..BU101..20T,30T ; (9505- )14B,15BF,3B..BU100,102,11#,14# ; (9908-
REAR SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58521 |
14B,15BF..BU21#,22#..T3..(ARL,GEN) |
1 | ||
| 17700-58520 |
14B,15BF..BU21#,22#..T3..(ARL,GEN,TAIW) |
1 | ||
| 17700-58522 |
15BF..BU212,222..T3;14B..BU211,221..T3..GEN |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU101..SA;14B..BU101..T3..ST..TS;14B,3B..BU100,141..T3..(ARL,SA);14B,15BF,15BFT,3B..BU102,11#,142..(DM1,DM6,T3,T4)..(ARL,GEN,TAIW) *H,L=170,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT..BU211,212,221,222..GEN,TAIW *H,L=250,MARK=#* |
1 | ||
| 90999-92002 |
15BF,15BFT..BU212,222..ARL,GEN,SA;14B,15BFT,15BFTE..BU21#,22#..GEN,TAIW *H,L=190,MARK=#* |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58300 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,212..RHD;14B,15BFT..BU102,111,112,142,21#,22#..(DM1,DM6,T3,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17705-58330 |
15BF,15BFT..BU212,222;14B,15BFT,15BFTE..BU21#,221,223..GEN |
1 | ||
| 17709E - BRACKET, AIR CLEANER INLET, NO.2 | ||||
| 53773-95401 |
3B..BU140..EUR;14B..BU101..T1..IV3;14B,3B..BU140,141..RHD;14B..BU101..T3..(GEN,SA);14B,15BF,15BFT..BU211,212..T3;14B,15B#,3B..BU100,102,11#,142,213,22#..DM1,DM6,T3,T4,TW1 |
1 | ||
| 53773-95401 |
14B..BU101..T1..IV3;14B,15BF..BU141,212..RHD..T3;14B,15B#..BU102,111,142,213,22#;14B,15BFT..BU101,211,212..T3..(GEN,SA) |
1 | ||
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
3B..BU140..EUR;14B,3B..BU140,141..RHD;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,142..DM1,DM6,T3 |
1 | ||
| 53764-95406 |
3B..BU140..EUR;14B..BU101..WT..CBU;14B..BU101..LHD..IV3;14B,3B..BU140,141..RHD..25T;14B,15B#,3B..BU100,102,11#,142..DM1,DM6,T3 |
1 | ||
| 53764-95404 |
14B..BU211,221..LHD..T3 REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 17709K - BRACKET, AIR CLEANER INLET, NO.4 | ||||
| 53765-95402 |
14B,15B#..BU21#,22#..T3 |
1 | ||
| 53765-95402 |
14B,15B#..BU21#,22#..T3 |
1 | ||
| 53765-37010 |
3B..BU140..EUR;14B,3B..BU140,141..RHD;14B..BU101..ST..IV3..TS;14B,15B#,3B..BU10#,11#,142..DM1,DM6,T3 |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56041 |
14B..BU101..T1..IV3;14B..BU101..T3..(GEN,SA);14B,15BF,15BFT,3B..BU100,102,11#,14#..(DM1,DM6,T3,T4)..(ARL,GEN,SA,TAIW) |
1 | ||
| 17730-56031 |
14B,15B#..BU21#,221..T3..(ARL,GEN) |
1 | ||
| 17730-56031 |
15BFT..BU212..CBU;14B..BU211..30T..SA;15BF..BU212..RHD..T3;15BFT..BU212..LHD..40T;14B..BU211,221..T3..GEN;15BF,15BFT..BU222..ARL,SA |
1 | ||
| 17730-56031 |
14B..BU211..T3..GEN;14B..BU211..30T..SA;15BF,15BFT..BU222..ARL,SA;14B,15BF,15BFT..BU212,221..T3 |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
15BFT..BU212..CBU;14B..BU211..30T..SA;14B..BU101..T1..IV3;15BF..BU212..RHD..T3;15BFT..BU212..LHD..40T;15BF,15BFT..BU222..ARL,SA;14B..BU101..(T3,TW2)..(GEN,SA);14B,15BF,3B..BU100,102,11#,14#..DM1,DM6,T3,T4;14B,3B..BU100,211,221..(T3,TW2)..(175T,30T,40T)..GEN |
1 | ||
| 96111-10880 |
15B#..BU212..T3;3B..BU100..175T..GEN;14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,11#,14#,211,221..(DM1,DM6,T3)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 96111-10880 |
14B..BU101..T1..IV3;14B..BU211..30T..SA;15BF,15BFT..BU222..ARL,SA;14B..BU101..(T3,TW2)..(GEN,SA);14B,15BF,15BFT..BU102,111,141,212,221..DM1,DM6,T3;14B,15BF,15BFT..BU142,211..T3..(20T,30T,40T)..(ARL,GEN) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58030 |
15BF..BU212;3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,222..RHD;14B,15BF..BU102,111,112,211,212,221,222..(DM1,DM6,T3,T4,TW1)..(GEN,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
3B..BU140..EUR;15BF,15BFT..BU212,222;14B,15BF,15BFT,3B..BU10#,110,14#,222..RHD;14B,15B#..BU102,111,112,142,21#,22#..(DM1,DM6,T3,T4,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58260 |
14B..BU211,212,221,222 |
1 | ||
| 17881-58260 |
14B..BU211,221 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58260 |
14B..BU211,212,221,222 |
1 | ||
| 17881-58260 |
14B..BU211,221 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
3B..BU100,140..(ARL,EUR)..IV3;14B,15BF,3B..BU102,11#,142..DM1,DM6,T3 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B,15BF..BU101,102,111,112,141,142,21#,22# ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU102,111,14#,211,212,221,222..DM1,DM6,T3,T4,TW1 ID=88,BLUE |
1 | ||
| 96111-10750 |
14B..BU101..SA;15BFT..BU212,222;14B..BU101..T3..ST..TS;14B,3B..BU100,140,141..T3..(ARL,EUR,SA);14B,15BF,15BFTE,3B..BU102,11#,142,213,223..DM1,DM6,T3,T4 ID=75,BLACK |
1 | ||
| 96111-10880 |
14B..BU101..GEN,SA;14B..BU101..(T2,TW2)..ARL;14B,15BF..BU111,14#,211,212,221,222 ID=88,BLUE |
1 | ||
| 96111-10930 |
14B,15BFT..BU211,212,221,222 ID=93,YELLOW |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-56060 |
14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,14#..T3 |
1 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 17885-56060 |
14B..BU101..ST..IV3..TS;14B,15BF,3B..BU10#,14#..T3 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95420 |
BU212..LHD..40T..TD;BU211,221..T3..GEN..(CBU,IV3) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU211,221 |
1 | ||
| 53097-95420 |
BU211..30T..SA;BU212..40T..TD;BU211,221..T3..GEN REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53097-37070 |
BU221;BU211..40T..SA;BU211..T3..GEN..(CBU,IV3) |
1 | ||
| 53299B - DUCT, COOL AIR INTAKE | ||||
| 53299-95401 |
BU141..RHD;BU211,212..T3;BU101..T1..IV3;BU101..T3..(GEN,SA);BU102,111,142,213,22# |
1 | ||
| 53299-95401 |
BU140..EUR;BU211,212..T3;BU101..T1..IV3;BU140,141..RHD;BU101..T3..(GEN,SA);BU100,102,11#,142,213,22#..DM1,DM6,T3,T4,TW1 |
1 | ||
| 53766A - BRACKET, AIR CLEANER INLET PIPE | ||||
| 53766-95402 |
BU211,221..LHD..T3 REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53955A - CUSHION, AIR CLEANER INLET NO.1 | ||||
| 53955-95402 |
BU142..ARL,EUR;BU101..T1..IV3;BU101..WT..(GEN,SA);BU101..20T..GEN..TB;BU100,102,11#,140,141..(DM1,DM6,T3,T4)..DSL..(ARL,EUR,GEN,TAIW) REAR SCHNORKEL W(PRECLEANER)TYPE |
1 | ||
| 53955-95402 |
BU211,212,221,222..T3..(ARL,GEN,SA) |
3 | ||
| 53955-95402 |
BU211,212,221,222..T3..(ARL,GEN,SA,TAIW) |
3 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08068 | ||||
| 90179-08104 | ||||
| 90387-10107 | ||||
| 90480-16021 | ||||
| 90480-22006 | ||||
| 90560-08044 | ||||
| 91621-60825 | ||||
| 91622-61025 | ||||
| 91631-60825 | ||||
| 91632-60828 | ||||
| 91651-40825 | ||||
| 93385-15020 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
