BU142L-TKMNXW3 (1996)
Toyota Dyna200

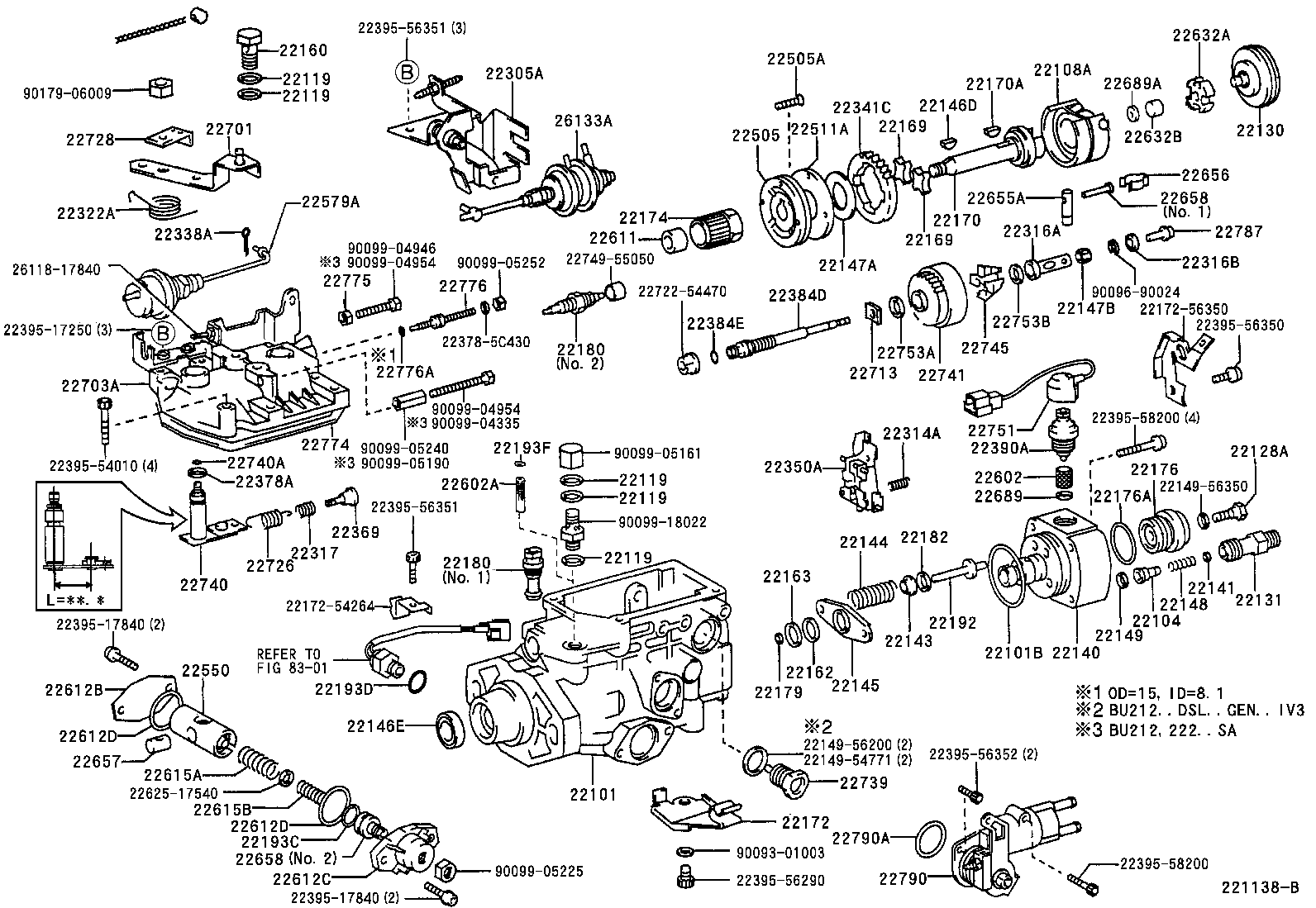

ILLUST NO. 1 OF 2(9505-0008)15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5C360 |
15BFT..BU102,142..RHD;15BFT..BU142,222..EUR |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 |
4 | ||
| 22104-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22128-56330 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22128-56330 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-17420 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22131-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,102,110,112,140,142,212,222 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22143-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212,222 |
2 | ||
| 22144-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22145-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-5B250 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22148-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# |
4 | ||
| 90099-01584 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149-56351 |
15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BFT..BU211,212..LHD..40T..IV3;14B,15BF..BU101,111,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22160-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,221 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B..BU111,141,211,221..RHD;14B,15BF..BU101,102,111,112,142,212..DM6,DM7,T1,T2,T3,TW1 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
14B,15B#..BU102,112,142,212,222 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22174-58270 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
15BFT..BU212;14B,15BF,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 22193-54772 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;14B,15BF,3B..BU100,101,110,111,14#,212,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54772 |
15BFT..BU222..SA;14B,3B..BU100,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;15BFT,3B..BU100,212,222..LHD..WT..GEN;14B,15BF,3B..BU101,102,11#,14#,212,221,222 |
1 | ||
| 22193-54772 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,212,221,222 |
1 | ||
| 22193-54772 |
14B,3B..BU100,111,141,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;14B,15BF,3B..BU101,102,110,112,140,142,212,221;14B,15BFT,3B..BU100,111,212,222..LHD..(DM6,T3)..WT |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 T=2.9 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54020 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=2.9 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.8 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.7 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 T=2.9 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.8 |
1 | ||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.7 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 NO.1 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 NO.1 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-17010 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=0.9 |
2 | ||
| 22182-17011 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.1 |
2 | ||
| 22187-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.25 |
8 | ||
| 22185-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.1 |
8 | ||
| 22182-54010 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=0.5 |
2 | ||
| 22183-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=1.9 |
8 | ||
| 22182-17012 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.3 |
2 | ||
| 22182-17013 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.4 |
2 | ||
| 22189-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.4 |
8 | ||
| 22188-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.3 |
8 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.2 |
8 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,140,142,212,221,222 T=0.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22184-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=2.0 |
8 | ||
| 22183-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=1.9 |
8 | ||
| 22182-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=1.8 |
8 | ||
| 22185-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.1 |
8 | ||
| 22186-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.2 |
8 | ||
| 22189-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.4 |
8 | ||
| 22187-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.25 |
8 | ||
| 22188-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.3 |
8 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;14B,15BF..BU101,111,142,212,221,222 T=0.5 |
2 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22192-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22193-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22193-5B320 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-55030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 MARK 45 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 K=0.1,L=8.2 |
1 | ||
| 22317-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 K=0.1,L=8.2 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22322-54020 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22384-54010 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF,3B..BU100,101,110,111,14#,211,221,222..ARL,EUR,GEN,SA |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A511 |
15BFT..BU222..SA;3B..BU100,140..GEN;15BFT..BU212..LHD..40T;14B,15BF..BU101,142,222;14B,15BF..BU111,141,211,212,221..RHD..(CBU,IV3) |
1 | ||
| 22390-6A510 |
15BFT..BU212..40T;14B,15BF,3B..BU10#,11#,14#,21#,22# 12V |
1 | ||
| 22390-6A511 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,142,212,222;14B..BU111,141,211,221..RHD..(CBU,IV3) |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,142,212,222;14B,15BF,3B..BU100,102,111,112,140,141,211,212,221,222..GEN,SA,TAIW |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-5C130 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22602-5B320 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22602-5B320 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22611-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17030 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA K=1.7,L=27.9 |
1 | ||
| 22615B - SPRING, TIMER INNER | ||||
| 22615-5C123 |
15BF..BU212..RHD;15BF..BU102,112,142,222 K=0.17,L=34.4 |
1 | ||
| 22615-5C121 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.15,L=34.6 |
1 | ||
| 22615-5C154 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.14,L=35.0 |
1 | ||
| 22615-5C122 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.16,L=34.6 |
1 | ||
| 22615-5C120 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,222 K=0.13,L=35.1 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22658-17840 |
14B..BU101..T1..CBU;15BFT..BU212,222..LHD..GEN;15BF..BU212..RHD..(ARL,GEN);14B..BU211..RHD..40T..GEN..(IV2,IV3);14B..BU101,141..RHD..(20T,30T)..GEN..IV3;15BF,3B..BU100,102,110,112,140,142,222..ARL,EUR,GEN HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22658-17840 |
14B..BU101..T1..CBU;15BFT..BU212,222..LHD..GEN;15BF..BU212..RHD..(ARL,GEN);14B..BU211..RHD..40T..GEN..(IV2,IV3);14B..BU101,141..RHD..(20T,30T)..GEN..IV3;15BF,3B..BU100,102,110,112,140,142,222..ARL,EUR,GEN HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17010 |
14B,15BF..BU102,112,142,212,222 MARK"383" |
1 | ||
| 22701-17011 |
14B,15BF..BU102,112,142,212,222 MARK"384" |
1 | ||
| 22701-17011 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"384" |
1 | ||
| 22701-56350 |
15BF..BU142,212,222;14B..BU101,102,111,112,141,211,212,221,222 MARK"247" |
1 | ||
| 22701-56350 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"247" |
1 | ||
| 22701-17010 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"383" |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.65 |
1 | ||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.25 |
1 | ||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.25 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.45 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.45 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.85 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.85 |
1 | ||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.65 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58470 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22726-58470 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22728-54010 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-5C090 |
15BF..BU142,212 L=16.3 |
1 | ||
| 22740-58480 |
14B..BU111,221..RHD..GEN;14B,15BF..BU102,112,142,212,222 L=17.5 |
1 | ||
| 22740-54010 |
15BF..BU142,212 L=15.5 |
1 | ||
| 22740-58480 |
15BF..BU102,112,142,212 L=17.5 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5C090 |
15B#..BU142,212 |
4 | ||
| 22745-5C090 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-58880 |
14B,15B#,3B..BU100,102,110,112,140,142,212,222 W(TACHOMETER) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 22193-54771 |
15BFT..BU212..LHD..40T;14B,15BF,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,SA |
1 | ||
| 90099-14047 |
15BFT..BU212;14B,15BF,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54771 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22193-54771 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-17141 |
15B#..BU142,212 L=4.6 |
1 | ||
| 22787-54026 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.3 |
1 | ||
| 22787-54029 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.6 |
1 | ||
| 22787-54028 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.5 |
1 | ||
| 22787-54033 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.0 |
1 | ||
| 22787-54027 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.4 |
1 | ||
| 22787-54032 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.9 |
1 | ||
| 22787-54030 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.7 |
1 | ||
| 22787-56352 |
15B#..BU142,212 L=6.1 |
1 | ||
| 22787-64642 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.1 |
1 | ||
| 22787-56350 |
15B#..BU142,212 L=5.9 |
1 | ||
| 22787-54035 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.5 |
1 | ||
| 22787-17145 |
15B#..BU142,212 L=5.1 |
1 | ||
| 22787-54034 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.3 |
1 | ||
| 22787-54036 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.7 |
1 | ||
| 22787-64680 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.2 |
1 | ||
| 22787-64640 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.1 |
1 | ||
| 22787-54029 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.6 |
1 | ||
| 22787-54027 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54026 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54030 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.7 |
1 | ||
| 22787-64643 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.2 |
1 | ||
| 22787-54032 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.9 |
1 | ||
| 22787-54034 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.3 |
1 | ||
| 22787-54036 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.7 |
1 | ||
| 22787-54028 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.5 |
1 | ||
| 22787-64643 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.2 |
1 | ||
| 22787-54035 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU141,211..LHD..T3 L=4.5 |
1 | ||
| 22787-64642 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.1 |
1 | ||
| 22787-64640 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.1 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54029 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.6 |
1 | ||
| 22787-64640 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.1 |
1 | ||
| 22787-64643 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.2 |
1 | ||
| 22787-54033 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.0 |
1 | ||
| 22787-54030 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.7 |
1 | ||
| 22787-64680 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.2 |
1 | ||
| 22787-54033 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.0 |
1 | ||
| 22787-54035 |
15BF..BU142,212;14B,15BFT..BU141,212..LHD..(25T,40T) L=4.5 |
1 | ||
| 22787-64680 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.2 |
1 | ||
| 22787-54036 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.7 |
1 | ||
| 22787-54033 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.0 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.4 |
1 | ||
| 22787-54026 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54028 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.5 |
1 | ||
| 22787-54029 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.6 |
1 | ||
| 22787-54032 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.9 |
1 | ||
| 22787-64640 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.1 |
1 | ||
| 22787-54034 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.3 |
1 | ||
| 22787-64643 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.2 |
1 | ||
| 22787-64680 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.2 |
1 | ||
| 22787-64642 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.1 |
1 | ||
| 22787-54027 |
15BF..BU212..RHD;15BFT..BU222..SA;14B..BU211..LHD..30T;14B..BU101..LHD..ST..TS;14B..BU211..LHD..40T..CBU;15BF,3B..BU100,110,140,142,222;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221..LHD..(DM1,T3)..(20T,25T,40T) L=3.4 |
1 | ||
| 22787-64641 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF,3B..BU100,101,110,111,14#,211,221,222 L=3.0 |
1 | ||
| 22787-56350 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=5.9 |
1 | ||
| 22787-64643 |
15BF..BU212..RHD;15BFT..BU222..SA;14B..BU211..LHD..30T;14B..BU101..LHD..ST..TS;14B..BU211..LHD..40T..CBU;15BF,3B..BU100,110,140,142,222;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221..LHD..(DM1,T3)..(20T,25T,40T) L=3.2 |
1 | ||
| 22787-17145 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=5.1 |
1 | ||
| 22787-56352 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=6.1 |
1 | ||
| 22787-64641 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 L=3.0 |
1 | ||
| 22787-54031 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 L=3.8 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF..BU142,212;14B,15B#..BU102,111,112,141,21#,222..LHD..(DM1,DM7,T2,T3) |
1 | ||
| 22193-17840 |
14B..BU101..ARL;15BF..BU212..RHD;14B..BU101..175T..GEN;15BF..BU102,112,142,222;14B,15BFT..BU211,212,222..LHD..T3..GEN |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-56350 | ||||
| 22172-54264 | ||||
| 22172-56350 | ||||
| 22378-5C430 | ||||
| 22395-17250 | ||||
| 22395-17840 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-17540 | ||||
| 22722-54470 | ||||
| 22749-55050 | ||||
| 26118-17840 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04335 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05190 | ||||
| 90099-05225 | ||||
| 90099-05240 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 8301 | ||||

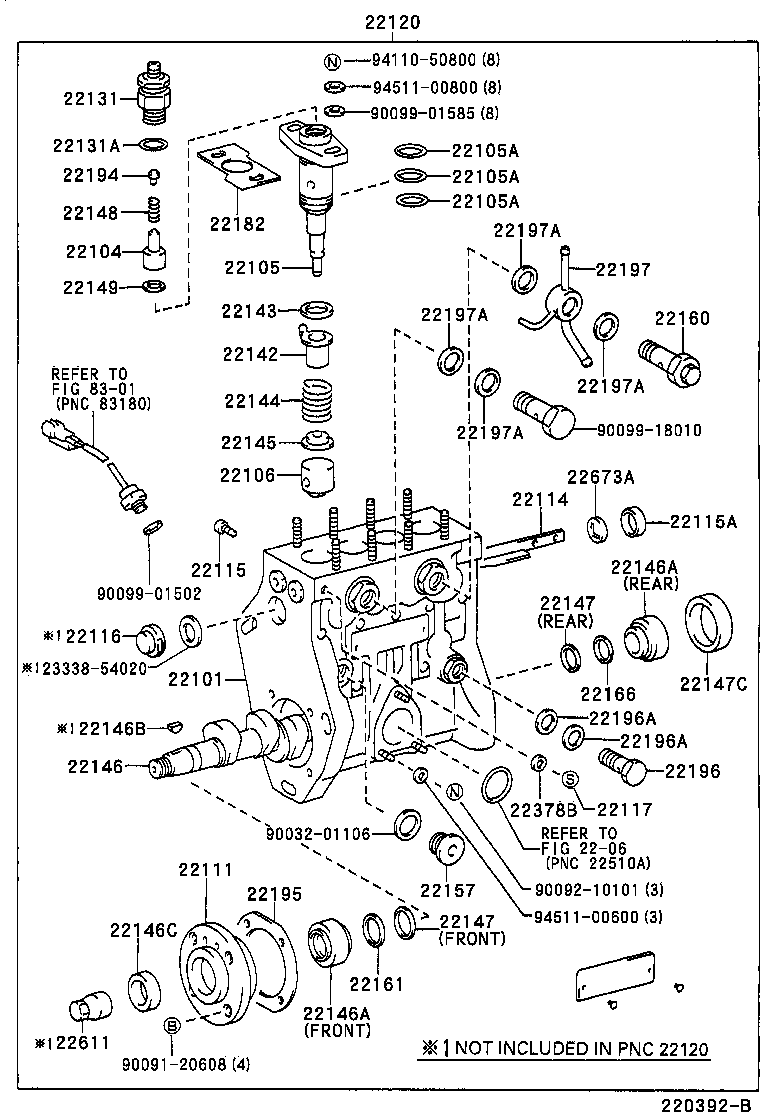

ILLUST NO. 2 OF 2(9605- )15BFT..BU102,142 ; (9703- )15BFT..BU212,222..RHD..GEN ; (9808- )15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5C360 |
15BFT..BU102,142..RHD;15BFT..BU142,222..EUR |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 |
4 | ||
| 22104-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22105 - ELEMENT SUB-ASSY, INJECTION PUMP | ||||
| 22105-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 22105-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| 22193-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
12 | ||
| 22193-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
12 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| 22193-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
12 | ||
| 22193-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
12 | ||
| 22105A - RING, O(FOR PUMP ELEMENT) | ||||
| 22193-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
12 | ||
| 22193-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
12 | ||
| 22106 - TAPPET SUB-ASSY, INJECTION PUMP | ||||
| 22106-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 22106-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22111 - COVER, INJECTION PUMP CAMSHAFT BEARING | ||||
| 22111-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22111-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22114 - RACK, CONTROL | ||||
| 22114-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22114-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22115 - SCREW, RACK GUIDE | ||||
| 22115-78140 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22115-78140 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22115A - BUSH, SCREW | ||||
| 22115-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22115-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22116 - COVER, CONTROL RACK | ||||
| 22116-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22116-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22117 - SCREW, AIR BLEEDER | ||||
| 22117-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
2 | ||
| 22117-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
2 | ||
| 22120 - BODY ASSY,INJECTION | ||||
| 22120-5C360 |
15BFT..BU102,142..RHD;15BFT..BU142,222..EUR |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-17420 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22131-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22131A - RING, O(FOR DELIVERY VALVE HOLDER) | ||||
| 90099-14070 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 90099-14070 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 22142 - SLEEVE, PLUNGER CONTROL | ||||
| 22142-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 22142-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22143-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212,222 |
2 | ||
| 22144-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22145-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22146 - CAMSHAFT, INJECTION PUMP | ||||
| 22146-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22146-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10218 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU REAR |
1 | ||
| 90099-10217 |
15BFT..BU142;15BFT..BU212,222..RHD FRONT |
1 | ||
| 90099-10218 |
15BFT..BU142;15BFT..BU212,222..RHD REAR |
1 | ||
| 90099-10217 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU FRONT |
1 | ||
| 22146A - BEARING(FOR INJECTION CAMSHAFT) | ||||
| 90099-10218 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU REAR |
1 | ||
| 90099-10217 |
15BFT..BU142;15BFT..BU212,222..RHD FRONT |
1 | ||
| 90099-10218 |
15BFT..BU142;15BFT..BU212,222..RHD REAR |
1 | ||
| 90099-10217 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU FRONT |
1 | ||
| 22146B - KEY(FOR INJECTION PUMP CAMSHAFT) | ||||
| 22353-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22353-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22146C - SEAL, OIL, INJECTION PUMP CAMSHAFT | ||||
| 90099-15038 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 90099-15038 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU FRONT |
1 | ||
| 22147-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD FRONT |
1 | ||
| 22147-78030 |
15BFT..BU142;15BFT..BU212,222..RHD REAR |
1 | ||
| 22147-78030 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU REAR |
1 | ||
| 22147 - RING, CAMSHAFT ADJUST | ||||
| 22147-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU FRONT |
1 | ||
| 22147-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD FRONT |
1 | ||
| 22147-78030 |
15BFT..BU142;15BFT..BU212,222..RHD REAR |
1 | ||
| 22147-78030 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU REAR |
1 | ||
| 22147C - RETAINER, BEARING | ||||
| 22147-5C360 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22147-5C360 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-5B250 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22148-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# |
4 | ||
| 90099-01584 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149-56351 |
15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BFT..BU211,212..LHD..40T..IV3;14B,15BF..BU101,111,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
4 | ||
| 22157 - PLUG, INJECTION PUMP FELT PLATE | ||||
| 22157-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22157-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22160-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22161 - PLATE, CAMSHAFT SHIM | ||||
| 22161-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.10 |
3 | ||
| 22163-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.14 |
3 | ||
| 22164-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.16 |
3 | ||
| 22163-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.14 |
3 | ||
| 22161-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.10 |
3 | ||
| 22162-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.12 |
3 | ||
| 22164-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.16 |
3 | ||
| 22165-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.18 |
3 | ||
| 22166-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.50 |
3 | ||
| 22165-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.18 |
3 | ||
| 22166-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.50 |
3 | ||
| 22162-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.12 |
3 | ||
| 22166 - PLATE, CAMSHAFT SHIM | ||||
| 22166-78034 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.30 |
3 | ||
| 22166-78032 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.10 |
3 | ||
| 22166-78144 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.18 |
3 | ||
| 22166-78033 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.15 |
3 | ||
| 22166-78143 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.14 |
3 | ||
| 22166-78142 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.12 |
3 | ||
| 22166-78033 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.15 |
3 | ||
| 22166-78032 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.10 |
3 | ||
| 22166-78142 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.12 |
3 | ||
| 22166-78034 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.30 |
3 | ||
| 22166-78035 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.50 |
3 | ||
| 22166-78035 |
15BFT..BU142;15BFT..BU212,222..RHD T=0.50 |
3 | ||
| 22166-78143 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.14 |
3 | ||
| 22166-78144 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=0.18 |
3 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-17010 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=0.9 |
2 | ||
| 22182-17011 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.1 |
2 | ||
| 22187-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.25 |
8 | ||
| 22185-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.1 |
8 | ||
| 22182-54010 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=0.5 |
2 | ||
| 22183-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=1.9 |
8 | ||
| 22182-17012 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.3 |
2 | ||
| 22182-17013 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.4 |
2 | ||
| 22189-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.4 |
8 | ||
| 22188-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.3 |
8 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.2 |
8 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,140,142,212,221,222 T=0.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22184-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=2.0 |
8 | ||
| 22183-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=1.9 |
8 | ||
| 22182-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=1.8 |
8 | ||
| 22185-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.1 |
8 | ||
| 22186-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.2 |
8 | ||
| 22189-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.4 |
8 | ||
| 22187-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.25 |
8 | ||
| 22188-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.3 |
8 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;14B,15BF..BU101,111,142,212,221,222 T=0.5 |
2 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22194 - STOPPER, DELIVERY VALVE | ||||
| 22194-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 22194-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22195 - GASKET, BEARING COVER | ||||
| 22195-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22195-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22196 - SCREW, FUEL INLET FOLLOW | ||||
| 90099-18005 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 90099-18005 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| 90201-10108 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
2 | ||
| 90201-10108 |
15BFT..BU142;15BFT..BU212,222..RHD |
2 | ||
| 22196A - WASHER(FOR INLET FOLLOW SCREW) | ||||
| 90201-10108 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
2 | ||
| 90201-10108 |
15BFT..BU142;15BFT..BU212,222..RHD |
2 | ||
| 22197 - NIPPLE, OVER FLOW | ||||
| 22197-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
1 | ||
| 22197-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
1 | ||
| 22197A - WASHER(FOR OVER FLOW NIPPLE) | ||||
| 94712-77121 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 94712-77121 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22197A - WASHER(FOR OVER FLOW NIPPLE) | ||||
| 94712-77121 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 94712-77121 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22197A - WASHER(FOR OVER FLOW NIPPLE) | ||||
| 94712-77121 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 94712-77121 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22197A - WASHER(FOR OVER FLOW NIPPLE) | ||||
| 94712-77121 |
15BFT..BU142;15BFT..BU212,222..RHD |
4 | ||
| 94712-77121 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
4 | ||
| 22378B - WASHER, DRAIN SCREW | ||||
| 22113-77090 |
15BFT..BU142,222..EUR;15BFT..BU102,142,212..RHD..IV3 |
2 | ||
| 22113-77090 |
15BFT..BU142 |
2 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22611-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22673A - BUSHING, CONTROL RACK | ||||
| 22673-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU |
2 | ||
| 22673-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD |
2 | ||
| Common parts | ||||
| 23338-54020 | ||||
| 90032-01106 | ||||
| 90091-20608 | ||||
| 90092-10101 | ||||
| 90099-01502 | ||||
| 90099-01585 | ||||
| 90099-18010 | ||||
| 94110-50800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 2206 | ||||
| 8301 | ||||
ILLUST NO. 1 OF 2(0008- )15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5C360 |
15BFT..BU102,142..RHD;15BFT..BU142,222..EUR |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 |
4 | ||
| 22104-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22119-6A210 |
15BF..BU142,212 T=3.1 |
1 | ||
| 90201-12109 |
14B..BU141..LHD;15BF..BU142,212 ALGERIA SPEC,T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22128-56330 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22128-56330 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-17420 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22131-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,102,110,112,140,142,212,222 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22143-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212,222 |
2 | ||
| 22144-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22145-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-5B250 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22148-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# |
4 | ||
| 90099-01584 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
4 | ||
| 22149-56351 |
15BFT..BU222..SA;14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B,15BFT..BU211,212..LHD..40T..IV3;14B,15BF..BU101,111,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B..BU211..CBU,IV2;14B..BU211..30T..IV3;14B..BU211..LHD..40T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,14#,212,221,222 |
4 | ||
| 22149-56351 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22160-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,221 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B..BU111,141,211,221..RHD;14B,15BF..BU101,102,111,112,142,212..DM6,DM7,T1,T2,T3,TW1 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
14B,15B#..BU102,112,142,212,222 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22174-58270 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
15BFT..BU212;14B,15BF,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 22193-54772 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;14B,15BF,3B..BU100,101,110,111,14#,212,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54772 |
15BFT..BU222..SA;14B,3B..BU100,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;15BFT,3B..BU100,212,222..LHD..WT..GEN;14B,15BF,3B..BU101,102,11#,14#,212,221,222 |
1 | ||
| 22193-54772 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,212,221,222 |
1 | ||
| 22193-54772 |
14B,3B..BU100,111,141,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;14B,15BF,3B..BU101,102,110,112,140,142,212,221;14B,15BFT,3B..BU100,111,212,222..LHD..(DM6,T3)..WT |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 T=2.9 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54020 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=2.9 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.8 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.7 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 T=2.9 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.8 |
1 | ||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=2.7 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 NO.1 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 NO.1 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-17010 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=0.9 |
2 | ||
| 22182-17011 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.1 |
2 | ||
| 22187-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.25 |
8 | ||
| 22185-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.1 |
8 | ||
| 22182-54010 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=0.5 |
2 | ||
| 22183-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=1.9 |
8 | ||
| 22182-17012 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.3 |
2 | ||
| 22182-17013 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.4 |
2 | ||
| 22189-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.4 |
8 | ||
| 22188-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.3 |
8 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-5C350 |
15BFT..BU142;15BFT..BU212,222..RHD T=2.2 |
8 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;15BFT..BU212,222..LHD..GEN;14B,15BFT..BU211,222..40T..SA;14B,15BF,3B..BU10#,11#,140,142,212,221,222 T=0.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22184-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=2.0 |
8 | ||
| 22183-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=1.9 |
8 | ||
| 22182-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN T=1.8 |
8 | ||
| 22185-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.1 |
8 | ||
| 22186-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.2 |
8 | ||
| 22189-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.4 |
8 | ||
| 22187-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.25 |
8 | ||
| 22188-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212..25T,40T;15BFT..BU222..RHD..GEN;15BFT..BU212..30T..CBU T=2.3 |
8 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22182-54010 |
14B..BU141..RHD;14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD;14B..BU211..RHD..CBU;14B..BU211..RHD..30T..IV3;14B,15BF..BU101,111,142,212,221,222 T=0.5 |
2 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22192-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22193-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22193-5B320 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-55030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 MARK 45 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 K=0.1,L=8.2 |
1 | ||
| 22317-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 K=0.1,L=8.2 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22322-54020 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22384-54010 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF,3B..BU100,101,110,111,14#,211,221,222..ARL,EUR,GEN,SA |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A511 |
15BFT..BU222..SA;3B..BU100,140..GEN;15BFT..BU212..LHD..40T;14B,15BF..BU101,142,222;14B,15BF..BU111,141,211,212,221..RHD..(CBU,IV3) |
1 | ||
| 22390-6A510 |
15BFT..BU212..40T;14B,15BF,3B..BU10#,11#,14#,21#,22# 12V |
1 | ||
| 22390-6A511 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,142,212,222;14B..BU111,141,211,221..RHD..(CBU,IV3) |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,142,212,222;14B,15BF,3B..BU100,102,111,112,140,141,211,212,221,222..GEN,SA,TAIW |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-5C130 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22602-5B320 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..DM1,DM7,T1,T2,T3,T4,TW1,TW2 |
1 | ||
| 22602-5B320 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22611-5C350 |
15BFT..BU102,142;15BFT..BU222..EUR;15BFT..BU212,222..RHD..GEN |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17030 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA K=1.7,L=27.9 |
1 | ||
| 22615B - SPRING, TIMER INNER | ||||
| 22615-5C123 |
15BF..BU212..RHD;15BF..BU102,112,142,222 K=0.17,L=34.4 |
1 | ||
| 22615-5C121 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.15,L=34.6 |
1 | ||
| 22615-5C154 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.14,L=35.0 |
1 | ||
| 22615-5C122 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.16,L=34.6 |
1 | ||
| 22615-5C120 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,222 K=0.13,L=35.1 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22658-17840 |
14B..BU101..T1..CBU;15BFT..BU212,222..LHD..GEN;15BF..BU212..RHD..(ARL,GEN);14B..BU211..RHD..40T..GEN..(IV2,IV3);14B..BU101,141..RHD..(20T,30T)..GEN..IV3;15BF,3B..BU100,102,110,112,140,142,222..ARL,EUR,GEN HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22658-17840 |
14B..BU101..T1..CBU;15BFT..BU212,222..LHD..GEN;15BF..BU212..RHD..(ARL,GEN);14B..BU211..RHD..40T..GEN..(IV2,IV3);14B..BU101,141..RHD..(20T,30T)..GEN..IV3;15BF,3B..BU100,102,110,112,140,142,222..ARL,EUR,GEN HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17010 |
14B,15BF..BU102,112,142,212,222 MARK"383" |
1 | ||
| 22701-17011 |
14B,15BF..BU102,112,142,212,222 MARK"384" |
1 | ||
| 22701-17011 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"384" |
1 | ||
| 22701-56350 |
15BF..BU142,212,222;14B..BU101,102,111,112,141,211,212,221,222 MARK"247" |
1 | ||
| 22701-56350 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"247" |
1 | ||
| 22701-17010 |
14B,15BF..BU101,111,14#,211,212,221,222 MARK"383" |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.65 |
1 | ||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.25 |
1 | ||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.25 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.45 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.45 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.85 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.85 |
1 | ||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 T=1.65 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58470 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22726-58470 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22728-54010 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
2 | ||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-5C090 |
15BF..BU142,212 L=16.3 |
1 | ||
| 22740-58480 |
14B..BU111,221..RHD..GEN;14B,15BF..BU102,112,142,212,222 L=17.5 |
1 | ||
| 22740-54010 |
15BF..BU142,212 L=15.5 |
1 | ||
| 22740-58480 |
15BF..BU102,112,142,212 L=17.5 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5C090 |
15B#..BU142,212 |
4 | ||
| 22745-5C090 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222..CBU,IV3 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-58880 |
14B,15B#,3B..BU100,102,110,112,140,142,212,222 W(TACHOMETER) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 22193-54771 |
15BFT..BU212..LHD..40T;14B,15BF,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,SA |
1 | ||
| 90099-14047 |
15BFT..BU212;14B,15BF,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54771 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22193-54771 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-17141 |
15B#..BU142,212 L=4.6 |
1 | ||
| 22787-54026 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.3 |
1 | ||
| 22787-54029 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.6 |
1 | ||
| 22787-54028 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.5 |
1 | ||
| 22787-54033 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.0 |
1 | ||
| 22787-54027 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.4 |
1 | ||
| 22787-54032 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.9 |
1 | ||
| 22787-54030 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.7 |
1 | ||
| 22787-56352 |
15B#..BU142,212 L=6.1 |
1 | ||
| 22787-64642 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.1 |
1 | ||
| 22787-56350 |
15B#..BU142,212 L=5.9 |
1 | ||
| 22787-54035 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.5 |
1 | ||
| 22787-17145 |
15B#..BU142,212 L=5.1 |
1 | ||
| 22787-54034 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.3 |
1 | ||
| 22787-54036 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.7 |
1 | ||
| 22787-64680 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.2 |
1 | ||
| 22787-64640 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.1 |
1 | ||
| 22787-54029 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.6 |
1 | ||
| 22787-54027 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54026 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54030 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.7 |
1 | ||
| 22787-64643 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.2 |
1 | ||
| 22787-54032 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.9 |
1 | ||
| 22787-54034 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.3 |
1 | ||
| 22787-54036 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.7 |
1 | ||
| 22787-54028 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.5 |
1 | ||
| 22787-64643 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.2 |
1 | ||
| 22787-54035 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU141,211..LHD..T3 L=4.5 |
1 | ||
| 22787-64642 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=3.1 |
1 | ||
| 22787-64640 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.1 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54029 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.6 |
1 | ||
| 22787-64640 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.1 |
1 | ||
| 22787-64643 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.2 |
1 | ||
| 22787-54033 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.0 |
1 | ||
| 22787-54030 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.7 |
1 | ||
| 22787-64680 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.2 |
1 | ||
| 22787-54033 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.0 |
1 | ||
| 22787-54035 |
15BF..BU142,212;14B,15BFT..BU141,212..LHD..(25T,40T) L=4.5 |
1 | ||
| 22787-64680 |
15BF..BU142,212;14B..BU211..LHD..T3;15BFT..BU212..LHD..40T L=4.2 |
1 | ||
| 22787-54036 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.7 |
1 | ||
| 22787-54033 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.0 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.4 |
1 | ||
| 22787-54026 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54028 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.5 |
1 | ||
| 22787-54029 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.6 |
1 | ||
| 22787-54032 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.9 |
1 | ||
| 22787-64640 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.1 |
1 | ||
| 22787-54034 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=4.3 |
1 | ||
| 22787-64643 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.2 |
1 | ||
| 22787-64680 |
15BF..BU142,212;15BFT..BU212..LHD..40T;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=4.2 |
1 | ||
| 22787-64642 |
15BF..BU142,212;15BFT..BU212..LHD..40T L=3.1 |
1 | ||
| 22787-54027 |
15BF..BU212..RHD;15BFT..BU222..SA;14B..BU211..LHD..30T;14B..BU101..LHD..ST..TS;14B..BU211..LHD..40T..CBU;15BF,3B..BU100,110,140,142,222;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221..LHD..(DM1,T3)..(20T,25T,40T) L=3.4 |
1 | ||
| 22787-64641 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF,3B..BU100,101,110,111,14#,211,221,222 L=3.0 |
1 | ||
| 22787-56350 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=5.9 |
1 | ||
| 22787-64643 |
15BF..BU212..RHD;15BFT..BU222..SA;14B..BU211..LHD..30T;14B..BU101..LHD..ST..TS;14B..BU211..LHD..40T..CBU;15BF,3B..BU100,110,140,142,222;14B..BU211..40T..GEN..(IV2,IV3);14B,15BFT..BU111,141,212,221..LHD..(DM1,T3)..(20T,25T,40T) L=3.2 |
1 | ||
| 22787-17145 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=5.1 |
1 | ||
| 22787-56352 |
14B..BU211..TW1;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,111,142,221;14B..BU141,211..RHD..(CBU,IV3);15BF..BU212,222..RHD..(ARL,GEN) L=6.1 |
1 | ||
| 22787-64641 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 L=3.0 |
1 | ||
| 22787-54031 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 L=3.8 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF..BU142,212;14B,15B#..BU102,111,112,141,21#,222..LHD..(DM1,DM7,T2,T3) |
1 | ||
| 22193-17840 |
14B..BU101..ARL;15BF..BU212..RHD;14B..BU101..175T..GEN;15BF..BU102,112,142,222;14B,15BFT..BU211,212,222..LHD..T3..GEN |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-56350 | ||||
| 22172-54264 | ||||
| 22172-56350 | ||||
| 22378-5C430 | ||||
| 22395-17250 | ||||
| 22395-17840 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-17540 | ||||
| 22722-54470 | ||||
| 22749-55050 | ||||
| 26118-17840 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04335 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05190 | ||||
| 90099-05225 | ||||
| 90099-05240 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
