BU141R-TKMNS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

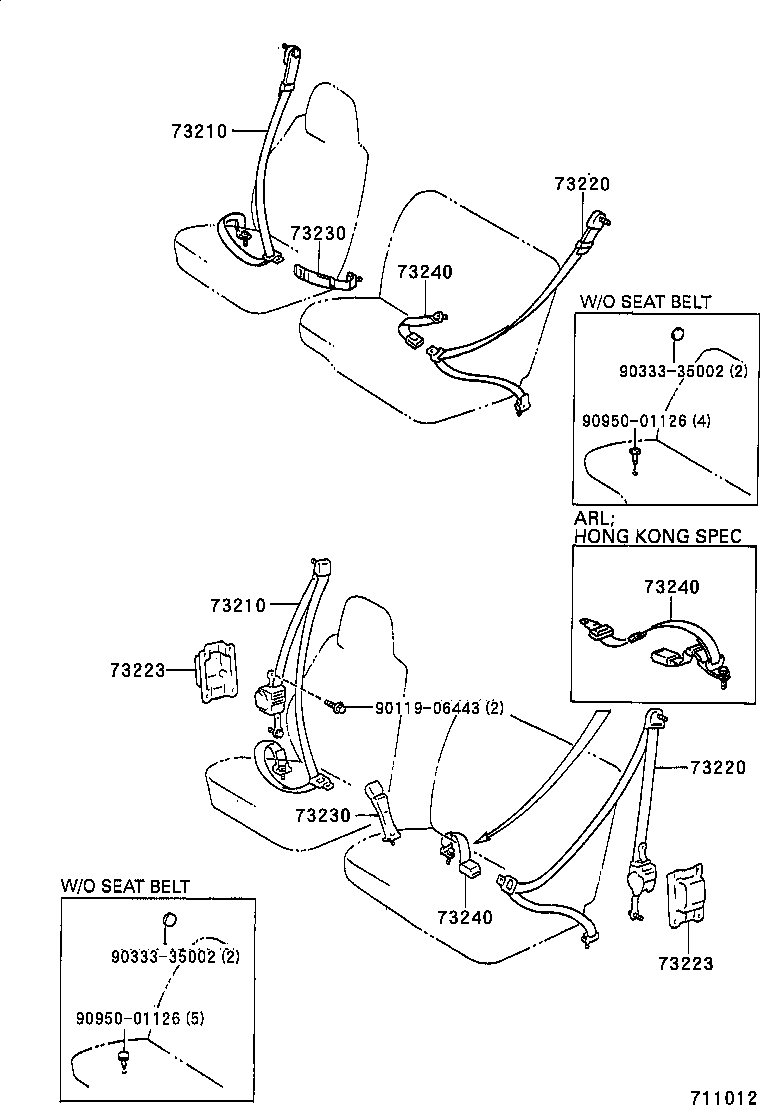

ILLUST NO. 1 OF 2(9505- )RHD

Click highlighted areas on diagram

diagram 73210 73210 73220 73220 73223 73223 73230 73230 73240 73240 73240 9011906443 9033335002 9033335002 9095001126 9095001126
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A00B1

BU101..CBU;BU140,141..RHD;BU101..ST..IV3;BU102,111,112..IV3;BU101..LHD..WT..IV3

GRAY,TRIM1#

 1
73210-37090B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-95A00B1

BU101..CBU;BU140,141..RHD;BU101..ST..IV3;BU102,111,112..IV3;BU101..LHD..WT..IV3

GRAY,TRIM1#

 1
73210-37090B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A00B1

BU101..CBU;BU140,141..RHD;BU101..ST..IV3;BU102,111,112..IV3;BU101..LHD..WT..IV3

GRAY,TRIM1#

 1
73210-37090B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-95A00B1

BU101..CBU;BU140,141..RHD;BU101..ST..IV3;BU102,111,112..IV3;BU101..LHD..WT..IV3

GRAY,TRIM1#

 1
73210-37090B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95422B1

BU140,141..RHD;BU101..ST..IV3..TS;BU101,211..RHD..(CBU,IV2);BU211..RHD..30T..GEN..IV3

GRAY,TRIM1#

 1
73230-95422B1

BU101..T1..IV3;BU102,14#..RHD..GEN;BU212..RHD..GEN..IV3;BU211..RHD..30T..GEN..IV3;BU101,211..RHD..GEN..(CBU,IV2)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-95422B1

BU140,141..RHD;BU101..ST..IV3..TS;BU101,211..RHD..(CBU,IV2);BU211..RHD..30T..GEN..IV3

GRAY,TRIM1#

 1
73230-95422B1

BU101..T1..IV3;BU102,14#..RHD..GEN;BU212..RHD..GEN..IV3;BU211..RHD..30T..GEN..IV3;BU101,211..RHD..GEN..(CBU,IV2)

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B2

BU140,141..RHD;BU101..RHD..CBU;BU101..ST..IV3..TS

BLUISH GRAY,TRIM1#

 1
73240-37120B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B2

BU140,141..RHD;BU101..RHD..CBU;BU101..ST..IV3..TS

BLUISH GRAY,TRIM1#

 1
73240-37120B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-95425B2

BU140,141..RHD;BU101..RHD..CBU;BU101..ST..IV3..TS

BLUISH GRAY,TRIM1#

 1
73240-37120B0

BU142..25T..GEN;BU100,101,111,140,141..GEN

W(*NLR),BLUISH GRAY,TRIM1#

 1
Common parts
90119-06443
90333-35002
90950-01126

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 73310 73320 73330 73330 73340 73340 73350 73350 73350 73350 73360 73370 73380 73390 9011906443 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002
Part # Description Qty Price
Common parts
90119-06443
90333-35002
